AVU65W-ANXGB (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

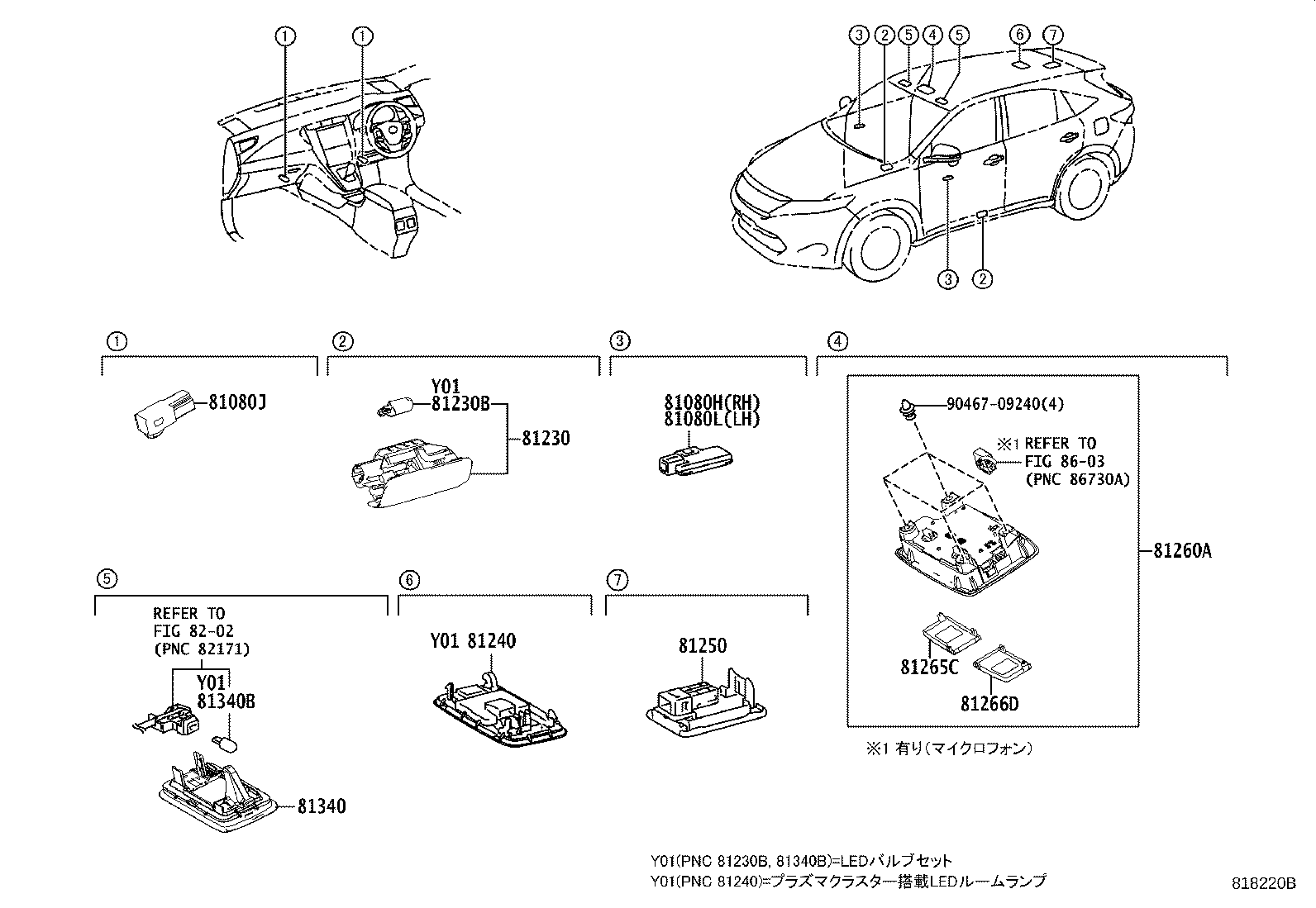

Click highlighted areas on diagram

diagram 81080H 81080J 81080L 81230 81230B 81240 81250 81260A 81265C 81266D 81340 81340B 8202 8603 9046709240
Part # Description Qty Price
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-35010

AVU65,ZSU6#..ELEGC,PREM

 1
81080-35010

ASU6#,AVU65,ZSU6#

 1
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-12080

AVU65,ZSU6#..ELEGC,PREM

 2
81080-33280

ASU6#,AVU65,ZSU6#

 2
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-35020

ASU6#,AVU65,ZSU6#

 1
81080-35020

AVU65,ZSU6#..ELEGC,PREM

 1
81230 - LAMP ASSY, COURTESY
81230-30200

AVU65,ZSU6#

 2
81230-30200

ASU6#,AVU65,ZSU6#

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ASU6#,AVU65,ZSU6#

12V 5W

 2
90981-12010

AVU65,ZSU6#

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-48020C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
81240-48030C0

AVU65,ZSU6#..ELEGC,PREM

BLACK,TRIM2#,4#

 1
81250 - LAMP ASSY, ROOM, NO.2
81360-48160

ASU6#,AVU65,ZSU6#

 1
81250-48010

AVU65,ZSU6#

 1
81260A - LAMP ASSY, MAP
81260-48A40C0

AVU65,ZSU6#..PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM0#,1#,2#,4#

 1
81260-48A30C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
81260-48A50C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,1#,2#,4#

 1
81260-48A60C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM0#,1#,2#,4#

 1
81260-48810C0

AVU65,ZSU6#..PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM2#,4#

 1
81260-48810C0

AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ,BLACK,TRIM2#,4#

 1
81260-48630C0

AVU65,ZSU6#..ELEGC,PREM

BLACK,TRIM2#,4#

 1
81260-48820C0

AVU65,ZSU6#..ELEGC,PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM2#,4#

 1
81260-48830C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM2#,4#

 1
81260-48830C0

AVU65,ZSU6#..ELEGC,PREM

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ,BLACK,TRIM2#,4#

 1
81265C - LENS, MAP LAMP, NO.1
81391-48010

ASU6#,AVU65,ZSU6#

 1
81391-48010

AVU65,ZSU6#

 1
81266D - LENS, MAP LAMP, NO.2
81392-48010

AVU65,ZSU6#

 1
81392-48010

ASU6#,AVU65,ZSU6#

 1
81340 - LAMP ASSY, VANITY
81340-30110

ASU6#,AVU65,ZSU6#

 2
81340-30110

AVU65,ZSU6#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AVU65,ZSU6#

12V 8W

 2
90981-11062

ASU6#,AVU65,ZSU6#

12V 8W

 2
Common parts
90467-09240
Linked diagrams
8202
8603
