AVU65W-ANXGB (2014)
Toyota Harrier/Hybrid
Production
Jan 2014
-
May 2017
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

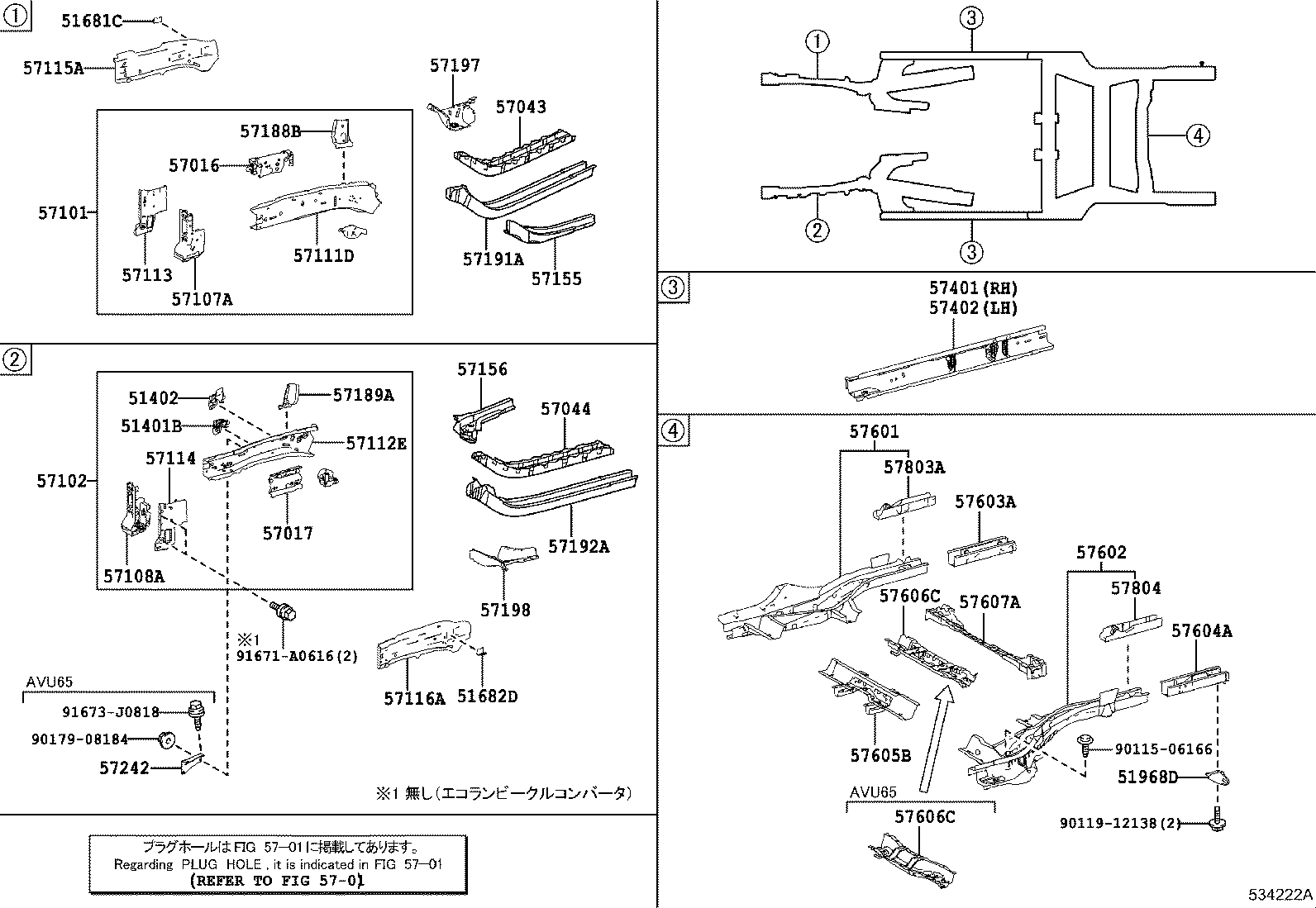

(1401-1405)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-42020 |
AVU65,ZSU6# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-42010 |
AVU65,ZSU6# |
1 | ||
| 51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-12080 |
AVU65,ZSU6# |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-12080 |
AVU65,ZSU6# |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-42010 |
AVU65,ZSU6# |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
AVU65,ZSU6# |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
AVU65,ZSU6# |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-42010 |
AVU65,ZSU6# |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-42010 |
AVU65,ZSU6# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57111-42900 |
AVU65,ZSU6# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57112-42900 |
AVU65,ZSU6# |
1 | ||
| 57112-12904 |
AVU65,ZSU6# |
1 | ||
| 57112-12906 |
AVU65,ZSU6# |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-42030 |
AVU65,ZSU6# |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-42030 |
AVU65,ZSU6# |
1 | ||
| 57108-42031 |
AVU65,ZSU6# |
1 | ||
| 57111D - MEMBER, FRONT SIDE, INNER RH | ||||
| 57111-12230 |
AVU65,ZSU6# |
1 | ||
| 57112E - MEMBER, FRONT SIDE, INNER LH | ||||
| 57112-12190 |
AVU65,ZSU6# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-42050 |
AVU65,ZSU6# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-42051 |
AVU65,ZSU6# |
1 | ||
| 57114-78010 |
AVU65,ZSU6# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
AVU65,ZSU6# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12091 |
AVU65,ZSU6# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57053-42011 |
AVU65,ZSU6# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57054-42010 |
AVU65,ZSU6# |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-42030 |
AVU65,ZSU6# |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-42020 |
AVU65,ZSU6# |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-42060 |
AVU65,ZSU6# |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-42060 |
AVU65,ZSU6# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-42060 |
AVU65,ZSU6# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-42060 |
AVU65,ZSU6# |
1 | ||
| 57242 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH | ||||
| 57242-48010 |
AVU65 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-42150 |
AVU65,ZSU6# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-42150 |
AVU65,ZSU6# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-48100 |
AVU65 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-48100 |
AVU65 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-42021 |
AVU65,ZSU6# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-42020 |
AVU65,ZSU6# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-48090 |
AVU65 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-48070 |
AVU65 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-48070 |
AVU65 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-48030 |
AVU65 |
1 | ||
| 57607-78020 |
AVU65 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-42010 |
AVU65,ZSU6# |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-42010 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90119-12138 | ||||
| 90179-08184 | ||||
| 91671-A0616 | ||||
| 91673-J0818 | ||||
| Linked diagrams | ||||
| 5701 | ||||

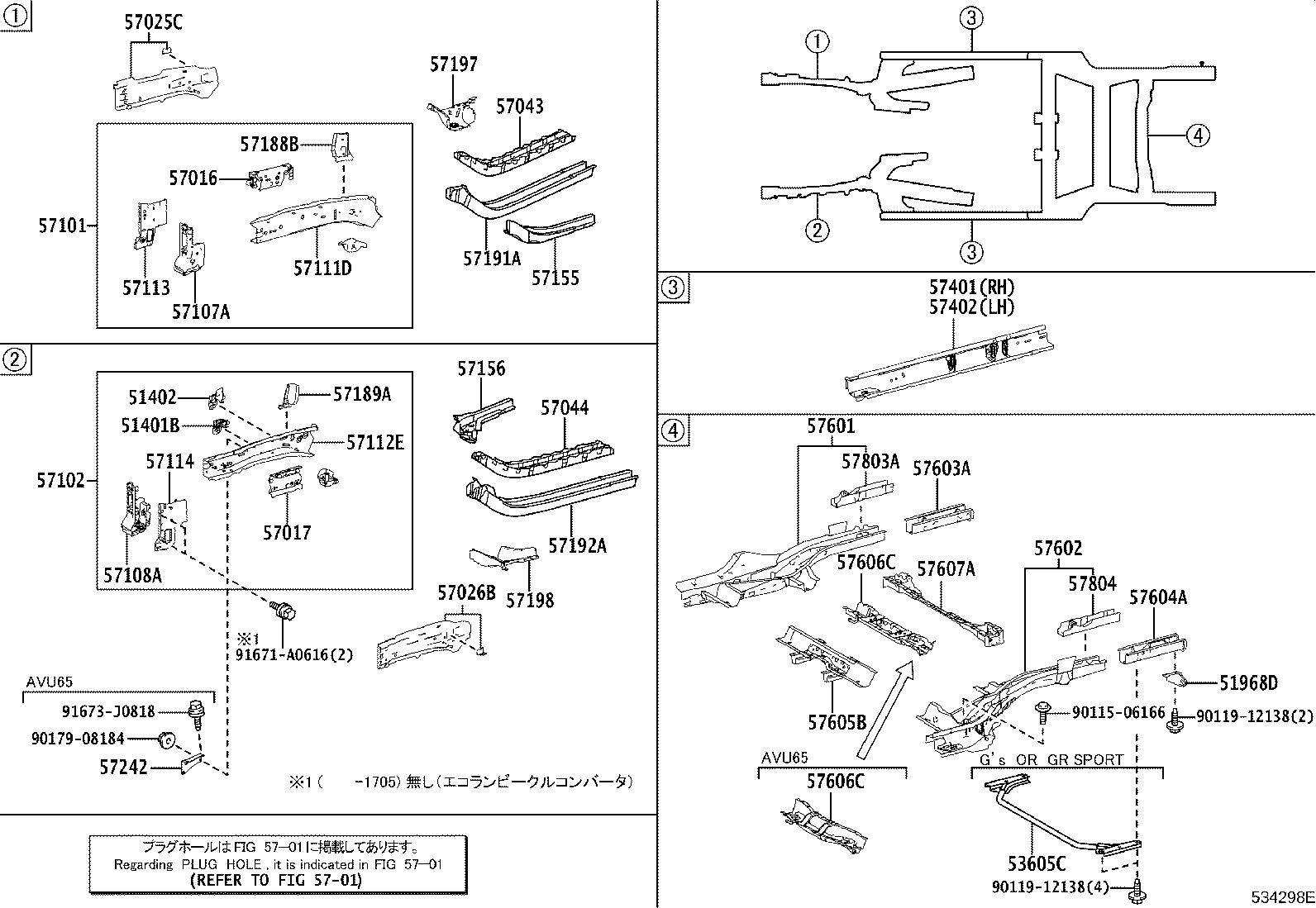

(1405-1705)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-42020 |
AVU65,ZSU6# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-42010 |
AVU65,ZSU6# |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-42010 |
AVU65,ZSU6# |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
AVU65,ZSU6# |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
AVU65,ZSU6# |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-12010 |
AVU65,ZSU6# |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-12020 |
AVU65,ZSU6# |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-42010 |
AVU65,ZSU6# |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-42010 |
AVU65,ZSU6# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57111-42900 |
AVU65,ZSU6# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57112-42900 |
AVU65,ZSU6# |
1 | ||
| 57112-12904 |
AVU65,ZSU6# |
1 | ||
| 57112-12906 |
AVU65,ZSU6# |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-42030 |
AVU65,ZSU6# |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-42030 |
AVU65,ZSU6# |
1 | ||
| 57108-42031 |
AVU65,ZSU6# |
1 | ||
| 57111D - MEMBER, FRONT SIDE, INNER RH | ||||
| 57111-12230 |
AVU65,ZSU6# |
1 | ||
| 57112E - MEMBER, FRONT SIDE, INNER LH | ||||
| 57112-12190 |
AVU65,ZSU6# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-42050 |
AVU65,ZSU6# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-42051 |
AVU65,ZSU6# |
1 | ||
| 57114-78010 |
AVU65,ZSU6# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57053-42011 |
AVU65,ZSU6# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57054-42010 |
AVU65,ZSU6# |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-42030 |
AVU65,ZSU6# |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-42020 |
AVU65,ZSU6# |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-42060 |
AVU65,ZSU6# |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-42060 |
AVU65,ZSU6# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-42060 |
AVU65,ZSU6# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-42060 |
AVU65,ZSU6# |
1 | ||
| 57242 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH | ||||
| 57242-48010 |
AVU65 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-42150 |
AVU65,ZSU6# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-42150 |
AVU65,ZSU6# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-48100 |
AVU65 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-48100 |
AVU65 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-42021 |
AVU65,ZSU6# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-42020 |
AVU65,ZSU6# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-48090 |
AVU65 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-48070 |
AVU65 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-48070 |
AVU65 |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-48030 |
AVU65 |
1 | ||
| 57607-78020 |
AVU65 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-42010 |
AVU65,ZSU6# |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-42010 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90119-12138 | ||||
| 90179-08184 | ||||
| 91671-A0616 | ||||
| 91673-J0818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
