AVU65W-ANXGB (2014)

Toyota Harrier/Hybrid

Production Jan 2014 - May 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1705)

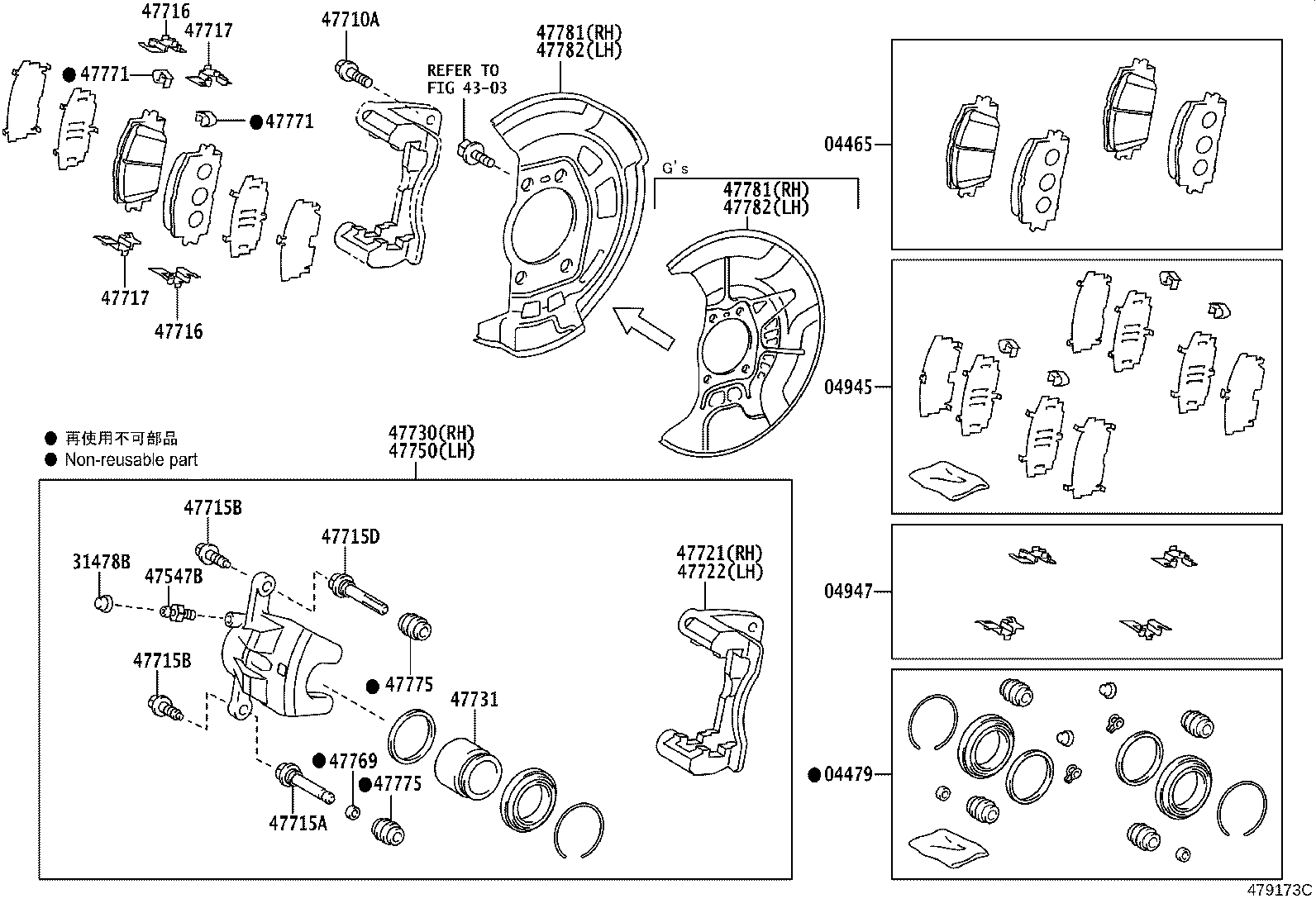

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715B 47715B 47715D 47716 47716 47717 47717 47721 47722 47730 47731 47750 47769 47771 47771 47775 47775 47781 47781 47782 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-42180

AVU65,ZSU6#

ﾏｰｸ ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-33100

AVU65,ZSU6#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-42060

AVU65,ZSU6#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-42050

AVU65,ZSU6#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AVU65,ZSU6#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AVU65,ZSU6#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

AVU65,ZSU6#

*12−1.25PX29.5−23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-12A10

AVU65,ZSU6#

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

AVU65,ZSU6#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

AVU65,ZSU6#

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-52190

AVU65,ZSU6#

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-52191

AVU65,ZSU6#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-52191

AVU65,ZSU6#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-52191

AVU65,ZSU6#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-52191

AVU65,ZSU6#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-42091

AVU65,ZSU6#

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-42091

AVU65,ZSU6#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-42091

AVU65,ZSU6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12A70

AVU65,ZSU6#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-42091

AVU65,ZSU6#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

AVU65,ZSU6#

 1
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

AVU65,ZSU6#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

AVU65,ZSU6#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52190

AVU65,ZSU6#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52190

AVU65,ZSU6#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-42040

AVU65,ZSU6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-42040

AVU65,ZSU6#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-42040

AVU65,ZSU6#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-42040

AVU65,ZSU6#

 1
