ASU65W-ANTST (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

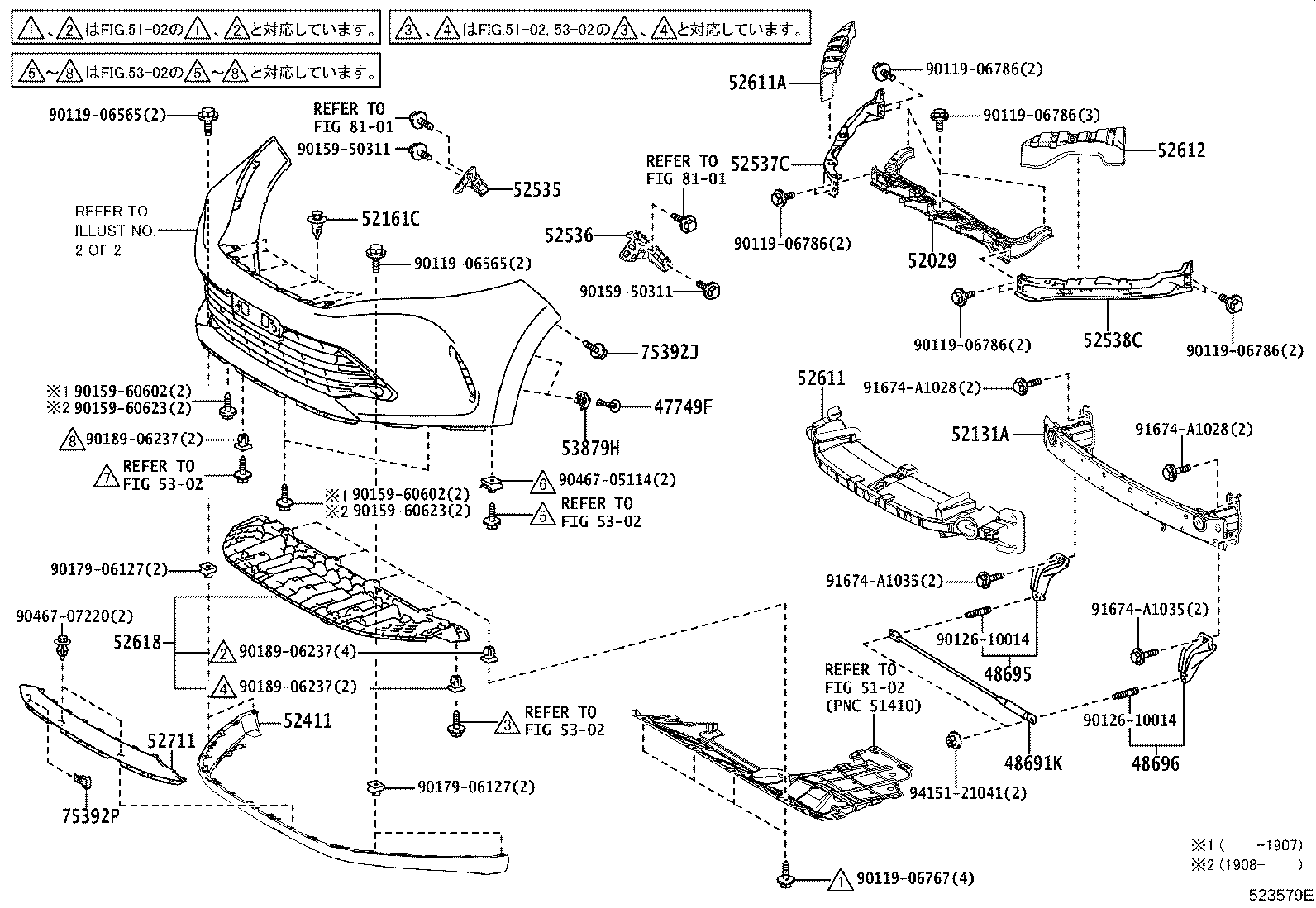

ILLUST NO. 1 OF 2(1705- )ASU6#

Click highlighted areas on diagram

diagram 47749F 48691K 48695 48696 5102 52029 52131A 52161C 52411 52535 52536 52537C 52538C 52611 52611A 52612 52618 52711 5302 5302 5302 53879H 75392J 75392P 8101 8101 9011906565 9011906565 9011906767 9011906786 9011906786 9011906786 9011906786 9011906786 9012610014 9012610014 9015950311 9015950311 9015960602 9015960602 9015960623 9015960623 9017906127 9017906127 9018906237 9018906237 9018906237 9046705114 9046707220 91674A1028 91674A1028 91674A1035 91674A1035 9415121041
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-50090

ASU6#,AVU65,ZSU6#

 4
48691K - DAMPER, SUSPENSION TOWER
48691-48040

ASU6#

 1
48691-48040

ASU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−FR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
48691-48040

ASU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−RR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
48695 - BRACKET, TOWER BAR, RH
48695-48020

ASU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−FR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
48695-48020

ASU6#

 1
48695-48020

ASU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−RR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
48696 - BRACKET, TOWER BAR, LH
48696-48020

ASU6#

 1
48696-48020

ASU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−RR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
48696-48020

ASU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−FR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-48010

ASU6#,AVU65,ZSU6#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-48090

ASU6#,ZSU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−FR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
52021-48090

ASU6#,ZSU6#

ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−RR ﾌﾞﾚｰｽ GRS用 (DOP)

 1
52021-48090

ASU6#,AVU65,ZSU6#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ASU6#,AVU65,ZSU6#

 6
52411 - GUARD, FRONT BUMPER
52411-48050

ASU6#,AVU65,ZSU6#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-48040

ASU6#,AVU65,ZSU6#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-48030

ASU6#,AVU65,ZSU6#

 1
52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH
52537-48040

ASU6#,AVU65,ZSU6#

 1
52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH
52538-48040

ASU6#,AVU65,ZSU6#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52614-48050

ASU6#,AVU65,ZSU6#

 1
52611A - ABSORBER, FRONT BUMPER ENERGY, RH
52611-48210

ASU6#,AVU65,ZSU6#

 1
52612 - ABSORBER, FRONT BUMPER ENERGY, LH
52612-48050

ASU6#,AVU65,ZSU6#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-48030

ASU6#,AVU65,ZSU6#

 1
52711 - MOULDING, FRONT BUMPER
52701-48010

ASU6#

塗装不要

 1
53879H - RETAINER, FRONT FENDER LINER
53879-30050

ASU6#,AVU65,ZSU6#

 4
75392J - RETAINER, OUTSIDE MOULDING
75392-42030

ASU6#,AVU65,ZSU6#

 2
75392P - RETAINER, OUTSIDE MOULDING, NO.3
75392-35220

ASU6#,AVU65,ZSU6#

 2
Common parts
90119-06565
90119-06767
90119-06786
90126-10014
90159-50311
90159-60602
90159-60623
90179-06127
90189-06237
90467-05114
90467-07220
91674-A1028
91674-A1035
94151-21041
Linked diagrams
5102
5302
8101

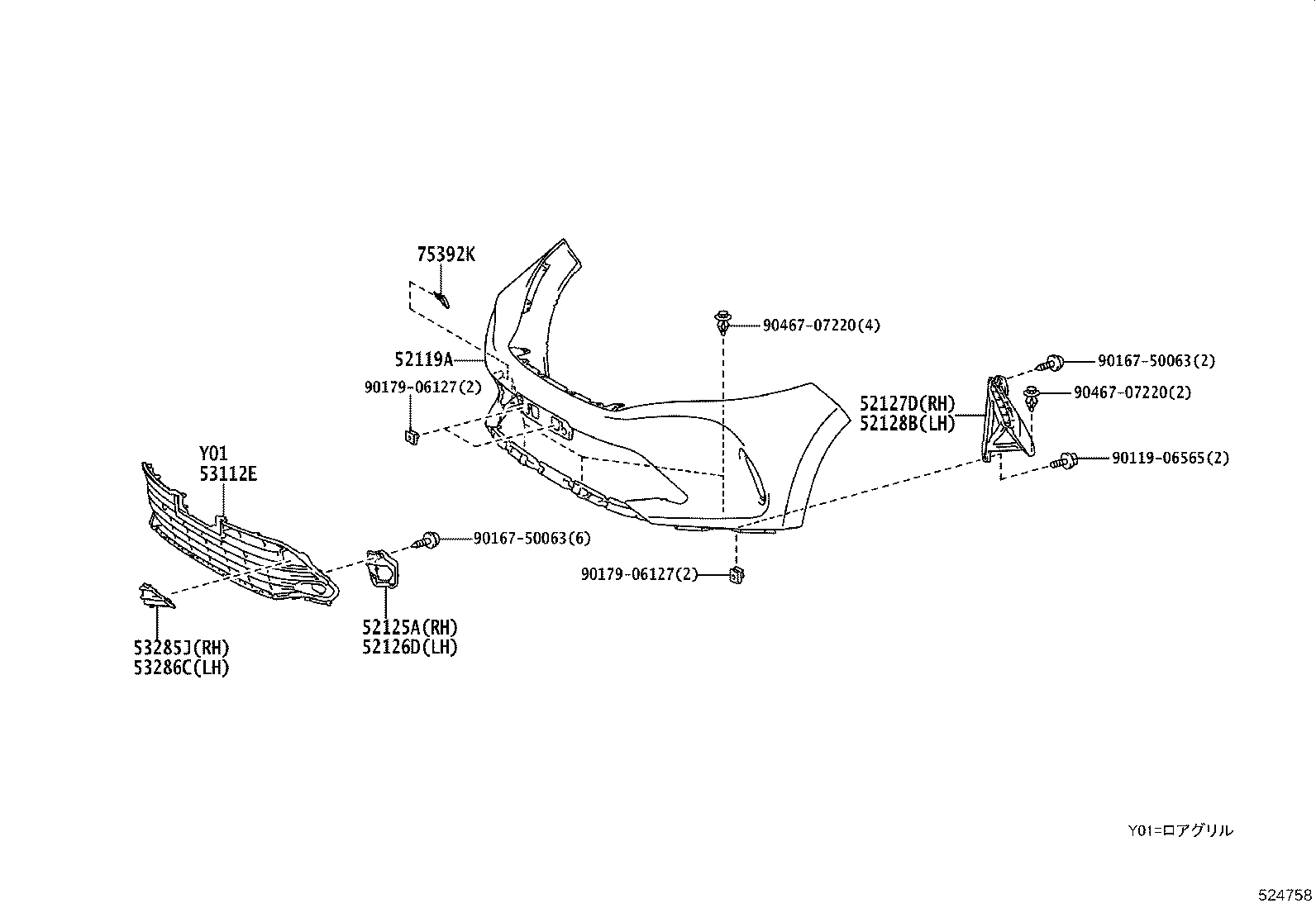

ILLUST NO. 2 OF 2(1705- )ASU6#

Click highlighted areas on diagram

diagram 52119A 52125A 52126D 52127D 52128B 53112E 53285J 53286C 75392K 9011906565 9016750063 9016750063 9017906127 9017906127 9046707220 9046707220
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-48580C2

ASU6#,AVU65,ZSU6#..PROGR

BLACK MC.,209

 1
52119-48580C0

ASU6#,AVU65,ZSU6#..PROGR

BLACK,202

 1
52119-48580C1

ASU6#,AVU65,ZSU6#..PROGR

SPARKLING BLACK PEARL CS.,220

 1
52119-48580B0

ASU6#,AVU65,ZSU6#..PROGR

SILVER ME.,1F7

 1
52119-48580J0

ASU6#,AVU65,ZSU6#..PROGR

DK.BLUE M.M.,8W7

 1
52119-48580D0

ASU6#,AVU65,ZSU6#..PROGR

DK. RED M.M.,3Q3

 1
52119-48580A0

ASU6#,AVU65,ZSU6#..PROGR

WHITE PEARL CS.,070

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-48100

ASU6#,AVU65,ZSU6#

 1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-48100

ASU6#,AVU65,ZSU6#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53102-48080

ASU6#..PROGR

塗装不要

 1
53102-48081

ASU6#..PROGR

塗装不要

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-48080

ASU6#

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-48090

ASU6#

 1
75392K - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ASU6#,AVU65,ZSU6#

 2
Common parts
90119-06565
90167-50063
90179-06127
90467-07220
