ASU65W-ANTGT (2017)
Toyota Harrier/Hybrid

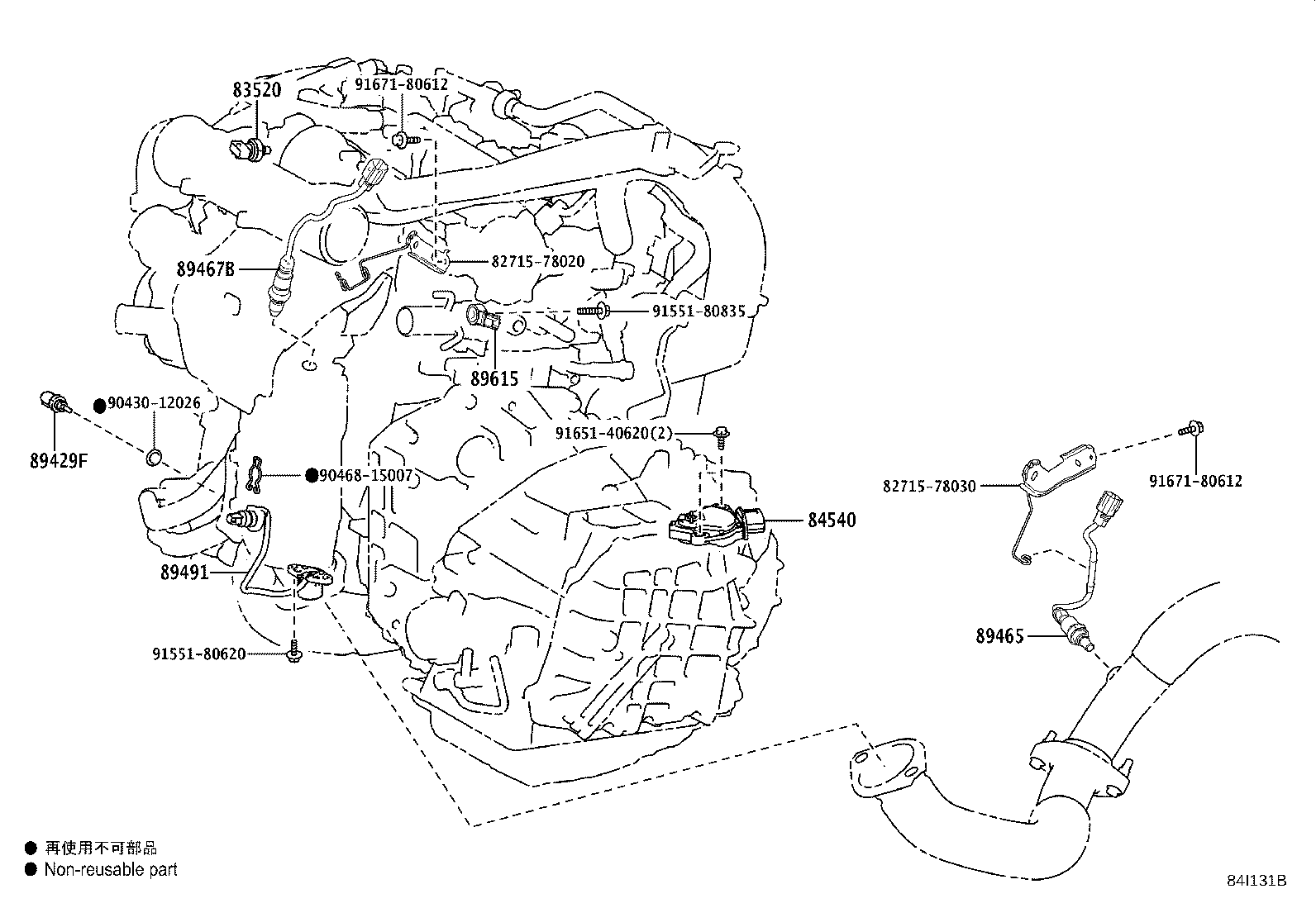

ILLUST NO. 1 OF 8(1705- )ASU6#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
ASU6# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
ASU6# |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ASU6#,ZSU6# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-78010 |
ASU6# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-78010 |
ASU6# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-78021 |
ASU6# |
1 | ||
| 89491-78020 |
ASU6# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ASU6#,AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 82715-78020 | ||||
| 82715-78030 | ||||
| 90430-12026 | ||||
| 90468-15007 | ||||
| 91551-80620 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||

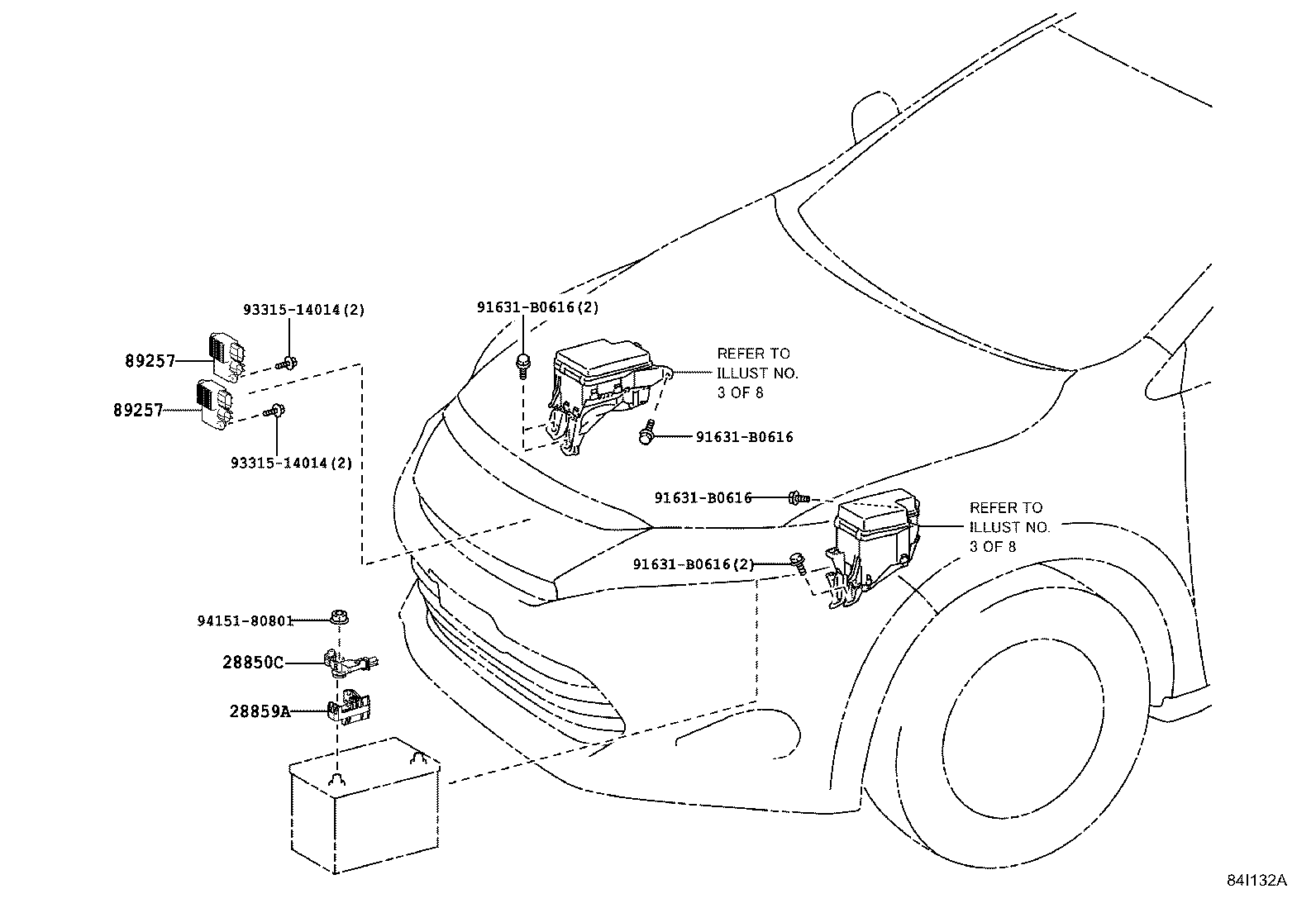

ILLUST NO. 2 OF 8(1705- )ASU6#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-36030 |
8ARFTS..ASU6# |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-36010 |
8ARFTS..ASU6# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
ASU6# |
2 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
ASU6# |
2 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| 93315-14014 | ||||
| 94151-80801 | ||||

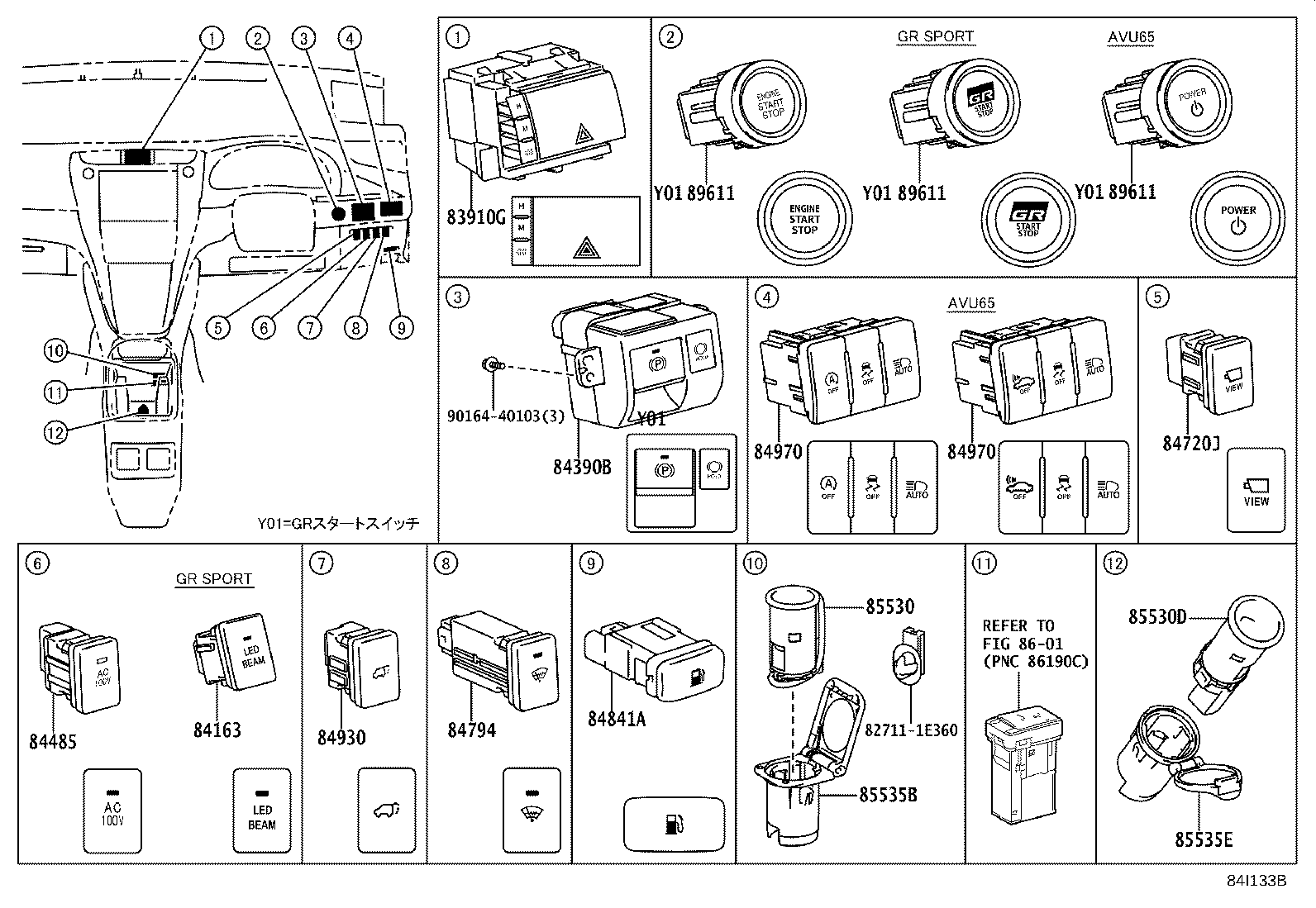

ILLUST NO. 5 OF 8(1705- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-48091 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-42031 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48101 |
ASU6#,AVU65,ZSU6#..PREM,PROGR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-48170 |
ASU6#,ZSU6# |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-48170 |
ASU6#,ZSU6# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-60140 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
ASU6#,ZSU6# |
1 | ||
| 89611-42012 |
ASU6#,ZSU6# 始動方式−ﾌﾟｯｼｭﾀｲﾌﾟ GRS用 (DOP) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
ASU6#,ZSU6# |
1 | ||
| 89611-42012 |
ASU6#,ZSU6# 始動方式−ﾌﾟｯｼｭﾀｲﾌﾟ GRS用 (DOP) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
ASU6#,ZSU6# |
1 | ||
| 89611-42012 |
ASU6#,ZSU6# 始動方式−ﾌﾟｯｼｭﾀｲﾌﾟ GRS用 (DOP) |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90164-40103 | ||||
| Linked diagrams | ||||
| 8601 | ||||

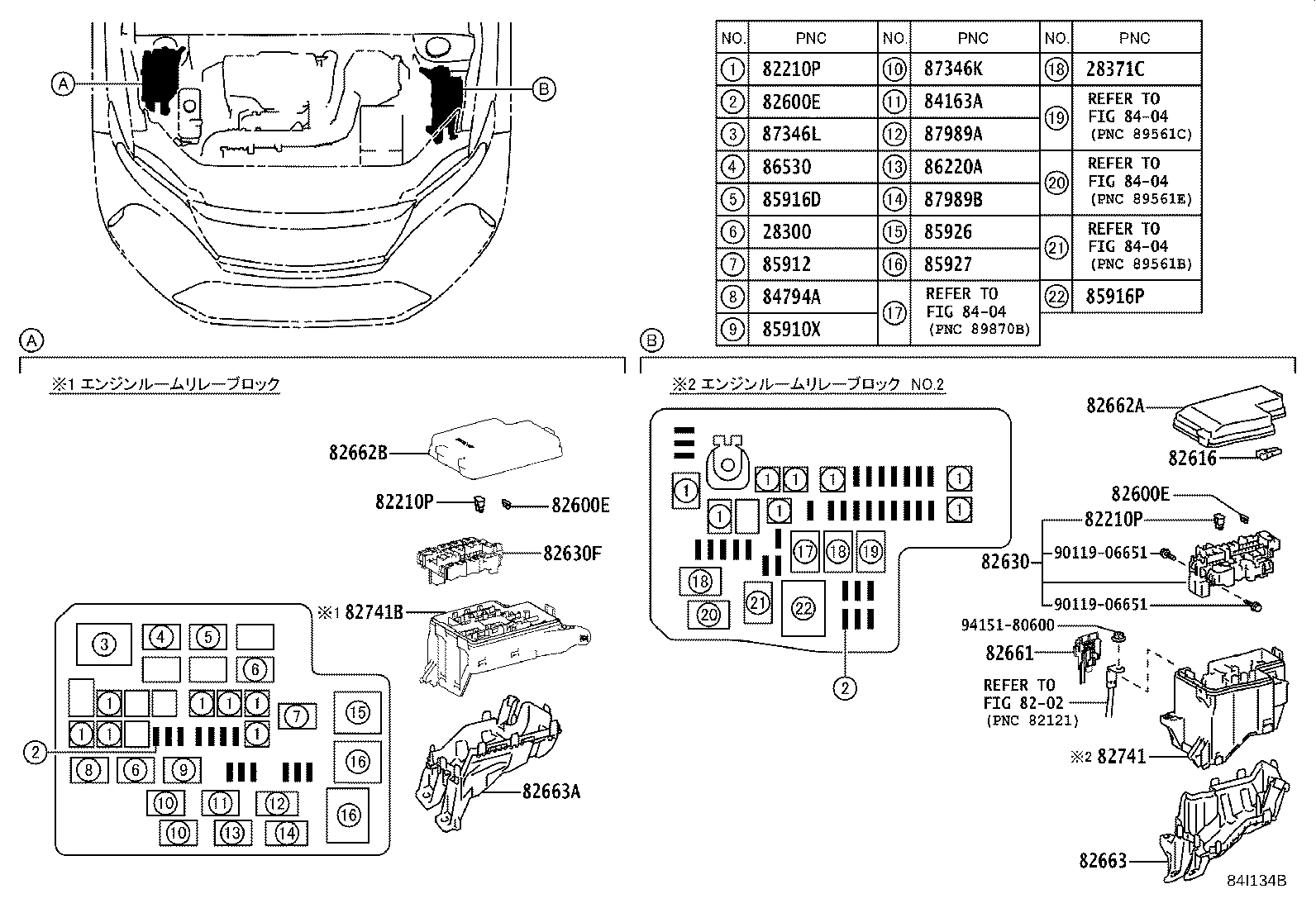

ILLUST NO. 3 OF 8(1705- )ASU6#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
8ARFTS,3ZRFAE..ASU6#,ZSU6# |
2 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
8ARFTS..ASU6#;2ARFXE,3ZRFAE..AVU65,ZSU6#..PREM,PROGR |
2 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
ASU6#,ZSU6# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
ASU6#,ZSU6# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
ASU6#,AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08305 |
ASU6#,AVU65,ZSU6# 80A,ﾒｽ端子,黒 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
ASU6#,ZSU6# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
ASU6#,ZSU6# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
ASU6#,AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08305 |
ASU6#,AVU65,ZSU6# 80A,ﾒｽ端子,黒 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
ASU6#,ZSU6# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
ASU6#,ZSU6# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
ASU6#,AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08305 |
ASU6#,AVU65,ZSU6# 80A,ﾒｽ端子,黒 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ASU6#,AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
ASU6#,AVU65,ZSU6# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ASU6#,AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
ASU6#,AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ASU6#,ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
ASU6#,AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ASU6#,AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ASU6#,AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
ASU6#,AVU65,ZSU6# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ASU6#,AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
ASU6#,AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ASU6#,ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
ASU6#,AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ASU6#,AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ASU6#,AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
ASU6#,AVU65,ZSU6# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ASU6#,AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
ASU6#,AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
ASU6#,ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
ASU6#,AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ASU6#,AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ASU6#,ZSU6# |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-42060 |
ASU6#,ZSU6# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-48460 |
ASU6# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-48490 |
ASU6# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42110 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ASU6#,ZSU6# |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42030 |
ASU6#,ZSU6# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
ASU6# |
2 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
ASU6#,ZSU6# ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
ASU6#,ZSU6# 寒冷地仕様 |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
ASU6#,ZSU6# 寒冷地仕様 |
1 | ||
| 87989A - RELAY, MIRROR NO.1 | ||||
| 90987-04004 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87989B - RELAY, MIRROR NO.2 | ||||
| 90987-04004 |
ASU6#,AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06651 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
