ASU65W-ANTGT (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )ASU6#

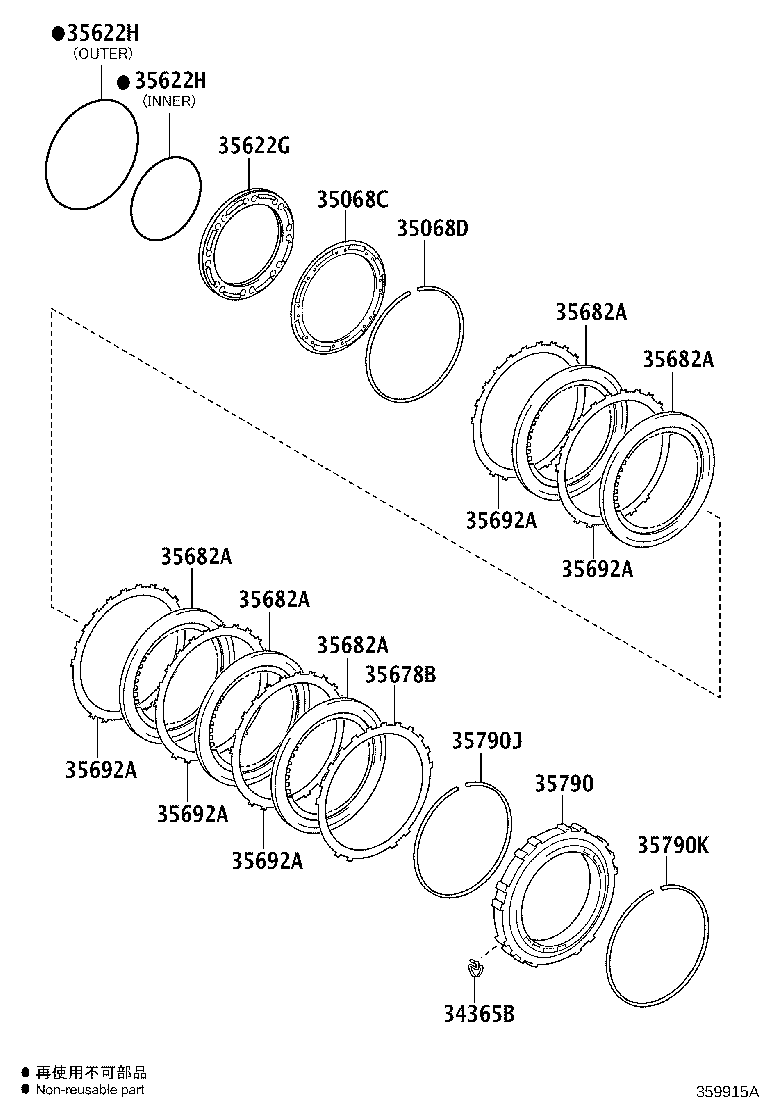

Click highlighted areas on diagram

U661E,U661F

diagram 34365B 35068C 35068D 35622G 35622H 35622H 35678B 35682A 35682A 35682A 35682A 35682A 35692A 35692A 35692A 35692A 35692A 35790 35790J 35790K
Part # Description Qty Price
34365B - RETAINER, OUTER RACE
34365-33021

ASU6#

 1
35068C - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-33030

ASU6#

 1
35068D - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-99109

ASU6#

 1
35622G - PISTON, BRAKE, NO.2
35622-33010

ASU6#

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99190

ASU6#

内側

 1
90301-99191

ASU6#

外側

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99190

ASU6#

内側

 1
90301-99191

ASU6#

外側

 1
35678B - FLANGE, BRAKE, NO.2
35678-33060

ASU6#

厚さ=4.0,ﾏｰｸ 40

 1
35678-33070

ASU6#

厚さ=4.1,ﾏｰｸ 41

 1
35678-33080

ASU6#

厚さ=4.2,ﾏｰｸ 42

 1
35678-78020

ASU6#

厚さ=3.7,ﾏｰｸ 37

 1
35678-78030

ASU6#

厚さ=3.8,ﾏｰｸ 38

 1
35678-33100

ASU6#

厚さ=4.4,ﾏｰｸ 44

 1
35678-78010

ASU6#

厚さ=3.6,ﾏｰｸ 36

 1
35678-33090

ASU6#

厚さ=4.3,ﾏｰｸ 43

 1
35678-78040

ASU6#

厚さ=3.9,ﾏｰｸ 39

 1
35682A - DISC, BRAKE, NO.2
35682-48020

ASU6#

 5
35682A - DISC, BRAKE, NO.2
35682-48020

ASU6#

 5
35682A - DISC, BRAKE, NO.2
35682-48020

ASU6#

 5
35682A - DISC, BRAKE, NO.2
35682-48020

ASU6#

 5
35682A - DISC, BRAKE, NO.2
35682-48020

ASU6#

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

ASU6#

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

ASU6#

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

ASU6#

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

ASU6#

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

ASU6#

 5
35790 - CLUTCH ASSY, 1 WAY
35791-48010

ASU6#

 1
35790J - RING, SNAP NO.1 (FOR 1 WAY CLUTCH)
90520-99105

ASU6#

 1
35790K - RING, SNAP NO.2 (FOR 1 WAY CLUTCH)
90520-99106

ASU6#

 1
