ASU60W-ANTMT (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )ASU6#

Click highlighted areas on diagram

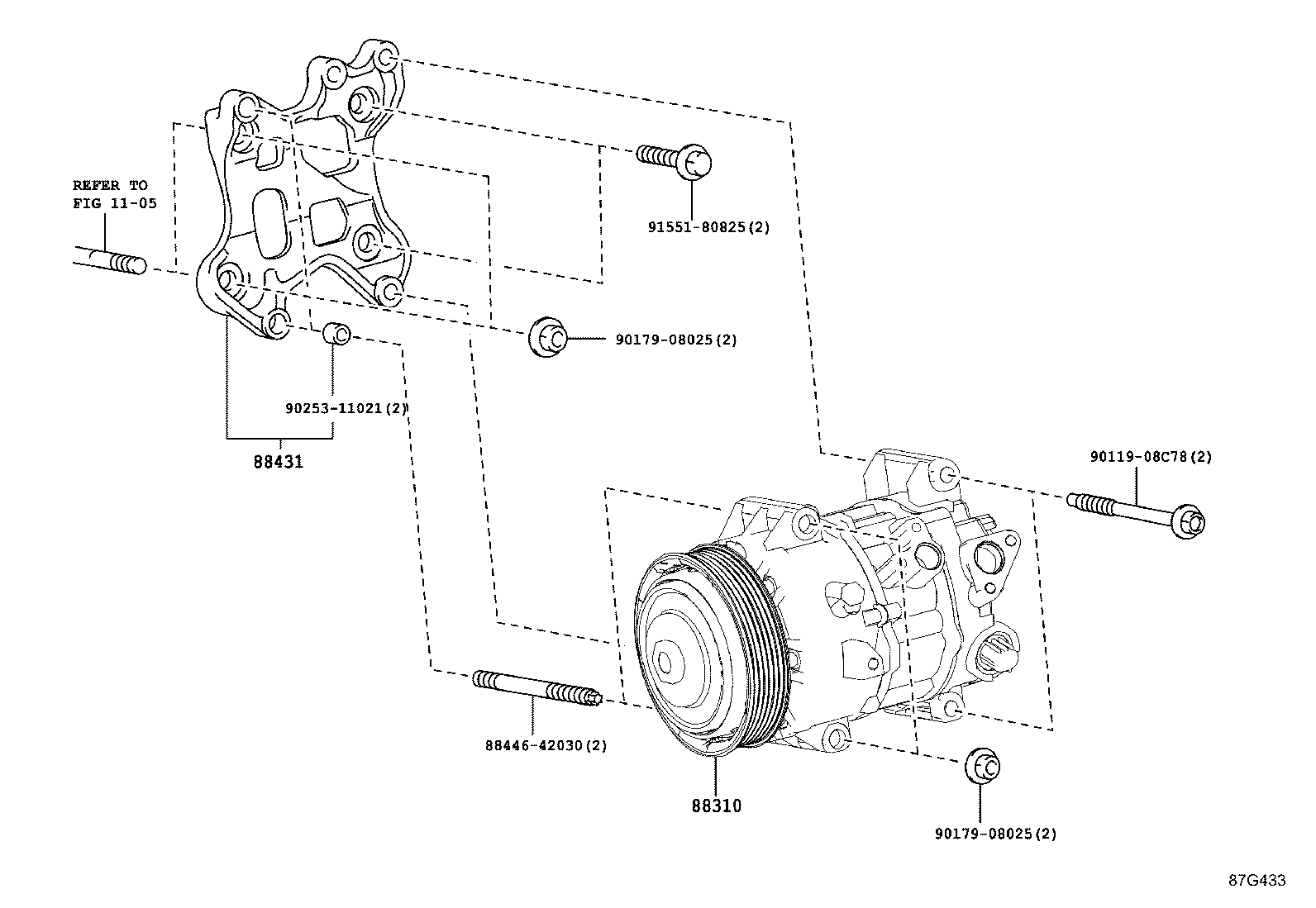

diagram 1105 88310 88431 8844642030 9011908C78 9017908025 9017908025 9025311021 9155180825
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-78011

ASU6#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
12502-36031

ASU6#

 1
Common parts
88446-42030
90119-08C78
90179-08025
90253-11021
91551-80825
Linked diagrams
1105
