ASU60W-ANTMT (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

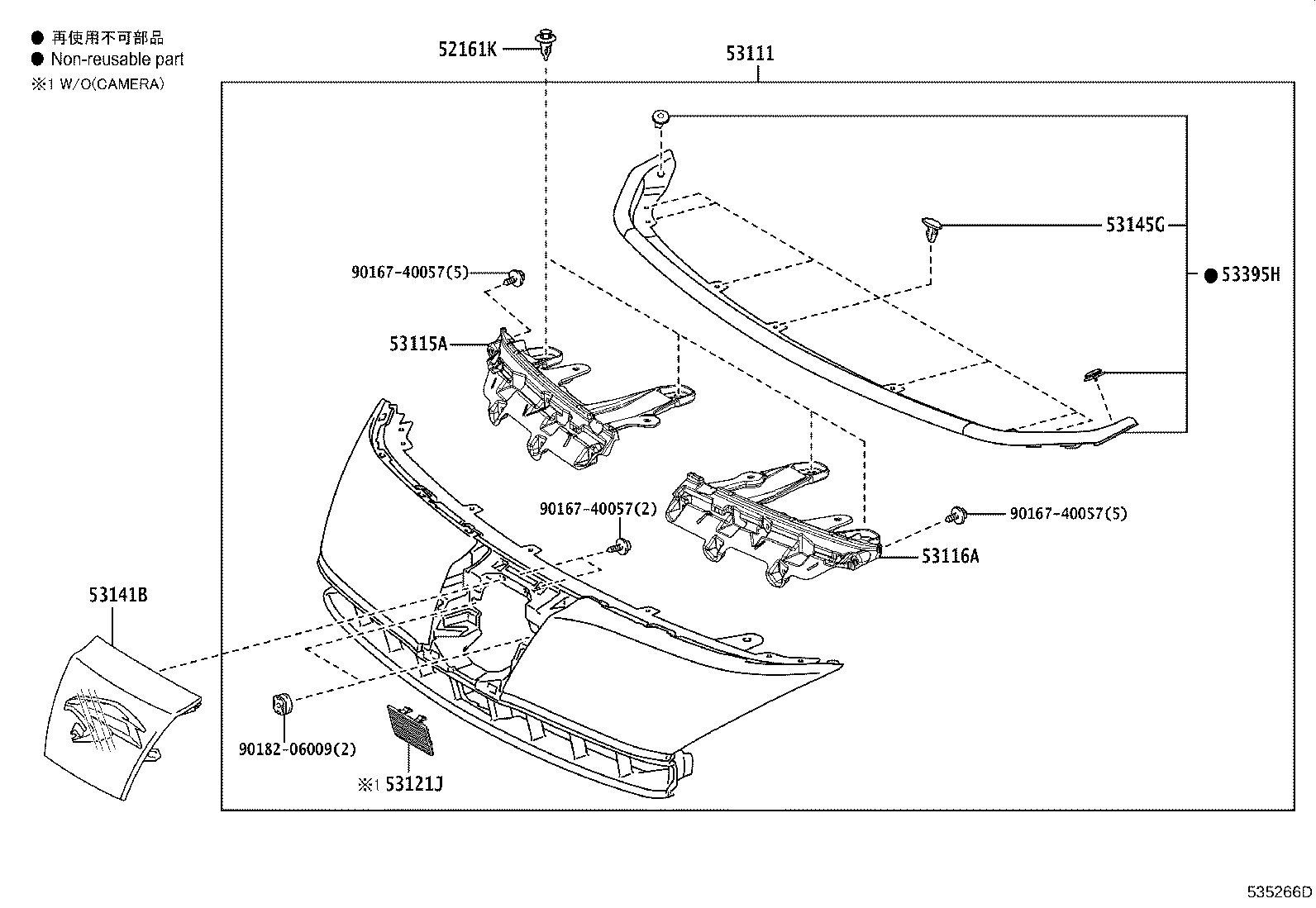

Click highlighted areas on diagram

diagram 52161K 53111 53115A 53116A 53121J 53141B 53145G 53395H 9016740057 9016740057 9016740057 9018206009
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

ASU6#,AVU65,ZSU6#

 4
53111 - GRILLE, RADIATOR
53101-48920

ASU6#..ELEGC,PREM

塗装不要

 1
53115A - BRACKET, RADIATOR GRILLE, RH
53115-48020

ASU6#,AVU65,ZSU6#

 1
53116A - BRACKET, RADIATOR GRILLE, LH
53116-48010

ASU6#,AVU65,ZSU6#

 1
53121J - MOULDING, RADIATOR GRILLE, NO.1
53121-48160

ASU6#,AVU65,ZSU6#..ELEGC,PREM

 1
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-48130

ASU6#

 1
53145G - CLIP, RADIATOR GRILLE
53145-60030

ASU6#,AVU65,ZSU6#

 7
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48090

ASU6#,AVU65,ZSU6#

 1
Common parts
90167-40057
90182-06009
