ASU60W-ANTGT (2017)
Toyota Harrier/Hybrid
(1705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89305 - CUSHION SET, ULTRASONIC SENSOR | ||||
| 89347-48010 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89305A - CUSHION SET, ULTRASONIC SENSOR, NO.2 | ||||
| 89305-15010 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89305A - CUSHION SET, ULTRASONIC SENSOR, NO.2 | ||||
| 89305-15010 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89305A - CUSHION SET, ULTRASONIC SENSOR, NO.2 | ||||
| 89305-15010 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89305A - CUSHION SET, ULTRASONIC SENSOR, NO.2 | ||||
| 89305-15010 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-48190 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89341K - SENSOR, ULTRASONIC, FRONT CORNER | ||||
| 89341-58060B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
2 | ||
| 89341-58060C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
2 | ||
| 89341-58060J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
2 | ||
| 89341-58060D1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
2 | ||
| 89341-58060A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
2 | ||
| 89341-58060C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89341K - SENSOR, ULTRASONIC, FRONT CORNER | ||||
| 89341-58060B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
2 | ||
| 89341-58060C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
2 | ||
| 89341-58060J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
2 | ||
| 89341-58060D1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
2 | ||
| 89341-58060A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
2 | ||
| 89341-58060C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89341L - SENSOR, ULTRASONIC, FRONT CENTER | ||||
| 89341-48040C3 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DUMMY-MAT BLACK |
2 | ||
| 89342 - SENSOR, ULTRASONIC, REAR CORNER | ||||
| 89341-58060A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
2 | ||
| 89341-58060C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
2 | ||
| 89341-58060C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89341-58060B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
2 | ||
| 89341-58060J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
2 | ||
| 89341-58060D1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
2 | ||
| 89342A - SENSOR, ULTRASONIC, REAR CENTER | ||||
| 89341-58060A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
2 | ||
| 89341-58060C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89341-58060B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
2 | ||
| 89341-58060D1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
2 | ||
| 89341-58060C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
2 | ||
| 89341-58060J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-48010 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89347B - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-58120 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
2 | ||
| 89347B - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-58120 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
2 | ||
| 89348F - BEZEL, ULTRASONIC SENSOR, NO.1 | ||||
| 89348-58150B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 89348-58150C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 89348-58150A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 89348-58150J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
1 | ||
| 89348-58150D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
1 | ||
| 89348-58150C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 89348G - BEZEL, ULTRASONIC SENSOR, NO.2 | ||||
| 89348-58140C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 89348-58140A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 89348-58140B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 89348-58140C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 89348-58140J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
1 | ||
| 89348-58140D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
1 | ||
| 89348J - CLIP, ULTRASONIC SENSOR | ||||
| 89348-58130 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
2 | ||
| 89348J - CLIP, ULTRASONIC SENSOR | ||||
| 89348-58130 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
2 | ||
| 89348R - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-58120 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
2 | ||
| 89348S - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58120 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
2 | ||
| 89348U - BEZEL, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-58070A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
2 | ||
| 89348-58070D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
2 | ||
| 89348-58070C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
2 | ||
| 89348-58070B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
2 | ||
| 89348-58070J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
2 | ||
| 89348-58070C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89348V - BEZEL, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58070A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
2 | ||
| 89348-58070B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
2 | ||
| 89348-58070C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
2 | ||
| 89348-58070D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
2 | ||
| 89348-58070C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89348-58070J1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
2 | ||
| Linked diagrams | ||||

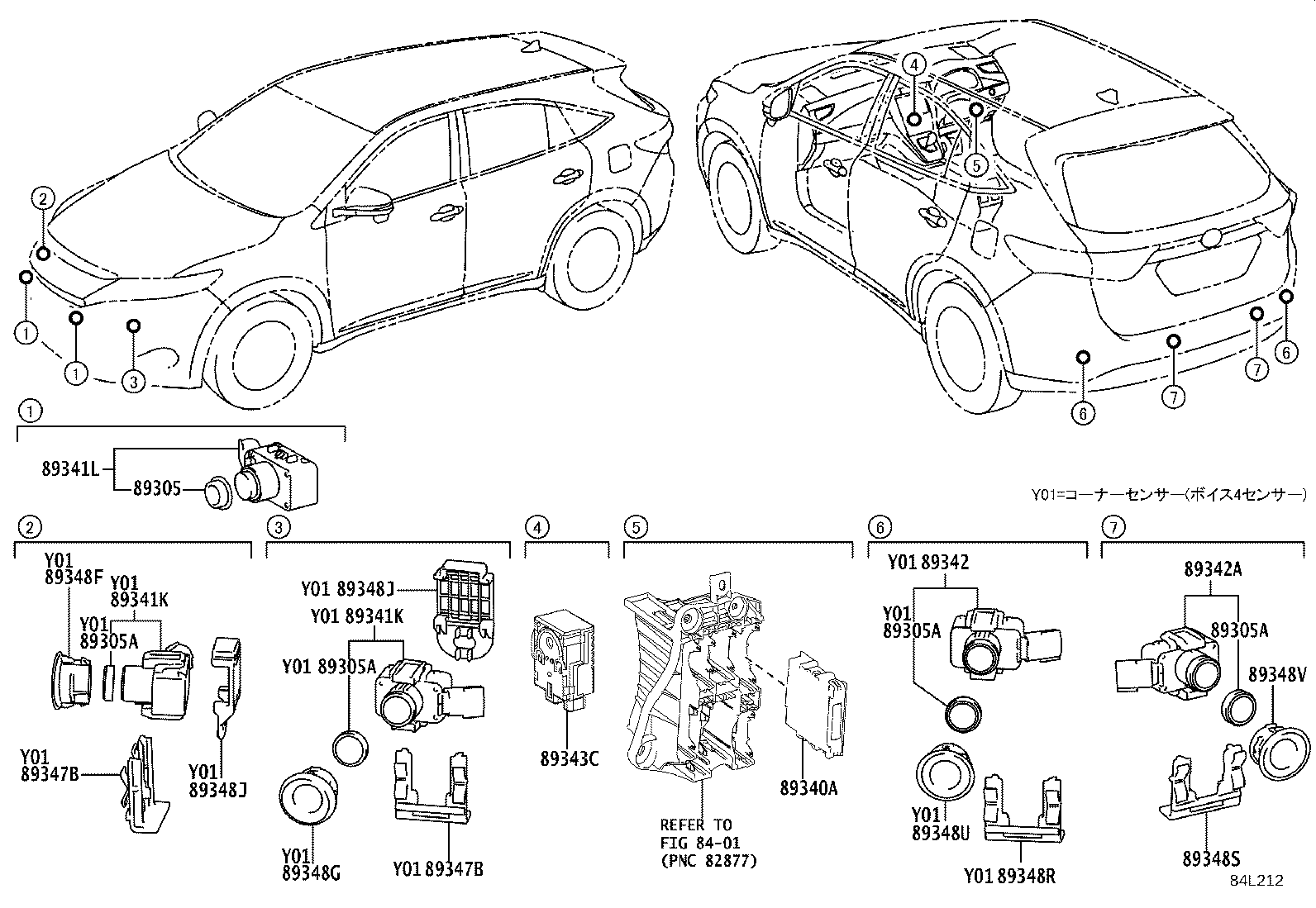

| 8401 | ||||
