ASU60W-ANTGT (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

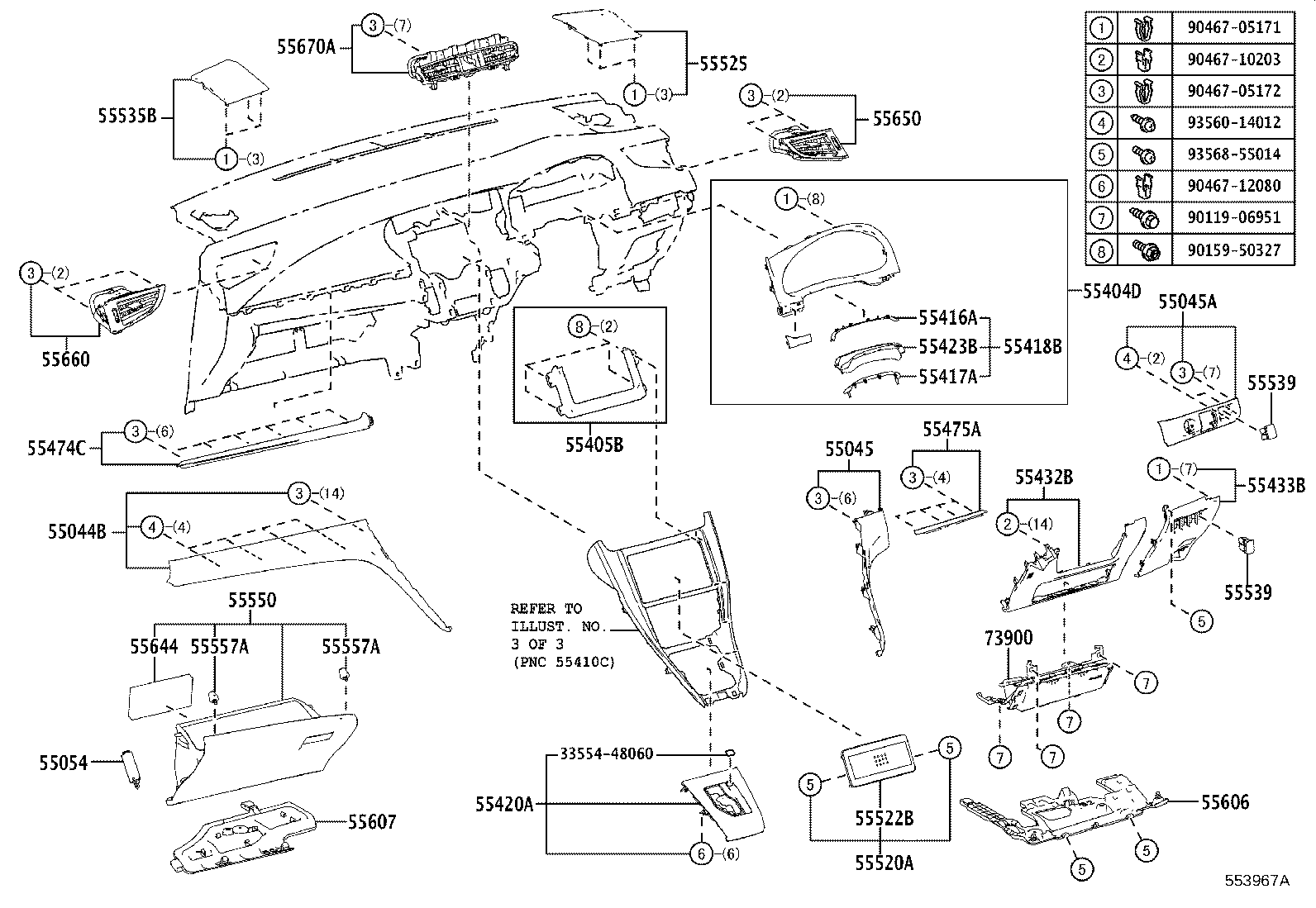

ILLUST NO. 2 OF 3(1705- )

Click highlighted areas on diagram

diagram 3355448060 55044B 55045 55045A 55054 55404D 55405B 55416A 55417A 55418B 55420A 55423B 55432B 55433B 55474C 55475A 55520A 55522B 55525 55535B 55539 55539 55550 55557A 55557A 55606 55607 55644 55650 55660 55670A 73900 9011906951 9015950327 9046705171 9046705172 9046710203 9046712080 9356014012 9356855014
Part # Description Qty Price
55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER
55044-48020C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55044-48010C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55046-48010C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
55045-48210C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010

ASU6#,AVU65,ZSU6#

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-48070C0

ASU6#..ELEGC,PREM

21BK02,TRIM2#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-48240

ASU6#,AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 7ｲﾝﾁ 有り(*DOP ｶﾊﾞｰ)

 1
55405-48240

ASU6#,AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 7ｲﾝﾁ 有り(*DOP ｶﾊﾞｰ)

 1
55416A - RETAINER, METER HOOD, NO.1
55416-48040

ASU6#,AVU65,ZSU6#

 1
55417A - RETAINER, METER HOOD, NO.2
55417-48010

ASU6#,AVU65,ZSU6#

 1
55418B - SPACER,METER HOOD
55418-48130

ASU6#,AVU65,ZSU6#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-48290C4

ASU6#

TURBO BLACK,TRIM2#

 1
55420-48330B1

ASU6#..PREM

“Metal and Leather Package”*(S),SILVER,TRIM2#

 1
55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL
55423-48030

ASU6#,AVU65,ZSU6#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-48310C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55432-48450C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-48210C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55433-48240C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-48060

ASU6#,AVU65,ZSU6#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-48080

ASU6#,AVU65,ZSU6#

 1
55520A - COVER ASSY, STEREO OPENING
55520-47020

ASU6#,AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 7ｲﾝﾁ 有り(*DOP ｶﾊﾞｰ)

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

ASU6#,AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 7ｲﾝﾁ 有り(*DOP ｶﾊﾞｰ)

 1
55525 - COVER, SPEAKER HOLE, NO.1
55525-48030C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55535B - COVER, SPEAKER HOLE, NO.2
55535-48010C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-22190

ASU6#,AVU65,ZSU6#

 1
55539-22190

ASU6#,AVU65,ZSU6#

寒冷地仕様

 1
55539 - COVER, SPARE SWITCH HOLE
55539-22190

ASU6#,AVU65,ZSU6#

 1
55539-22190

ASU6#,AVU65,ZSU6#

寒冷地仕様

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-48070C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

ASU6#,AVU65,ZSU6#

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

ASU6#,AVU65,ZSU6#

 2
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-48030

ASU6#,AVU65,ZSU6#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-48110

ASU6#,AVU65,ZSU6#

 1
55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2
55644-42050

ASU6#,AVU65,ZSU6#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-48090

ASU6#,AVU65,ZSU6#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-48090

ASU6#,AVU65,ZSU6#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-48120

ASU6#,AVU65,ZSU6#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-48070C0

ASU6#..ELEGC,PREM

BLACK,TRIM2#

 1
Common parts
33554-48060
90119-06951
90159-50327
90467-05171
90467-05172
90467-10203
90467-12080
93560-14012
93568-55014
