ASU60W-ANTGT (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

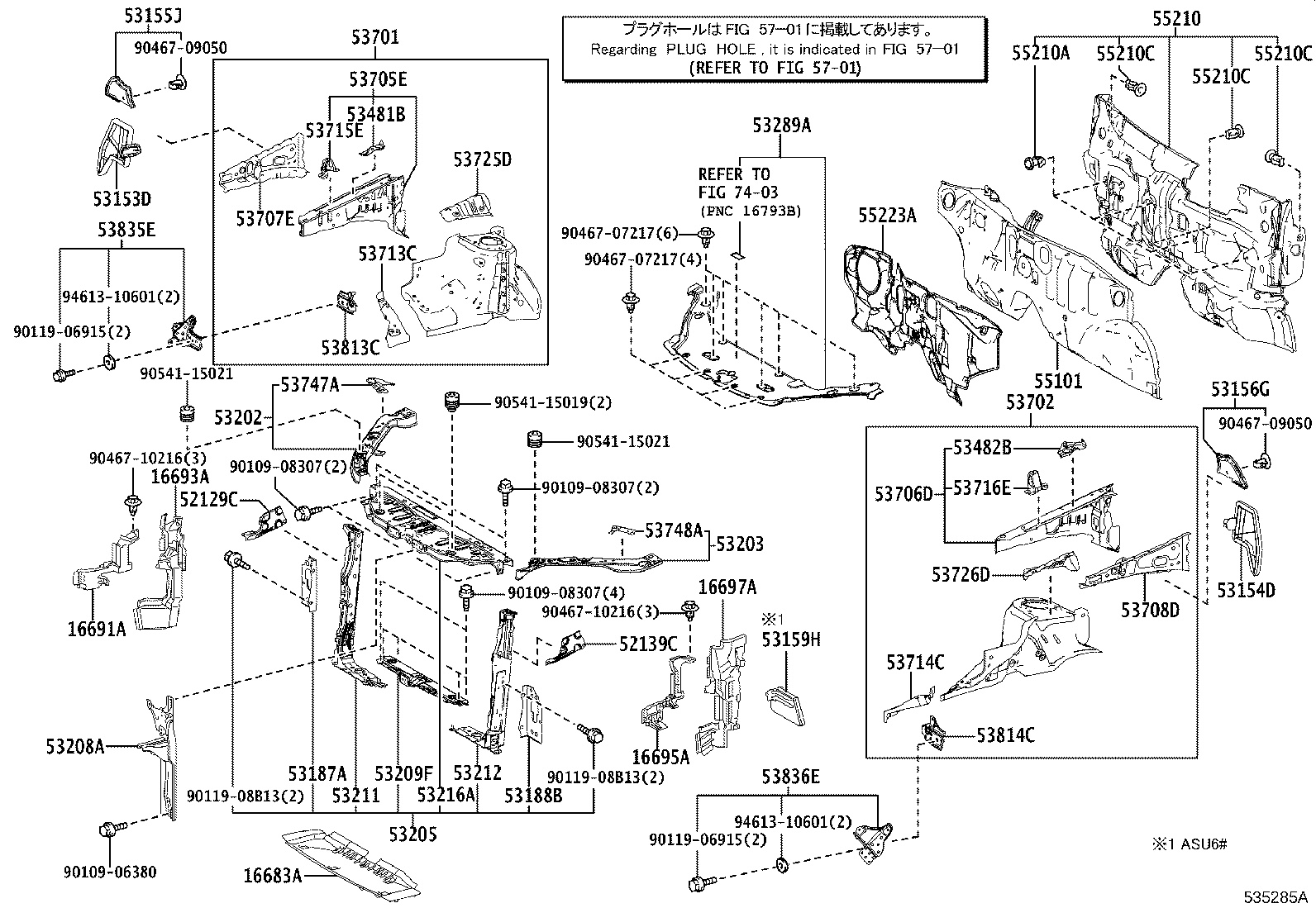

Click highlighted areas on diagram

diagram 16683A 16691A 16693A 16695A 16697A 52129C 52139C 53153D 53154D 53155J 53156G 53159H 53187A 53188B 53202 53203 53205 53208A 53209F 53211 53212 53216A 53289A 53481B 53482B 53701 53702 53705E 53706D 53707E 53708D 53713C 53714C 53715E 53716E 53725D 53726D 53747A 53748A 53813C 53814C 53835E 53836E 55101 55210 55210A 55210C 55210C 55210C 55223A 5701 7403 9010906380 9010908307 9010908307 9010908307 9011906915 9011906915 9011908B13 9011908B13 9046707217 9046707217 9046709050 9046709050 9046710216 9046710216 9054115019 9054115021 9054115021 9461310601 9461310601
Part # Description Qty Price
16683A - PLATE, RADIATOR LOWER AIR GUIDE
16683-36100

2ARFXE,8ARFTS,3ZRFAE..ASU6#,AVU65,ZSU6#

 1
16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16691-36140

8ARFTS..ASU6#

 1
16693A - PLATE, RADIATOR SIDE AIR GUIDE, REAR RH
16693-36070

8ARFTS..ASU6#

 1
16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
16695-36140

8ARFTS..ASU6#

 1
16697A - PLATE, RADIATOR SIDE AIR GUIDE, REAR LH
16697-36070

8ARFTS..ASU6#

 1
52129C - ARM, FRONT BUMPER, UPPER NO.2 RH
52129-48021

ASU6#,AVU65,ZSU6#

 1
52139C - ARM, FRONT BUMPER, UPPER NO.2 LH
52139-48010

ASU6#,AVU65,ZSU6#

 1
53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-48020

ASU6#,AVU65,ZSU6#

 1
53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-48020

ASU6#,AVU65,ZSU6#

 1
53155J - SEAL, RADIATOR GRILLE, NO.1
53155-48020

ASU6#,AVU65,ZSU6#

 1
53156G - SEAL, RADIATOR GRILLE, NO.2
53156-48010

ASU6#,AVU65,ZSU6#

 1
53159H - SEAL, RADIATOR GRILLE, NO.5
53159-48010

ASU6#

 1
53187A - STAY, RADIATOR SUPPORT, RH
53187-42010

ASU6#,AVU65,ZSU6#

 1
53188B - STAY, RADIATOR SUPPORT, LH
53188-42010

ASU6#,AVU65,ZSU6#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-48090

ASU6#,AVU65,ZSU6#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-48130

ASU6#,AVU65,ZSU6#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-48030

ASU6#,AVU65,ZSU6#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-48091

ASU6#,AVU65,ZSU6#

 1
53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH
53209-48010

ASU6#,AVU65,ZSU6#

 1
53211 - SUPPORT, RADIATOR, RH
53211-48901

ASU6#,AVU65,ZSU6#

 1
53212 - SUPPORT, RADIATOR, LH
53212-48901

ASU6#,AVU65,ZSU6#

 1
53216A - SUPPORT, RADIATOR, UPPER
53216-48902

ASU6#,AVU65,ZSU6#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-48021

ASU6#,AVU65,ZSU6#

 1
53481B - BRACKET, HOOD SUPPORT, RH
53481-48050

ASU6#,AVU65,ZSU6#

 1
53482B - BRACKET, HOOD SUPPORT LH
53482-48040

ASU6#,AVU65,ZSU6#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-48090

ASU6#,AVU65,ZSU6#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-48060

ASU6#,AVU65,ZSU6#

 1
53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53705-48020

ASU6#,AVU65,ZSU6#

 1
53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53706-48010

ASU6#,AVU65,ZSU6#

 1
53707E - APRON SUB-ASSY, FENDER SIDE, RH
53707-42010

ASU6#,AVU65,ZSU6#

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-42010

ASU6#,AVU65,ZSU6#

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-42040

ASU6#,AVU65,ZSU6#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-42041

ASU6#,AVU65,ZSU6#

 1
53715E - EXTENSION, FRONT FENDER APRON, REAR RH
53715-48010

ASU6#,AVU65,ZSU6#

 1
53716E - EXTENSION, FRONT FENDER APRON, REAR LH
53716-48010

ASU6#,AVU65,ZSU6#

 1
53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53725-42010

ASU6#,AVU65,ZSU6#

 1
53726D - APRON, FRONT FENDER NO.2 SIDE, LH
53726-42010

ASU6#,AVU65,ZSU6#

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-48010

ASU6#,AVU65,ZSU6#

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-48010

ASU6#,AVU65,ZSU6#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-42030

ASU6#,AVU65,ZSU6#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-42030

ASU6#,AVU65,ZSU6#

 1
53835E - BRACE, FRONT FENDER TO APRON, RH
53803-48030

ASU6#,AVU65,ZSU6#

 1
53836E - BRACE, FRONT FENDER TO APRON, LH
53804-48020

ASU6#,AVU65,ZSU6#

 1
55101 - PANEL SUB-ASSY, DASH
55101-48230

ASU6#,AVU65,ZSU6#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-48210

ASU6#,AVU65,ZSU6#

 1
55210A - CLIP
90467-11122

ASU6#,AVU65,ZSU6#

 4
55210C - CLIP
90467-13079

ASU6#,AVU65,ZSU6#

 3
55210C - CLIP
90467-13079

ASU6#,AVU65,ZSU6#

 3
55210C - CLIP
90467-13079

ASU6#,AVU65,ZSU6#

 3
55223A - INSULATOR, DASH PANEL, OUTER
55223-48221

ASU6#,AVU65,ZSU6#

 1
Common parts
90109-06380
90109-08307
90119-06915
90119-08B13
90467-07217
90467-09050
90467-10216
90541-15019
90541-15021
94613-10601
