ASU60W-ANTGT (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 8ARFTS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )8ARFTS

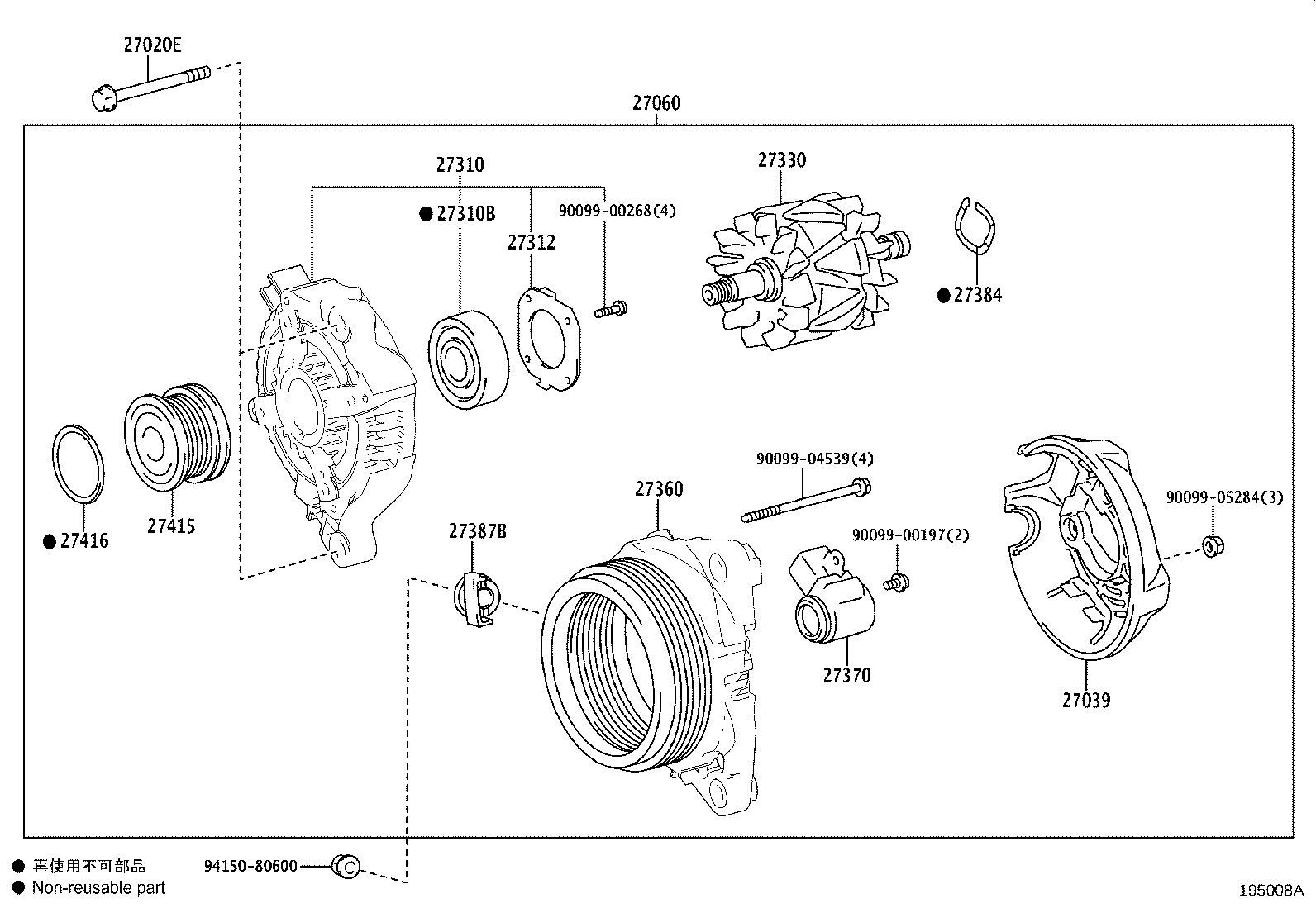

Click highlighted areas on diagram

12V 150A

diagram 27020E 27039 27060 27310 27310B 27312 27330 27360 27370 27384 27387B 27415 27416 9009900197 9009900268 9009904539 9009905284 9415080600
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
91552-81095

8ARFTS..ASU6#

 2
27039 - COVER, ALTERNATOR REAR END
27039-31390

8ARFTS..ASU6#

 1
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-36101

8ARFTS..ASU6#

 1
27060-36100

8ARFTS..ASU6#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-36180

8ARFTS..ASU6#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

8ARFTS,3ZRFAE..ASU6#,ZSU6#

 1
27312 - PLATE, RETAINER
27312-72100

8ARFTS,3ZRFAE..ASU6#,ZSU6#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460

8ARFTS..ASU6#

 1
27360 - COIL ASSY, ALTERNATOR
27360-36180

8ARFTS..ASU6#

 1
27360-36181

8ARFTS..ASU6#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-27060

8ARFTS..ASU6#

 1
27384 - WASHER
27384-50030

8ARFTS..ASU6#

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

8ARFTS,3ZRFAE..ASU6#,ZSU6#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W170

8ARFTS..ASU6#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

8ARFTS,3ZRFAE..ASU6#,ZSU6#

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05284
94150-80600
