VCH28K-QFSDK (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - Jan 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-0501)

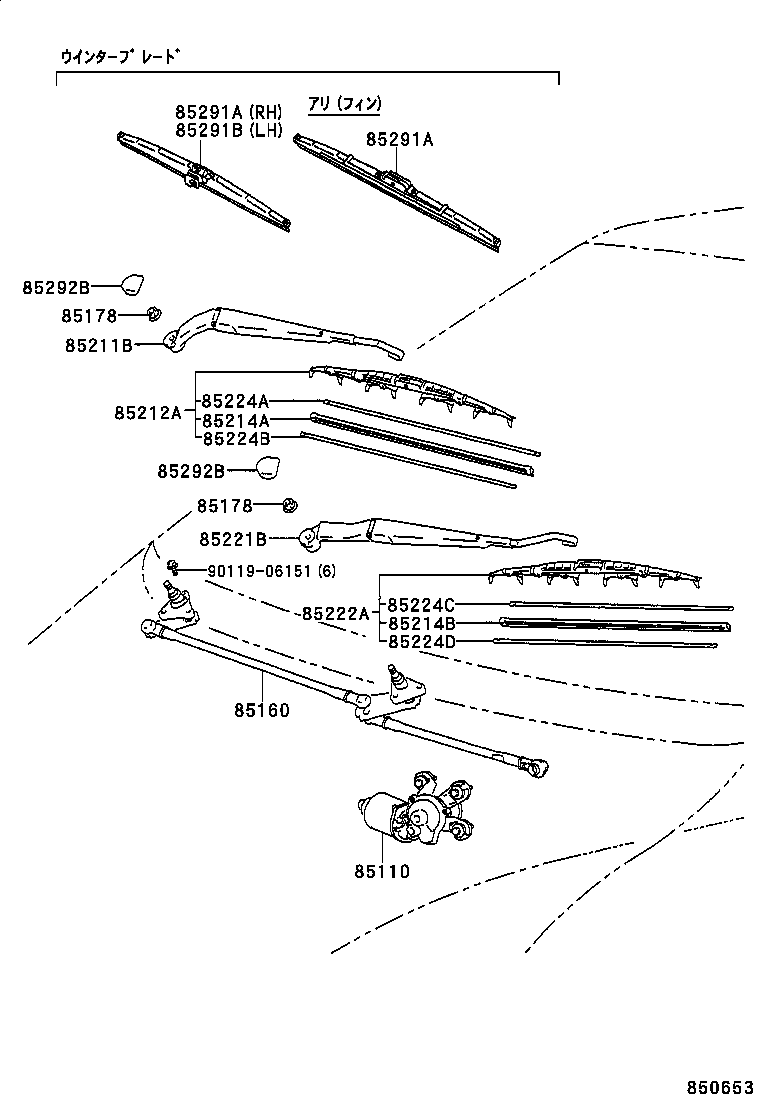

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 85291A 85291A 85291B 85292B 85292B 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-26120

KCH1#,VCH1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-26150

KCH1#,VCH1#,2#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-26061

KCH1#,VCH1#,2#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KCH1#,VCH1#,2#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

KCH1#,VCH1#,2#

 2
85211B - ARM, FRONT WIPER, RH
85211-26070

KCH1#,VCH1#,2#

 1
85212A - BLADE, FR WIPER, RH
85212-26090

KCH1#,VCH1#,2#

 1
85214A - RUBBER, WIPER, RH
85214-50120

KCH1#,VCH1#,2#

 1
85214B - RUBBER, WIPER, LH
85214-20280

KCH1#,VCH1#,2#

 1
85221B - ARM, FRONT WIPER, LH
85221-26060

KCH1#,VCH1#,2#

 1
85222A - BLADE, FR WIPER, LH
85222-26070

KCH1#,VCH1#,2#

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-26070

KCH1#,VCH1#,2#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-26080

KCH1#,VCH1#,2#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-26020

KCH1#,VCH1#,2#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-26020

KCH1#,VCH1#,2#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-50070

KCH1#,VCH1#,2#

有り(ﾌｨﾝ)

 1
85291-50060

KCH1#,VCH1#,2#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-50070

KCH1#,VCH1#,2#

有り(ﾌｨﾝ)

 1
85291-50060

KCH1#,VCH1#,2#

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-24110

KCH1#,VCH1#,2#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-26010

KCH1#,VCH1#,2#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-26010

KCH1#,VCH1#,2#

 2
Common parts
90119-06151
