VCH28K-QFSDK (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - Jan 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

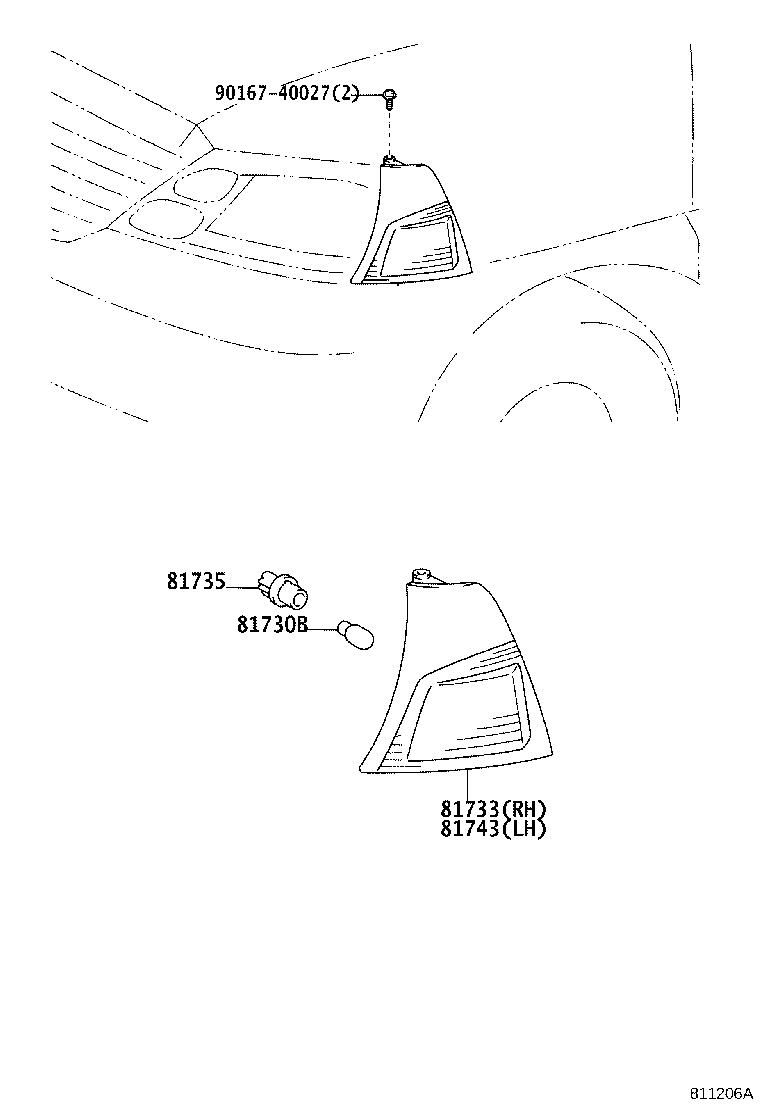

Click highlighted areas on diagram

diagram 81730B 81733 81735 81743 9016740027
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

VCH2#

12V 5W

 2
81733 - BODY, SIDE TURN SIGNAL LAMP, RH
81733-26020

VCH2#

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81615-12590

VCH2#

 2
81743 - BODY, SIDE TURN SIGNAL LAMP, LH
81743-26020

VCH2#

 1
Common parts
90167-40027
