VCH28K-QFSDK (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - Jan 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0501)

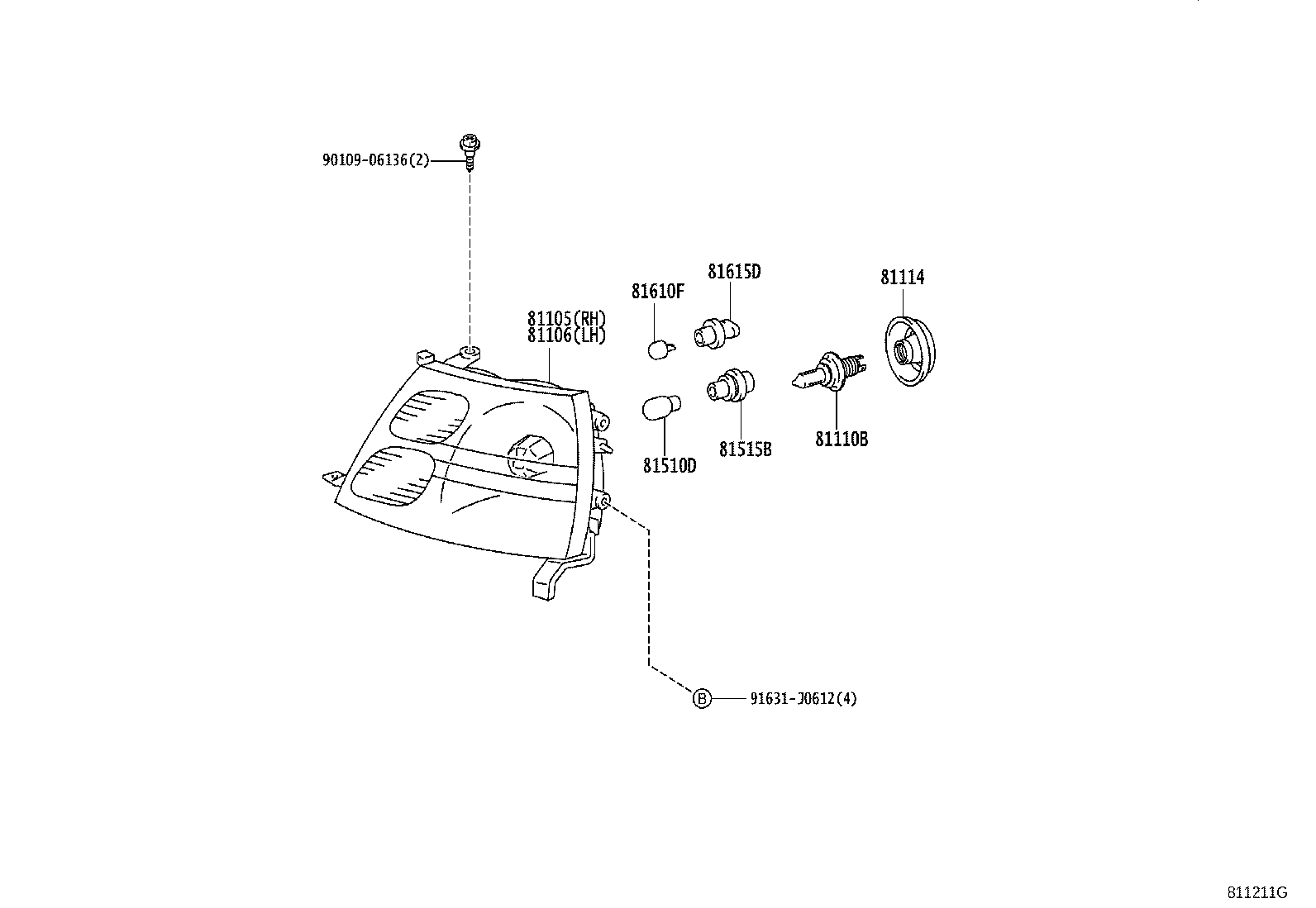

Click highlighted areas on diagram

diagram 81105 81106 81110B 81114 81510D 81515B 81610F 81615D 9010906136 91631J0612
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-26330

KCH1#,VCH1#,2#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-26330

KCH1#,VCH1#,2#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

KCH1#,VCH1#,2#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81139-87641

VCH2#

 2
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

VCH2#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

VCH2#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

VCH2#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81615-12590

VCH2#

 2
Common parts
90109-06136
91631-J0612
