VCH28K-QFSDK (1999)
Toyota Granvia/Grand Hiace
Production
Jul 1999
-
Jan 2005
Engine
5VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )VCH2#

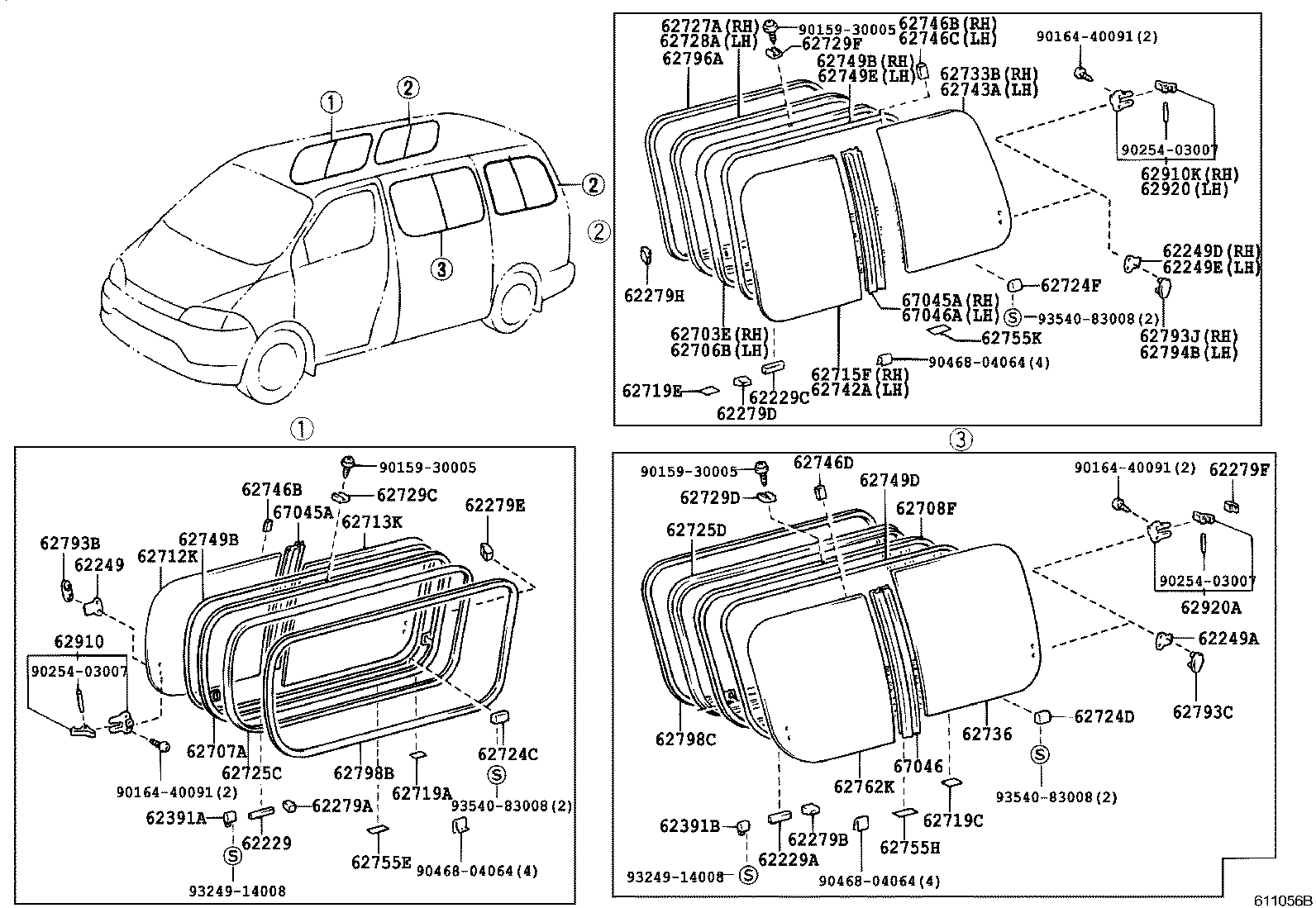

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62229 - PACKING, SIDE WINDOW | ||||
| 62229-95J00 |
VCH2# |
2 | ||
| 62229A - PACKING, SIDE WINDOW, NO.2 | ||||
| 62229-95J00 |
VCH2# |
2 | ||
| 62229C - PACKING, SIDE WINDOW | ||||
| 62229-95J00 |
VCH2# |
3 | ||
| 62249 - PLATE, SIDE WINDOW, RH | ||||
| 62249-95700 |
VCH2# |
2 | ||
| 62249A - PLATE, SIDE WINDOW, LH | ||||
| 62249-95700 |
VCH2# |
2 | ||
| 62249D - PLATE, SIDE WINDOW | ||||
| 62249-95700 |
VCH2# |
2 | ||
| 62249E - PLATE, SIDE WINDOW | ||||
| 62249-95700 |
VCH2# |
1 | ||
| 62279A - SPACER, SIDE WINDOW FRAME | ||||
| 62279-26040 |
VCH2# |
1 | ||
| 62279B - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-26040 |
VCH2# |
1 | ||
| 62279D - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-26040 |
VCH2# |
3 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-26030 |
VCH2# |
1 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-26030 |
VCH2# |
1 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-26030 |
VCH2# |
1 | ||
| 62391A - STOPPER, SIDE WINDOW, NO.1 FRONT RH | ||||
| 62391-28010 |
VCH2# |
1 | ||
| 62391B - STOPPER, SIDE WINDOW, NO.1 FRONT LH | ||||
| 62391-28010 |
VCH2# |
1 | ||
| 62703E - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62705-26020 |
VCH2# |
1 | ||
| 62706B - FRAME SUB-ASSY, SIDE DOOR WINDOW, LH | ||||
| 62706-26041 |
VCH2# |
1 | ||
| 62706-26040 |
VCH2# |
1 | ||
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 62707-26010 |
VCH2# |
1 | ||
| 62708F - FRAME SUB-ASSY, SIDE FRONT WINDOW, LH | ||||
| 67044-26010 |
VCH2# |
1 | ||
| 62712K - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62732-26120 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62713K - GLASS, SIDE WINDOW, REAR RH | ||||
| 62713-26090 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-26730 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-26010 |
VCH2# |
1 | ||
| 62719C - PACKING, SIDE FRONT WINDOW | ||||
| 62719-26010 |
VCH2# |
1 | ||
| 62719E - PACKING, SIDE FRONT WINDOW | ||||
| 62719-26010 |
VCH2# |
2 | ||
| 62719-26020 |
VCH2# 高さ=9 |
2 | ||
| 62719-26010 |
VCH2# 高さ=18 |
4 | ||
| 62724C - STOP, SIDE FRONT WINDOW GLASS, RH | ||||
| 62724-26010 |
VCH2# |
1 | ||
| 62724D - STOP, SIDE FRONT WINDOW GLASS, LH | ||||
| 62724-26010 |
VCH2# |
1 | ||
| 62724F - STOP, SIDE REAR WINDOW GLASS, LH | ||||
| 62724-26010 |
VCH2# |
1 | ||
| 62725C - RUN, SIDE FRONT WINDOW GLASS | ||||
| 62725-26011 |
VCH2# |
1 | ||
| 62725-26010 |
VCH2# |
1 | ||
| 62725D - RUN, SIDE FRONT WINDOW GLASS | ||||
| 62756-26011 |
VCH2# |
1 | ||
| 62756-26010 |
VCH2# |
1 | ||
| 62727A - RUN, SIDE REAR WINDOW GLASS, RH | ||||
| 62727-26021 |
VCH2# |
1 | ||
| 62727-26020 |
VCH2# |
1 | ||
| 62728A - RUN, SIDE REAR WINDOW GLASS, LH | ||||
| 62728-26042 |
VCH2# |
1 | ||
| 62728-26041 |
VCH2# |
1 | ||
| 62728-26040 |
VCH2# |
1 | ||
| 62729C - PAD, REAR WINDOW CENTER SASH, RH | ||||
| 62729-90K01 |
VCH2# |
1 | ||
| 62729D - PAD, REAR WINDOW CENTER SASH, LH | ||||
| 62729-90K01 |
VCH2# |
1 | ||
| 62729F - PAD, REAR WINDOW CENTER SASH, LH | ||||
| 62729-90K01 |
VCH2# |
1 | ||
| 62733B - GLASS, SIDE REAR WINDOW, REAR RH | ||||
| 62717-26100 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62736 - GLASS, SLIDE DOOR WINDOW, REAR LH | ||||
| 62736-26100 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62742A - GLASS, SIDE REAR WINDOW, FRONT LH | ||||
| 62716-26710 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62716-26711 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62743A - GLASS, SIDE REAR WINDOW, REAR LH | ||||
| 62718-26110 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62746B - PACKING, QUARTER WINDOW, RH | ||||
| 62746-26020 |
VCH2# |
4 | ||
| 62746B - PACKING, QUARTER WINDOW, RH | ||||
| 62746-26020 |
VCH2# |
4 | ||
| 62746C - WEATHERSTRIP, SIDE WINDOW GLASS, LH | ||||
| 62746-26020 |
VCH2# |
4 | ||
| 62746D - PACKING, QUARTER WINDOW, LH | ||||
| 62746-26020 |
VCH2# |
4 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-26110 |
VCH2# ﾘﾔ |
1 | ||
| 62749-26060 |
VCH2# |
1 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-26110 |
VCH2# ﾘﾔ |
1 | ||
| 62749-26060 |
VCH2# |
1 | ||
| 62749D - SEAL, SIDE WINDOW FLAME | ||||
| 62749-26100 |
VCH2# |
1 | ||
| 62749E - SEAL, SIDE WINDOW FRAME | ||||
| 62749-26090 |
VCH2# |
1 | ||
| 62755E - PACKING, SIDE FRONT WINDOW, LOWER | ||||
| 62755-95702 |
VCH2# |
6 | ||
| 62755H - PACKING, SIDE FRONT WINDOW, LOWER | ||||
| 62755-95702 |
VCH2# |
6 | ||
| 62755K - PACKING, SIDE FRONT WINDOW, LOWER | ||||
| 62755-95702 |
VCH2# |
10 | ||
| 62762K - GLASS, SIDE DOOR WINDOW, FRONT LH | ||||
| 62712-26120 |
VCH2# *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
VCH2# |
2 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-95J01 |
VCH2# |
1 | ||
| 62793J - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J01 |
VCH2# |
2 | ||
| 62794B - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J01 |
VCH2# |
1 | ||
| 62796A - MOULDING, SIDE REAR WINDOW | ||||
| 62796-26021 |
VCH2# 左側,右側 |
1 | ||
| 62796-26020 |
VCH2# 左側,右側 |
1 | ||
| 62798B - MOULDING, SIDE WINDOW, FRONT NO.1 RH | ||||
| 62798-26010 |
VCH2# |
1 | ||
| 62798-26011 |
VCH2# |
1 | ||
| 62798C - MOULDING, SIDE WINDOW, FRONT NO.3 LH | ||||
| 62799-26010 |
VCH2# |
1 | ||
| 62799-26011 |
VCH2# |
1 | ||
| 62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH | ||||
| 62910-95703 |
VCH2# |
2 | ||
| 62910K - LOCK ASSY, QUARTER WINDOW, RH | ||||
| 62910-95703 |
VCH2# |
2 | ||
| 62920 - LOCK ASSY, QUARTER WINDOW, LH | ||||
| 62910-95703 |
VCH2# |
2 | ||
| 62920A - LOCK ASSY, SIDE FRONT WINDOW, LH | ||||
| 62910-95703 |
VCH2# |
1 | ||
| 67045A - FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH | ||||
| 67045-26010 |
VCH2# |
1 | ||
| 67045-26020 |
VCH2# ﾘﾔ |
1 | ||
| 67045A - FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH | ||||
| 67045-26010 |
VCH2# |
1 | ||
| 67045-26020 |
VCH2# ﾘﾔ |
1 | ||
| 67046 - FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH | ||||
| 67046-26010 |
VCH2# |
1 | ||
| 67046A - FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH | ||||
| 67046-26020 |
VCH2# |
1 | ||
| Common parts | ||||
| 90159-30005 | ||||
| 90164-40091 | ||||
| 90254-03007 | ||||
| 90468-04064 | ||||
| 93249-14008 | ||||
| 93540-83008 | ||||
