VCH28K-QFSDK (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - Jan 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

Click highlighted areas on diagram

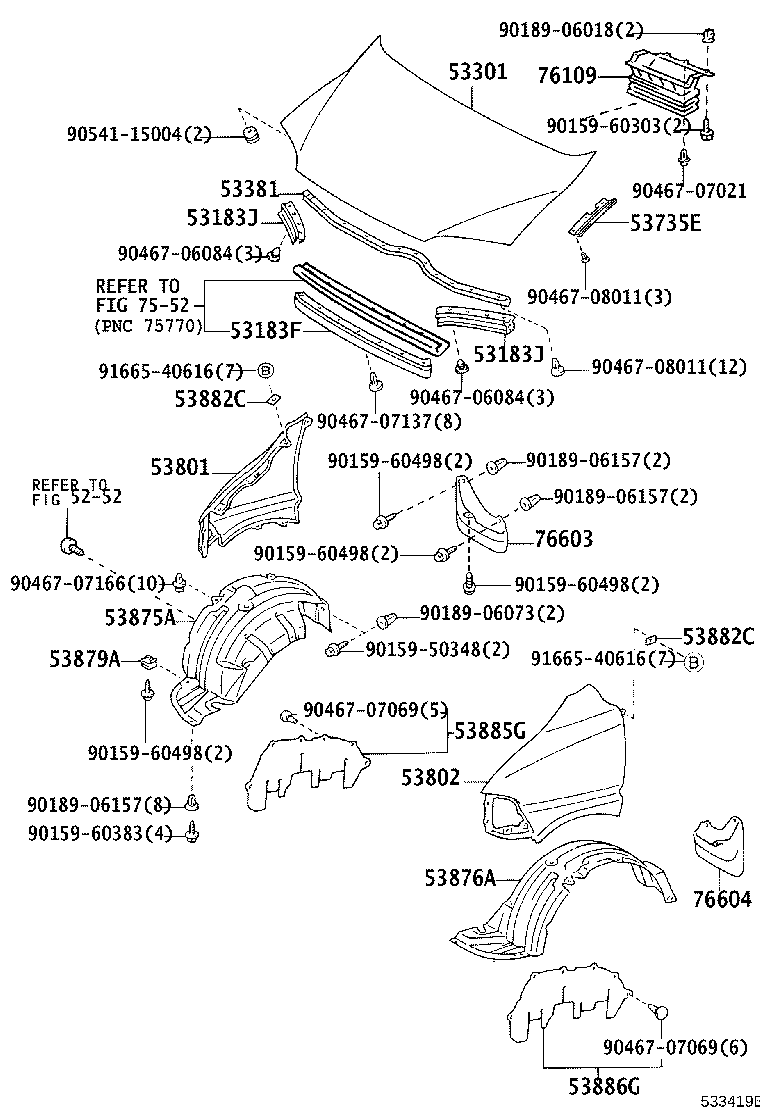

diagram 5252 53183F 53183J 53183J 53301 53381 53735E 53801 53802 53875A 53876A 53879A 53882C 53882C 53885G 53886G 7552 76109 76603 76604 9015950348 9015960303 9015960383 9015960498 9015960498 9015960498 9015960498 9018906018 9018906073 9018906157 9018906157 9018906157 9046706084 9046706084 9046707021 9046707069 9046707069 9046707137 9046707166 9046708011 9046708011 9054115004 9166540616 9166540616
Part # Description Qty Price
53183F - SEAL, HEADLAMP COVER TO HOOD
53183-26060

KCH1#,VCH1#,2#

 1
53183J - SEAL, HEADLAMP COVER TO HOOD
53183-26080

KCH1#,VCH1#,2#

左側

 1
53183-26070

KCH1#,VCH1#,2#

右側

 1
53183J - SEAL, HEADLAMP COVER TO HOOD
53183-26080

KCH1#,VCH1#,2#

左側

 1
53183-26070

KCH1#,VCH1#,2#

右側

 1
53301 - HOOD SUB-ASSY
53301-26050

VCH1#,2#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-26010

KCH1#,VCH1#,2#

 1
53735E - SEAL, FRONT FENDER APRON, UPPER
53735-26030

KCH1#,VCH1#,2#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-26030

KCH1#,VCH1#,2#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-26040

KCH1#,VCH1#,2#

 1
53875A - LINER, FRONT FENDER, RH
53875-26030

KCH1#,VCH1#,2#

 1
53876A - LINER, FRONT FENDER, LH
53876-26030

KCH1#,VCH1#,2#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-16010

KCH1#,VCH1#,2#

 2
53882C - SEAL, FRONT FENDER MAIN
53882-26010

KCH1#,VCH1#,2#

 4
53882C - SEAL, FRONT FENDER MAIN
53882-26010

KCH1#,VCH1#,2#

 4
53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53807-26020

KCH16,VCH16,28

 1
53886G - SEAL, FENDER APRON MUDGUARD, LH
53808-26020

KCH16,VCH16,28

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-26020B7

VCH28

SILVER ME.,2GD

 1
76621-26020A1

VCH2#

SUPER WHITE 2,040

 1
76621-26020A4

VCH2#

WHITE,058

 1
76621-26020B3

VCH2#

SILVER ME,199

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-26030B7

VCH28

SILVER ME.,2GD

 1
76622-26030A0

VCH2#

SUPER WHITE 2,040

 1
76622-26030A3

VCH2#

WHITE,058

 1
76622-26030B3

VCH2#

SILVER ME,199

 1
Common parts
90159-50348
90159-60303
90159-60383
90159-60498
90189-06018
90189-06073
90189-06157
90467-06084
90467-07021
90467-07069
90467-07137
90467-07166
90467-08011
90541-15004
91665-40616
Linked diagrams
5252
7552
