VCH28K-QFSDK (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - Jan 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )VCH2#

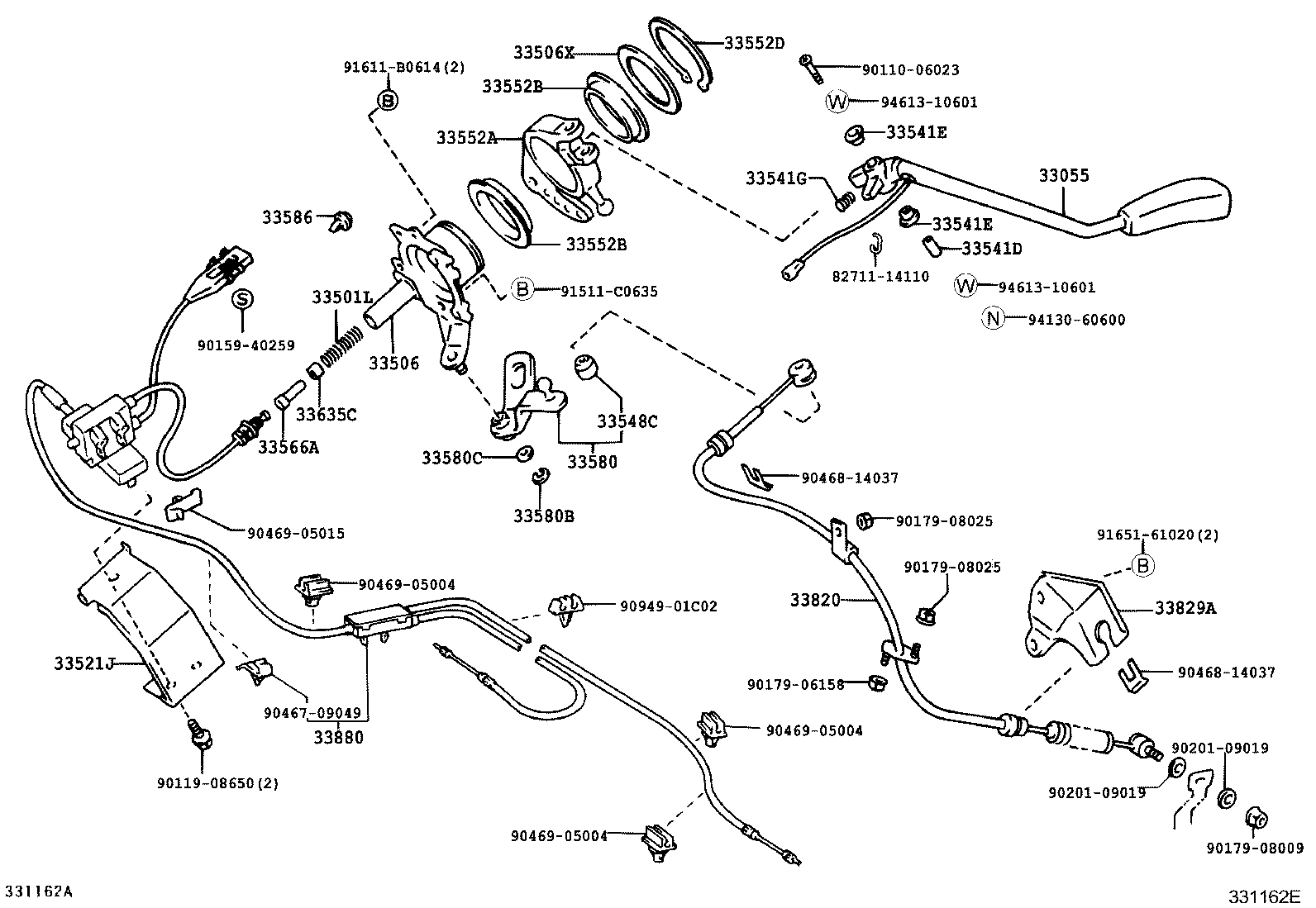

Click highlighted areas on diagram

diagram 33055 33501L 33506 33506X 33521J 33541D 33541E 33541E 33541G 33548C 33552A 33552B 33552B 33552D 33566A 33580 33580B 33580C 33586 33635C 33820 33829A 33880 8271114110 9011006023 9011908650 9015940259 9017906158 9017908009 9017908025 9017908025 9020109019 9020109019 9046709049 9046814037 9046814037 9046905004 9046905004 9046905004 9046905015 9094901C02 91511C0635 91611B0614 9165161020 9413060600 9461310601 9461310601
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-26080

KCH1#,VCH1#,2#

 1
33501L - SPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)
90501-06085

KCH1#,VCH1#,2#

 1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-26050

KCH1#,VCH1#,2#

 1
33506X - SPACER (FOR SHIFT LEVER ARM)
90560-47002

KCH1#,VCH1#,2#

厚さ=1.2,内径=47.5

 1
90560-47001

KCH1#,VCH1#,2#

厚さ=1.0,内径=47.5

 1
33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33521-26110

KCH1#,VCH1#,2#

 1
33541D - COLLAR (FOR COLUMN SHIFT LEVER)
90387-06062

KCH1#,VCH1#,2#

 1
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017

KCH1#,VCH1#,2#

 2
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017

KCH1#,VCH1#,2#

 2
33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
90501-16146

KCH1#,VCH1#,2#

 1
33548C - BUSH, SHIFT LEVER (FOR COLUMN SHIFT)
33548-12021

KCH1#,VCH1#,2#

 1
33552A - ARM, SHIFT LEVER
33552-26020

KCH1#,VCH1#,2#

 1
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001

KCH1#,VCH1#,2#

 2
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001

KCH1#,VCH1#,2#

 2
33552D - RING, SNAP (FOR SHIFT LEVER ARM)
90520-45010

KCH1#,VCH1#,2#

 1
33566A - PIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)
33566-26020

KCH1#,VCH1#,2#

 1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-26030

KCH1#,VCH1#,2#

 1
33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
96160-01000

KCH1#,VCH1#,2#

 1
33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK)
90560-11028

KCH1#,VCH1#,2#

 1
33586 - STOPPER, CONTROL SHIFT LEVER
33586-28012

KCH1#,VCH1#,2#

 1
33635C - GUIDE, WIRE
33635-28040

KCH1#,VCH1#,2#

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-26150

VCH1#,2#

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26030

VCH1#,2#

 1
33829-26050

VCH2#

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-26060

KCH1#,VCH1#,2#..4D

ｶｲﾃﾝ ﾌﾛﾝﾄ ｼ-ﾄ

 1
33880-26061

KCH1#,VCH1#,2#..4D

ｶｲﾃﾝ ﾌﾛﾝﾄ ｼ-ﾄ

 1
Common parts
82711-14110
90110-06023
90119-08650
90159-40259
90179-06158
90179-08009
90179-08025
90201-09019
90467-09049
90468-14037
90469-05004
90469-05015
90949-01C02
91511-C0635
91611-B0614
91651-61020
94130-60600
94613-10601
