VCH16W-PFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

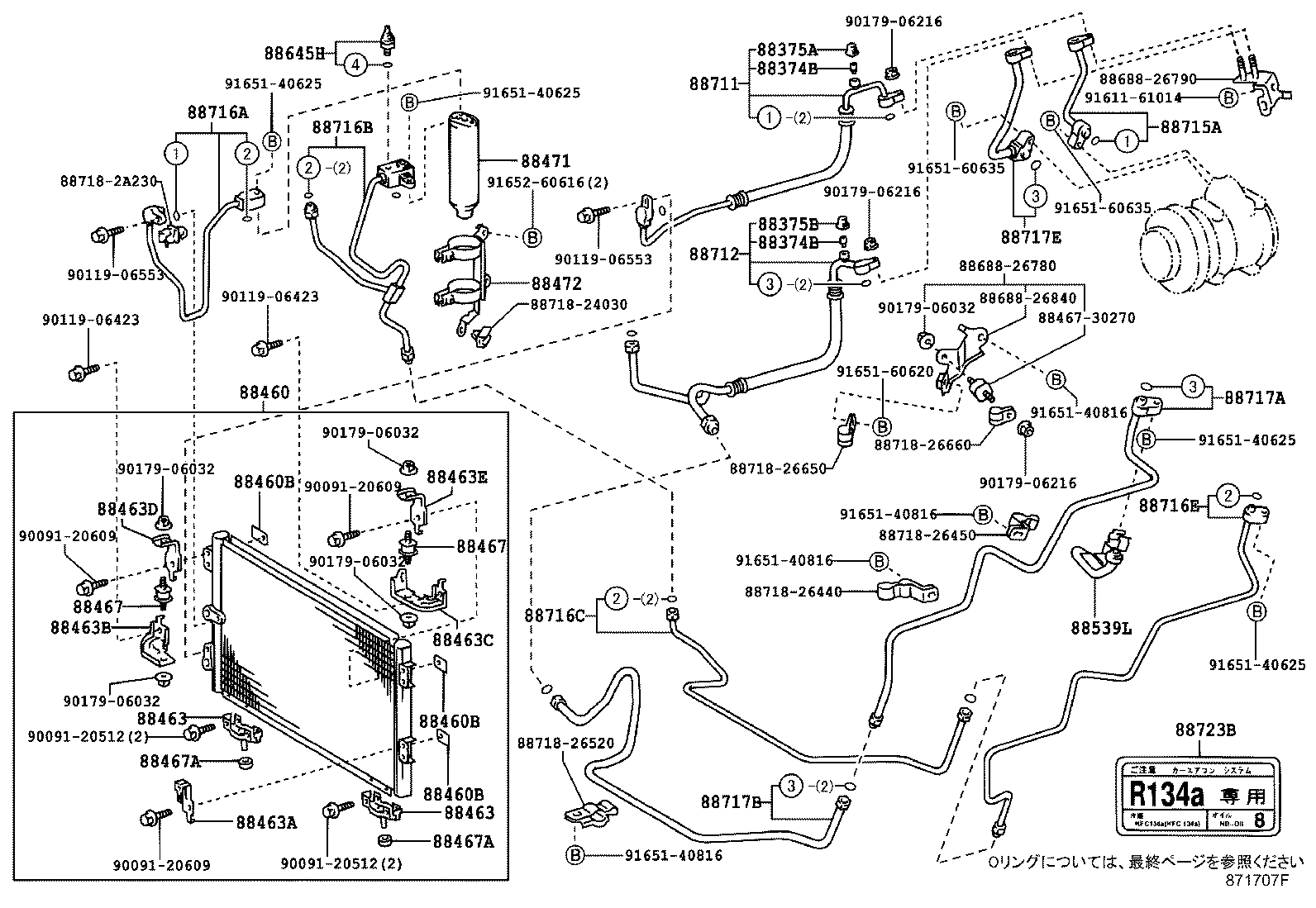

ILLUST NO. 1 OF 4(9708-9907)VCH1#

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ﾅｼ(ｸ-ﾙﾎﾞﾂｸｽ)

diagram 88374B 88374B 88375A 88375B 88460 88460B 88460B 88460B 88463 88463 88463A 88463B 88463C 88463D 88463E 88467 88467 8846730270 88467A 88467A 88471 88472 88539L 88645H 8868826780 8868826790 8868826840 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717B 88717E 8871824030 8871826440 8871826450 8871826520 8871826650 8871826660 887182A230 88723B 9009120512 9009120512 9009120609 9009120609 9009120609 9011906423 9011906423 9011906553 9011906553 9017906032 9017906032 9017906032 9017906032 9017906032 9017906216 9017906216 9017906216 9161161014 9165140625 9165140625 9165140625 9165140625 9165140816 9165140816 9165140816 9165140816 9165160620 9165160635 9165160635 9165260616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KCH10,16,RCH11,VCH1#

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

KCH10,16,RCH11,VCH1#

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

KCH1#,RCH11,VCH1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

KCH1#,VCH1#

 1
88460 - CONDENSER ASSY, COOLER
88460-26240

KCH10,16

 1
88460-26242

KCH1#,VCH1#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-26470

KCH1#,VCH1#

 3
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-26470

KCH1#,VCH1#

 3
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-26470

KCH1#,VCH1#

 3
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-26110

KCH1#,RCH11,VCH1#

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-26160

KCH1#,RCH11,VCH1#

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-26170

KCH1#,RCH11,VCH1#

 1
88463D - BRACKET, COOLER CONDENSER, NO.5
88463-26180

KCH1#,RCH11,VCH1#

 1
88463E - BRACKET, COOLER CONDENSER, NO.6
88463-26180

KCH1#,RCH11,VCH1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-95704

KCH1#,RCH11,VCH1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-95704

KCH1#,RCH11,VCH1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-95D01

KCH1#,RCH11,VCH1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-95D01

KCH1#,RCH11,VCH1#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28100

KCH1#,RCH11,VCH1#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-26100

KCH1#,RCH11,VCH1#

 1
88539L - HOSE, DRAIN COOLER
88539-26300

KCH10,16,RCH11

ｸ-ﾙﾎﾞﾂｸｽ

 1
88539-26310

KCH1#,RCH11,VCH1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-26020

KCH10,16

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-26841

VCH1#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-26610

KCH10,16

 1
88712-26760

VCH1#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26300

VCH1#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2F241

KCH1#,RCH11,VCH1#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2F020

KCH10,16

 1
88716-2F410

VCH1#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2F400

VCH1#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-26710

KCH10,16,RCH11

ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ ｸ-ﾙ & ﾎﾂﾄ)

 1
88716-26690

KCH1#,RCH11,VCH1#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-26501

KCH1#,RCH11,VCH1#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2F100

VCH1#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-2F090

VCH1#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

KCH1#,RCH11,VCH1#

 1
Common parts
88467-30270
88688-26780
88688-26790
88688-26840
88718-24030
88718-26440
88718-26450
88718-26520
88718-26650
88718-26660
88718-2A230
90091-20512
90091-20609
90119-06423
90119-06553
90179-06032
90179-06216
91611-61014
91651-40625
91651-40816
91651-60620
91651-60635
91652-60616

ILLUST NO. 1 OF 4(9708-9907)VCH1#

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ)

diagram 88374B 88374B 88375A 88375B 88460 88460B 88460B 88460B 88463 88463 88463A 88463B 88463C 88463D 88463E 88467 88467 88467A 88467A 88471 88472 88539L 88645H 8868826620 8868826790 8868826790 88690K 88710 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717B 88717E 8871824030 8871826440 8871826450 8871826500 8871826650 8871826660 887182A230 8871832160 88723B 9009120512 9009120512 9009120609 9009120609 9009120609 9009300518 9011906423 9011906423 9011906553 9011906553 9017906032 9017906032 9017906032 9017906032 9017906216 9017906216 9017906216 9161161014 9165140625 9165140625 9165140625 9165140625 9165140816 9165140816 9165140816 9165140816 9165160620 9165160635 9165160635 9165260616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KCH10,16,RCH11,VCH1#

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

KCH10,16,RCH11,VCH1#

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

KCH1#,RCH11,VCH1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

KCH1#,VCH1#

 1
88460 - CONDENSER ASSY, COOLER
88460-26240

KCH10,16

 1
88460-26242

KCH1#,VCH1#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-26470

KCH1#,VCH1#

 3
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-26470

KCH1#,VCH1#

 3
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-26470

KCH1#,VCH1#

 3
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-26110

KCH1#,RCH11,VCH1#

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-26160

KCH1#,RCH11,VCH1#

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-26170

KCH1#,RCH11,VCH1#

 1
88463D - BRACKET, COOLER CONDENSER, NO.5
88463-26180

KCH1#,RCH11,VCH1#

 1
88463E - BRACKET, COOLER CONDENSER, NO.6
88463-26180

KCH1#,RCH11,VCH1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-95704

KCH1#,RCH11,VCH1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-95704

KCH1#,RCH11,VCH1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-95D01

KCH1#,RCH11,VCH1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-95D01

KCH1#,RCH11,VCH1#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28100

KCH1#,RCH11,VCH1#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-26100

KCH1#,RCH11,VCH1#

 1
88539L - HOSE, DRAIN COOLER
88539-26300

KCH10,16,RCH11

ｸ-ﾙﾎﾞﾂｸｽ

 1
88539-26310

KCH1#,RCH11,VCH1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-26020

KCH10,16

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-26841

VCH1#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-26610

KCH10,16

 1
88712-26760

VCH1#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26300

VCH1#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2F241

KCH1#,RCH11,VCH1#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2F020

KCH10,16

 1
88716-2F410

VCH1#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2F400

VCH1#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-26710

KCH10,16,RCH11

ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ ｸ-ﾙ & ﾎﾂﾄ)

 1
88716-26690

KCH1#,RCH11,VCH1#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-26501

KCH1#,RCH11,VCH1#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2F100

VCH1#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-2F090

VCH1#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

KCH1#,RCH11,VCH1#

 1
Common parts
88688-26620
88688-26790
88718-24030
88718-26440
88718-26450
88718-26500
88718-26650
88718-26660
88718-2A230
88718-32160
90091-20512
90091-20609
90093-00518
90119-06423
90119-06553
90179-06032
90179-06216
91611-61014
91651-40625
91651-40816
91651-60620
91651-60635
91652-60616
