Toyota Granvia/grand hiace VCH16 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

VCH16W-GRSGK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - May 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

ﾚﾊﾞ-ｼｷﾌﾛﾝﾄﾋ-ﾀｺﾝﾄﾛ-ﾙ

Part #	Description	Period	Qty

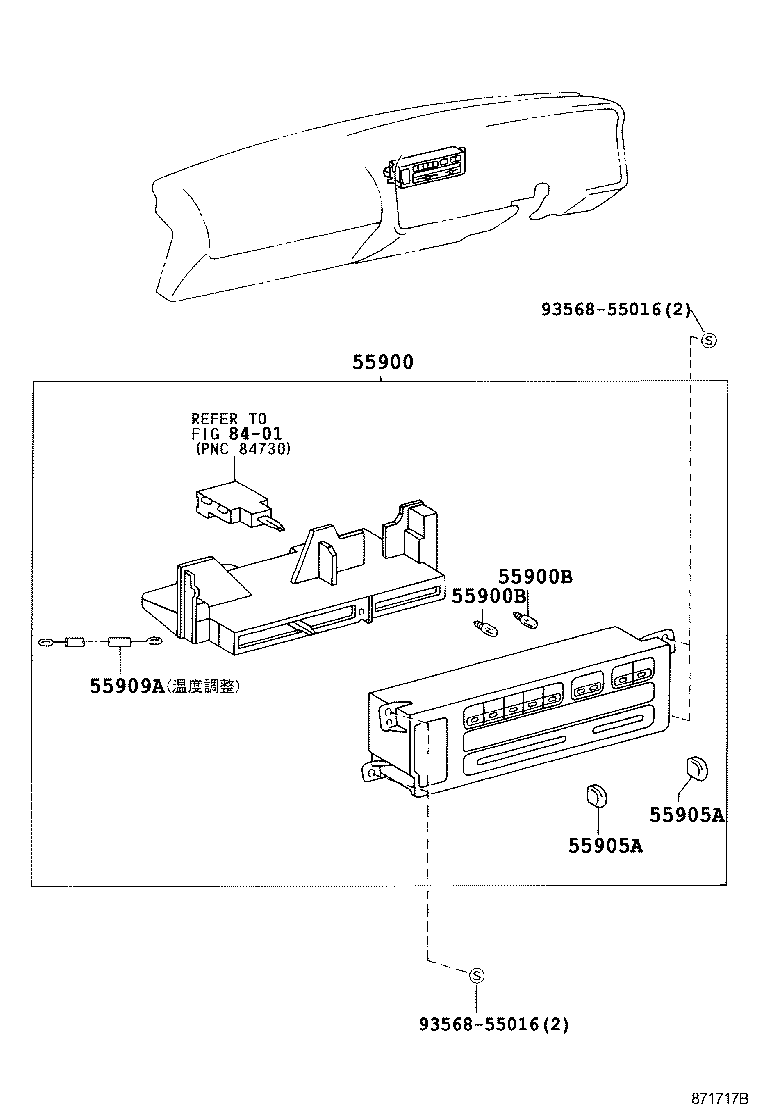

55900 - CONTROL ASSY, AIR CONDITIONER
55900-26150	KCH10,16,RCH11..G	08/1995 - 08/1996	1
55900-26290	KCH1#,RCH11,VCH1#..G	08/1997 - 07/1999	1
55900B - BULB, AIR CONDITIONER CONTROL
84999-70007	KCH10,16,RCH11..G 14V 1.4W	08/1995 - 08/1997	2
84999-70018	KCH1#,RCH11,VCH1#..G 14V 1.4W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	1
90010-03009	KCH1#,RCH11,VCH1# 7.5V 0.46W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	2
84999-60700	KCH1#,VCH16..4D 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	07/1999 - 05/2002	4
55900B - BULB, AIR CONDITIONER CONTROL
84999-70007	KCH10,16,RCH11..G 14V 1.4W	08/1995 - 08/1997	2
84999-70018	KCH1#,RCH11,VCH1#..G 14V 1.4W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	1
90010-03009	KCH1#,RCH11,VCH1# 7.5V 0.46W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	2
84999-60700	KCH1#,VCH16..4D 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	07/1999 - 05/2002	4
55905A - KNOB, HEATER CONTROL
55905-20380	KCH10,16,RCH11,VCH1#..G	08/1995 - 07/1999	2
55905A - KNOB, HEATER CONTROL
55905-20380	KCH10,16,RCH11,VCH1#..G	08/1995 - 07/1999	2
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-26030	KCH10,16,RCH11..G	08/1995 - 08/1996	1
55909-26050	KCH1#,RCH11,VCH1#..G	08/1997 - 07/1999	1
Common parts
93568-55016
Linked diagrams
8401

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋｰﾀｺﾝﾄﾛｰﾙ

Part #	Description	Period	Qty
55900B - BULB, AIR CONDITIONER CONTROL
84999-70007	KCH10,16,RCH11..G 14V 1.4W	08/1995 - 08/1997	2
84999-70018	KCH1#,RCH11,VCH1#..G 14V 1.4W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	1
90010-03009	KCH1#,RCH11,VCH1# 7.5V 0.46W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	2
84999-60700	KCH1#,VCH16..4D 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	07/1999 - 05/2002	4
55900B - BULB, AIR CONDITIONER CONTROL
84999-70007	KCH10,16,RCH11..G 14V 1.4W	08/1995 - 08/1997	2
84999-70018	KCH1#,RCH11,VCH1#..G 14V 1.4W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	1
90010-03009	KCH1#,RCH11,VCH1# 7.5V 0.46W,ｷｬｯﾌﾟ付き	08/1997 - 07/1999	2
84999-60700	KCH1#,VCH16..4D 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	07/1999 - 05/2002	4

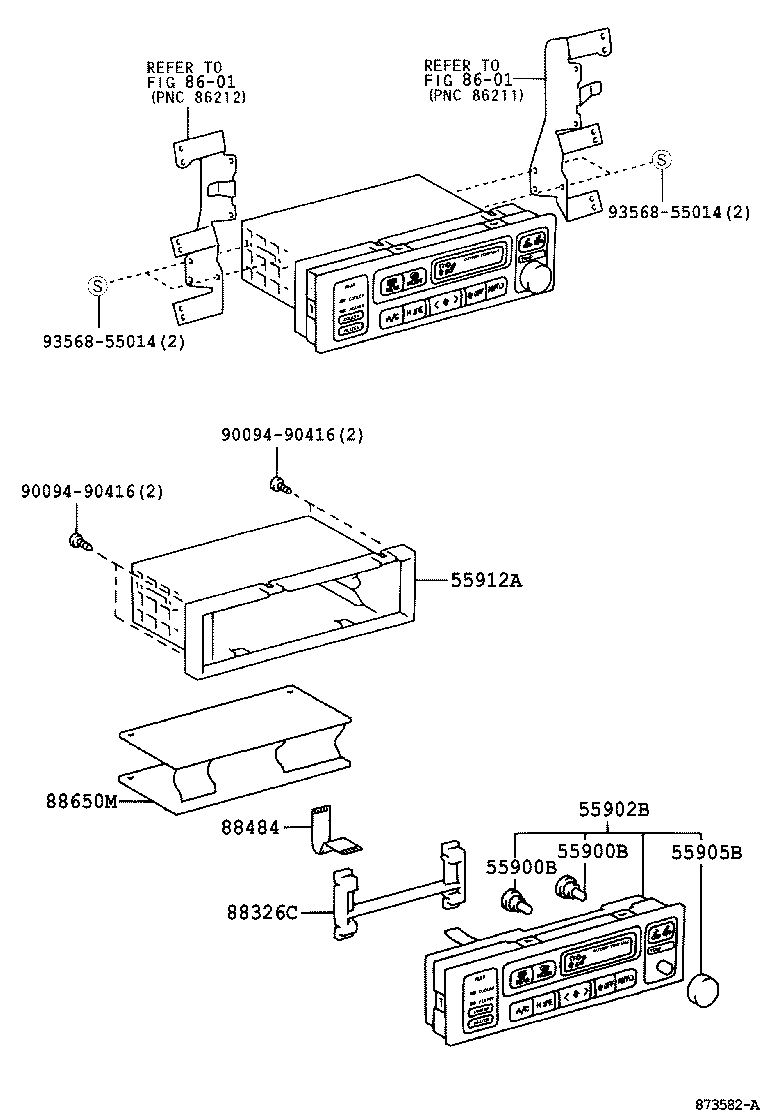

55902B - CONTROL SUB-ASSY, HEATER
55902-26050	KCH1#,RCH11,VCH1#	08/1997 - 07/1999	1
55902-26090	KCH1#,VCH1#	07/1999 - 05/2002	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-30270	KCH1#,VCH1#	07/1999 - 05/2002	1
55912A - HOUSING, HEATER CONTROL
55912-26010	KCH1#,VCH1#	07/1999 - 05/2002	1
88326C - PLATE, COVER
88326-26010	KCH1#,VCH1#	07/1999 - 05/2002	1
88484 - WIRE, COOLER, NO.1
88484-26020	KCH1#,VCH1#	07/1999 - 05/2002	1
88650M - COMPUTER ASSY, AIR CONDITIONER
88650-26330	KCH1#,RCH11,VCH1#..4D	08/1997 - 07/1999	1
88650-26330	KCH1#,VCH1#..4D	07/1999 - 05/2002	1
Common parts
90094-90416
93568-55014
Linked diagrams
8601
