VCH16W-GFSQK (1997)
Toyota Granvia/Grand Hiace
Production
Aug 1997
-
Jul 1999
Engine
5VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-9907)VCH1#

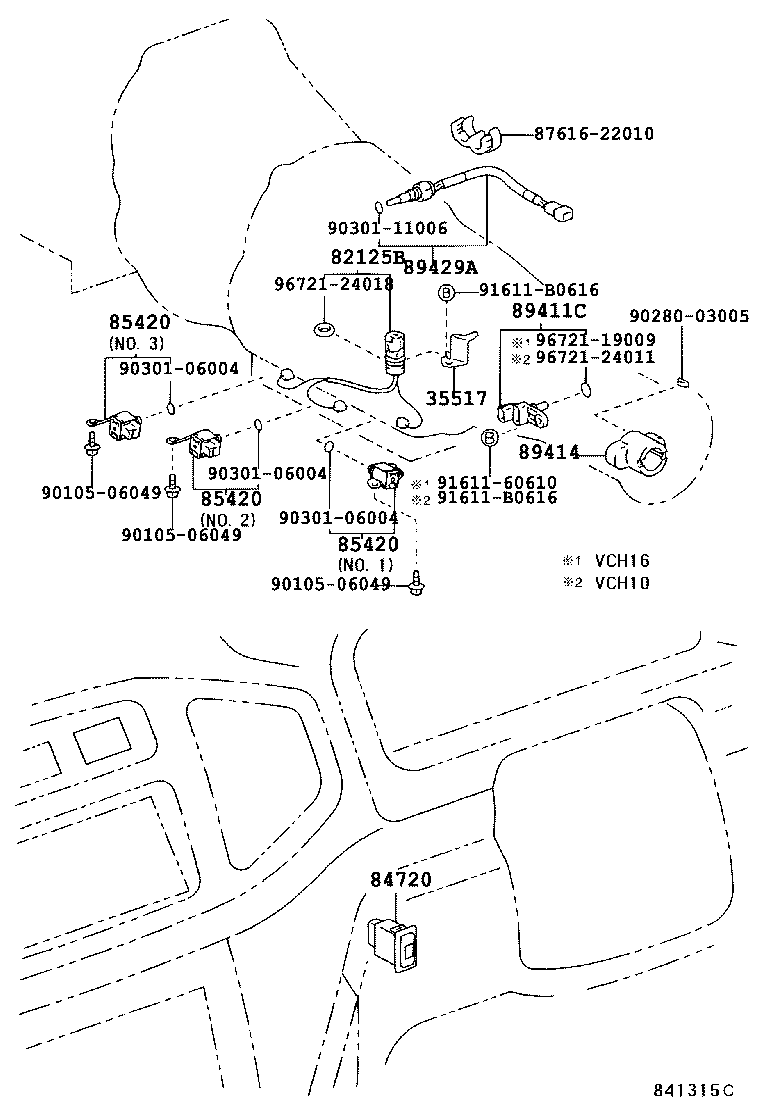

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-30010 |
KCH1#,VCH1# |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-30400 |
KCH1#,VCH1# |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-20160 |
KCH1#,RCH11,VCH1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21090 |
KCH1#,VCH1# NO.1 & NO.2 DENSO |
2 | ||
| 85420-30270 |
KCH1#,VCH1# NO.3,AISIN |
1 | ||
| 85420-30200 |
KCH1#,VCH1# NO.1 & NO.2 |
2 | ||
| 85420-21100 |
KCH1#,VCH1# NO.1 & NO.2 AISIN |
2 | ||
| 85420-30220 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85420-30260 |
KCH1#,VCH1# NO.3,DENSO |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21090 |
KCH1#,VCH1# NO.1 & NO.2 DENSO |
2 | ||
| 85420-30270 |
KCH1#,VCH1# NO.3,AISIN |
1 | ||
| 85420-30200 |
KCH1#,VCH1# NO.1 & NO.2 |
2 | ||
| 85420-21100 |
KCH1#,VCH1# NO.1 & NO.2 AISIN |
2 | ||
| 85420-30220 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85420-30260 |
KCH1#,VCH1# NO.3,DENSO |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21090 |
KCH1#,VCH1# NO.1 & NO.2 DENSO |
2 | ||
| 85420-30270 |
KCH1#,VCH1# NO.3,AISIN |
1 | ||
| 85420-30200 |
KCH1#,VCH1# NO.1 & NO.2 |
2 | ||
| 85420-21100 |
KCH1#,VCH1# NO.1 & NO.2 AISIN |
2 | ||
| 85420-30220 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85420-30260 |
KCH1#,VCH1# NO.3,DENSO |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89429-35042 |
VCH1# |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90105-06049 | ||||
| 90280-03005 | ||||
| 90301-06004 | ||||
| 90301-11006 | ||||
| 91611-60610 | ||||
| 91611-B0616 | ||||
| 96721-19009 | ||||
| 96721-24011 | ||||
| 96721-24018 | ||||
