VCH16W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )5VZFE

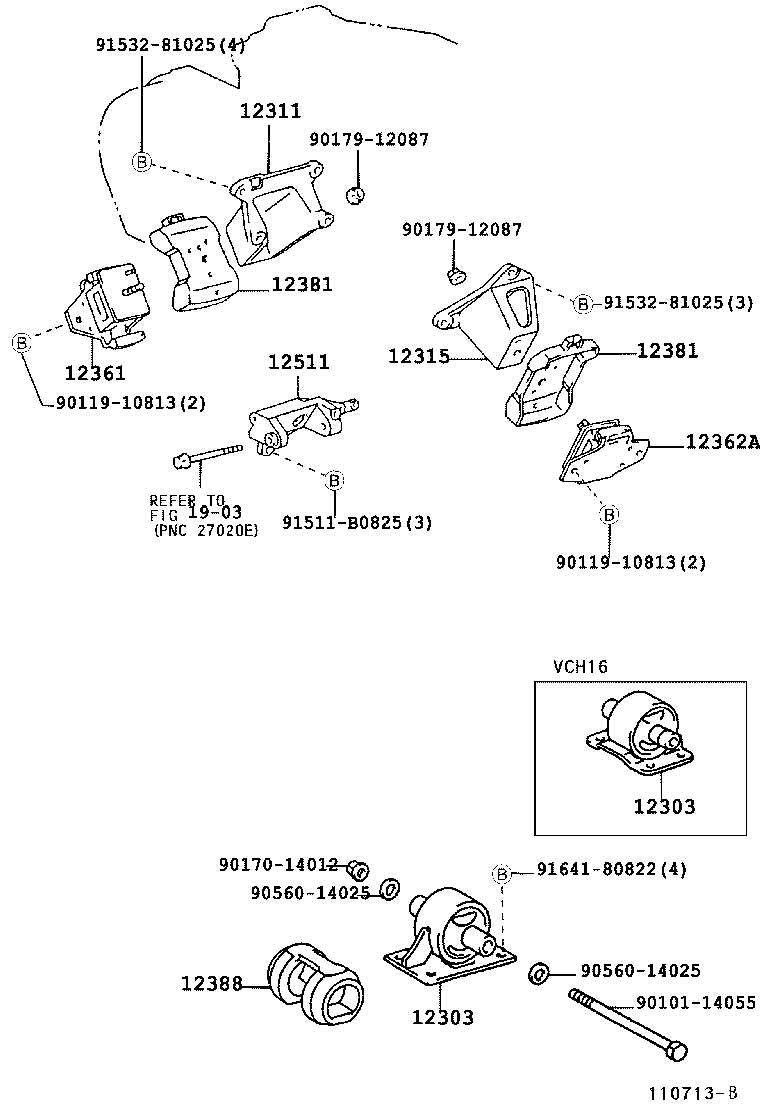

Click highlighted areas on diagram

diagram 12303 12303 12311 12315 12361 12362A 12381 12381 12388 12511 1903 9010114055 9011910813 9011910813 9017014012 9017912087 9017912087 9056014025 9056014025 91511B0825 9153281025 9153281025 9164180822
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54071

5VZFE..VCH16

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54071

5VZFE..VCH16

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62040

5VZFE..VCH1#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62050

5VZFE..VCH1#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62120

5VZFE..VCH1#

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-62050

5VZFE..VCH1#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VCH1#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VCH1#

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-54030

5VZFE..VCH16

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VCH1#

 1
Common parts
90101-14055
90119-10813
90170-14012
90179-12087
90560-14025
91511-B0825
91532-81025
91641-80822
Linked diagrams
1903
