VCH10W-PFSQK (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - May 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-0205)

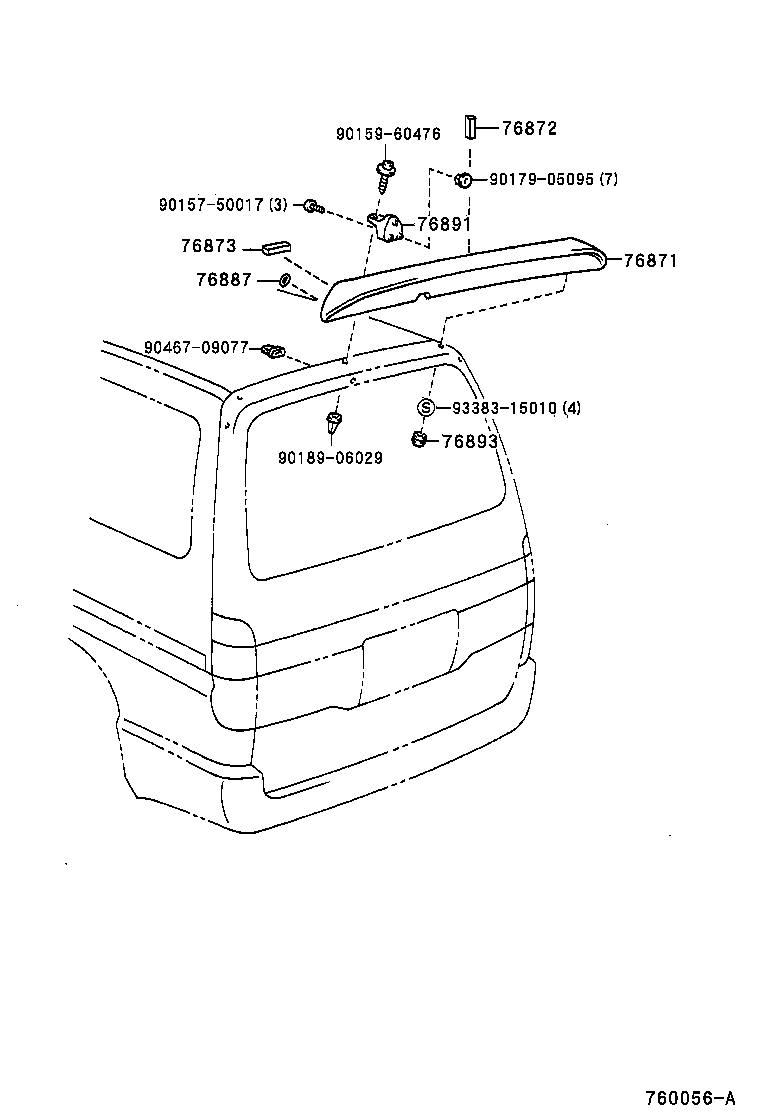

Click highlighted areas on diagram

diagram 76871 76872 76873 76887 76891 76893 9015750017 9015960476 9017905095 9018906029 9046709077 9338315010
Part # Description Qty Price
76871 - SPOILER, REAR
76871-26900

KCH10,16,RCH11,VCH1#

 1
76871-26900

KCH1#,VCH1#

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-26070

KCH10,16,RCH11,VCH1#

 2
76872-26070

KCH1#,VCH1#

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-26080

KCH10,16,RCH11,VCH1#

 2
76873-26080

KCH1#,VCH1#

 2
76887 - SEAL, REAR SPOILER
76887-26020

KCH1#,VCH1#

 4
76887-26020

KCH10,16,RCH11,VCH1#

 4
76891 - SPOILER, REAR NO.1
76891-26900

KCH1#,VCH1#

 1
76891-26900

KCH10,16,RCH11,VCH1#

 1
76893 - COVER, REAR SPOILER, NO.1
76893-26020

KCH1#,VCH1#

 4
Common parts
90157-50017
90159-60476
90179-05095
90189-06029
90467-09077
93383-15010
