VCH10W-PFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

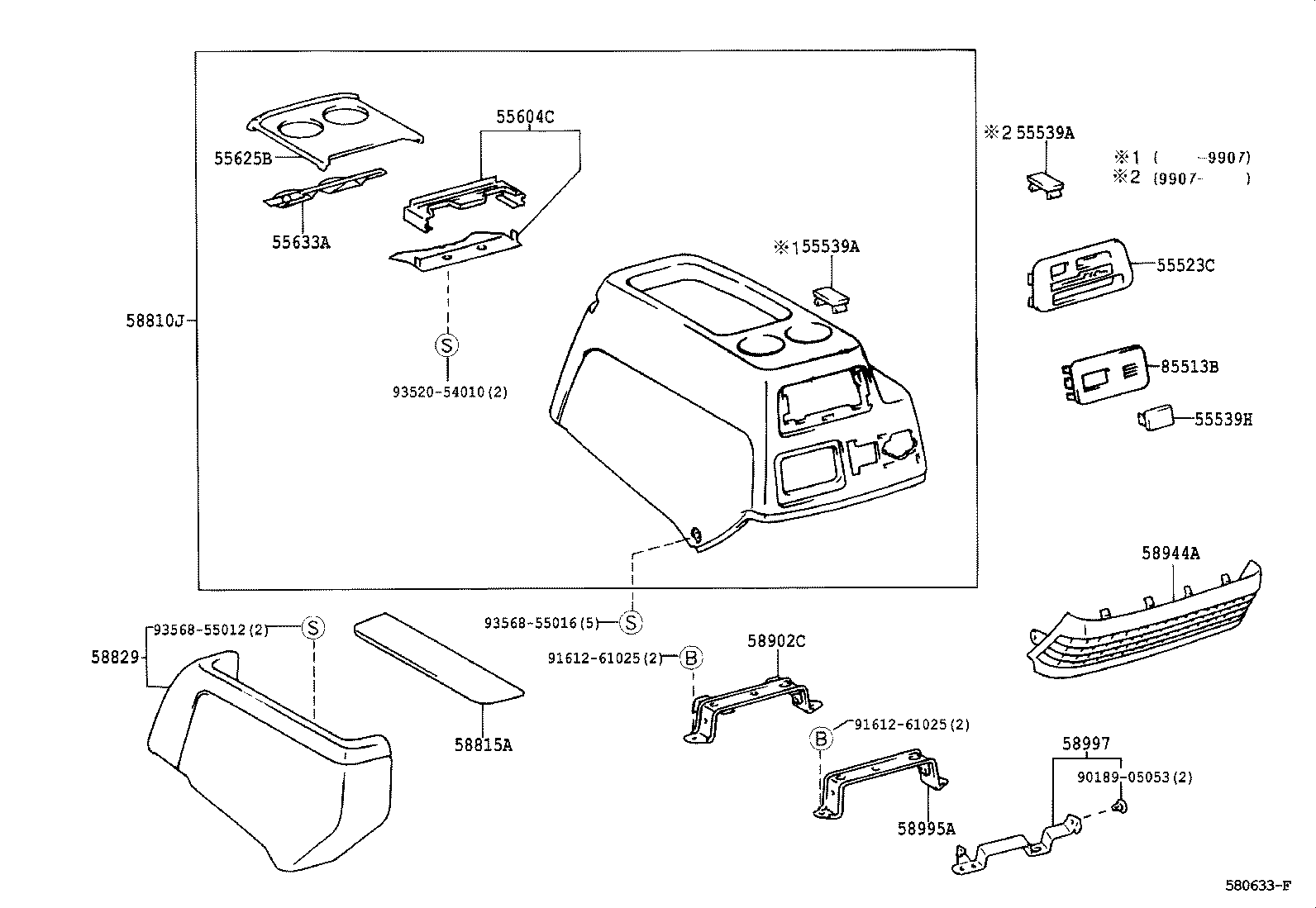

ILLUST NO. 2 OF 2(9708- )5D

Click highlighted areas on diagram

diagram 55523C 55539A 55539A 55539H 55604C 55625B 55633A 58810J 58815A 58829 58902C 58944A 58995A 58997 85513B 9018905053 9161261025 9161261025 9352054010 9356855012 9356855016
Part # Description Qty Price
55523C - COVER, HEATER CONTROL OPENING
55523-26050

VCH1#..5D

 1
55539A - COVER, SPARE SWITCH HOLE
55539-32040E4

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-32040E4

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
55604-26070

VCH1#..5D

 1
55625B - TRAY, INSTRUMENT PANEL CUP HOLDER
55625-26020E0

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-89101

VCH1#..5D

 1
58810J - BOX ASSY, CONSOLE
58810-26140E0

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
58815A - CARPET, CONSOLE BOX
58815-26030

KCH10,16,RCH11,VCH1#

 1
58829 - POCKET, CONSOLE BOX
58806-26010E0

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
58806-26010B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-26040

VCH1#..5D

 1
58902-26050

VCH1#..5D

 1
58944A - COVER, CONSOLE, REAR
58944-26010E0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
58944-26010B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 1
58944-26030E0

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
58944-26020E0

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-26020

KCH10,16,RCH11,VCH1#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-26060

VCH1#..5D

 1
85513B - COVER, CIGARETTE LIGHTER
85513-26010E0

VCH1#..5D

SANDAL WOOD,TRIM4#

 1
85513-26020E0

VCH1#..5D

ｱﾘ(ﾃﾚﾋﾞ),SANDAL WOOD,TRIM4#

 1
Common parts
90189-05053
91612-61025
93520-54010
93568-55012
93568-55016
