VCH10W-GRSGK (1998)

Toyota Granvia/Grand Hiace

Production Apr 1998 - May 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 8(9508-9907)

Click highlighted areas on diagram

ｶｳﾙ

diagram 81980 82610A 82611 82623 82660D 82663B 82734A 82751 82753 83650 83651 83651 84340 84550 85910D 85969 85980 85999H 89390 9017906115 9163540616 9163540616 9331514014
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070

KCH1#,RCH11,VCH1#

 1
82611 - COVER, FUSE BLOCK
82611-26281

KCH1#,VCH1#

 1
82660D - BLOCK ASSY, RELAY
82660-26080

KCH1#,VCH1#

 2
82660-26080

KCH1#;VCH1#..G

 2
83650 - FUSEE
90986-01005

KCH1#,RCH11,VCH1#

 1
83651 - CLAMP, FUSEE
90468-25003

KCH1#,RCH11,VCH1#

 2
83651 - CLAMP, FUSEE
90468-25003

KCH1#,RCH11,VCH1#

 2
84340 - SWITCH ASSY, STOP LAMP
84340-32090

KCH1#,VCH1#,2#

 1
84340-32090

KCH1#,RCH11,VCH1#

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060

KCH1#,RCH11,VCH1#

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-26070

KCH1#,VCH1#

 1
Common parts
90179-06115
91635-40616
93315-14014

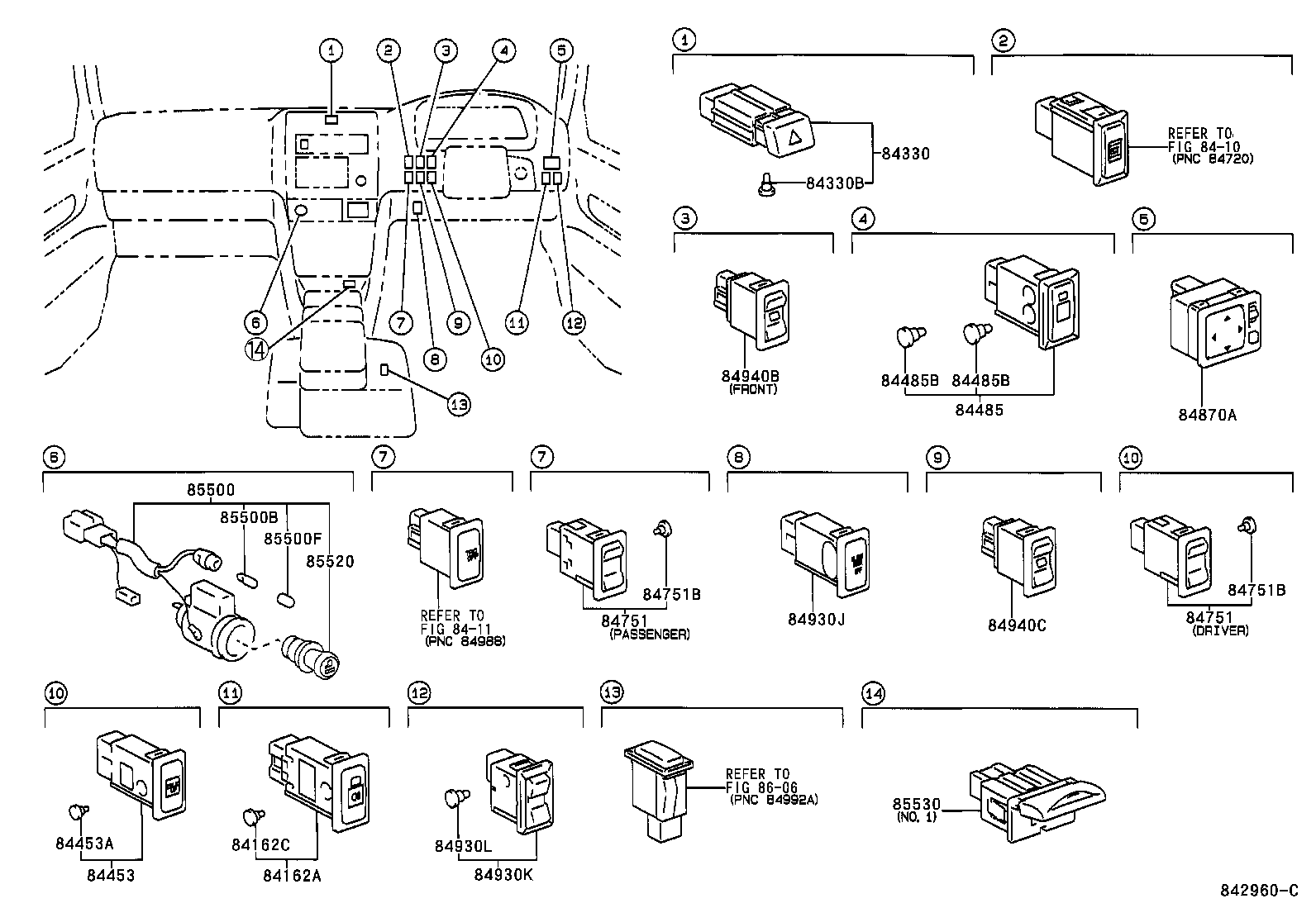

ILLUST NO. 5 OF 8(9907- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ

diagram 8410 8411 84162A 84162C 84330 84330B 84453 84453A 84485 84485B 84485B 84751 84751 84751B 84751B 84870A 84930J 84930K 84930L 84940B 84940C 85500 85500B 85500F 85520 85530 8606
Part # Description Qty Price
84162A - SWITCH, REAR FOG LAMP
84165-30020

KCH1#,VCH1#

 1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
84999-20120

KCH1#,VCH1#

14V 0.7W

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-26090

KCH1#,RCH11,VCH1#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320

KCH1#,RCH11,VCH1#

14V 0.84W

 1
84485 - SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)
84485-26010

KCH1#,VCH1#

 1
84485B - BULB, POWER OUTLET(ACCESSORY SOCKET) SWITCH
84999-10320

KCH1#,VCH1#

14V 0.84W

 1
90010-01024

KCH1#,VCH1#

12V 0.56W

 1
84485B - BULB, POWER OUTLET(ACCESSORY SOCKET) SWITCH
84999-10320

KCH1#,VCH1#

14V 0.84W

 1
90010-01024

KCH1#,VCH1#

12V 0.56W

 1
84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN
84930-26040

KCH1#,VCH1#

 1
84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84963-26010

KCH1#,VCH1#

 1
84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH
84999-10310

KCH1#,VCH1#

14V 0.91W

 1
84940B - SWITCH ASSY, CURTAIN(SIDE)
84940-95J08E0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#,ﾘﾔ

 2
84940-26040

KCH1#,VCH1#

ﾌﾛﾝﾄ

 1
84940-26040

KCH10,16,RCH11,VCH1#

ﾌﾛﾝﾄ

 1
84940-95J08A0

KCH1#,VCH1#

IVORY,TRIM0#,ﾘﾔ

 2
84940C - SWITCH ASSY, CURTAIN(BACK)
84940-26050

KCH1#,VCH1#

 1
84940-26050

KCH10,16,RCH11,VCH1#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-28050

KCH1#,RCH11,VCH1#

 1
85500-21020

KCH1#,VCH1#,2#

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11018

KCH1#,VCH1#

12V 1.2W ｿｹｯﾄ無し

 1
90981-11014

KCH1#,VCH1#,2#

14V 1.4W

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510

KCH1#,VCH1#

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

KCH1#,VCH1#

 1
85520-28010

KCH1#,RCH11,VCH1#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-26080

KCH1#,VCH1#

NO.1

 1
85530-26040

KCH1#,VCH1#

NO.2

 1
Linked diagrams
8410
8411
8606

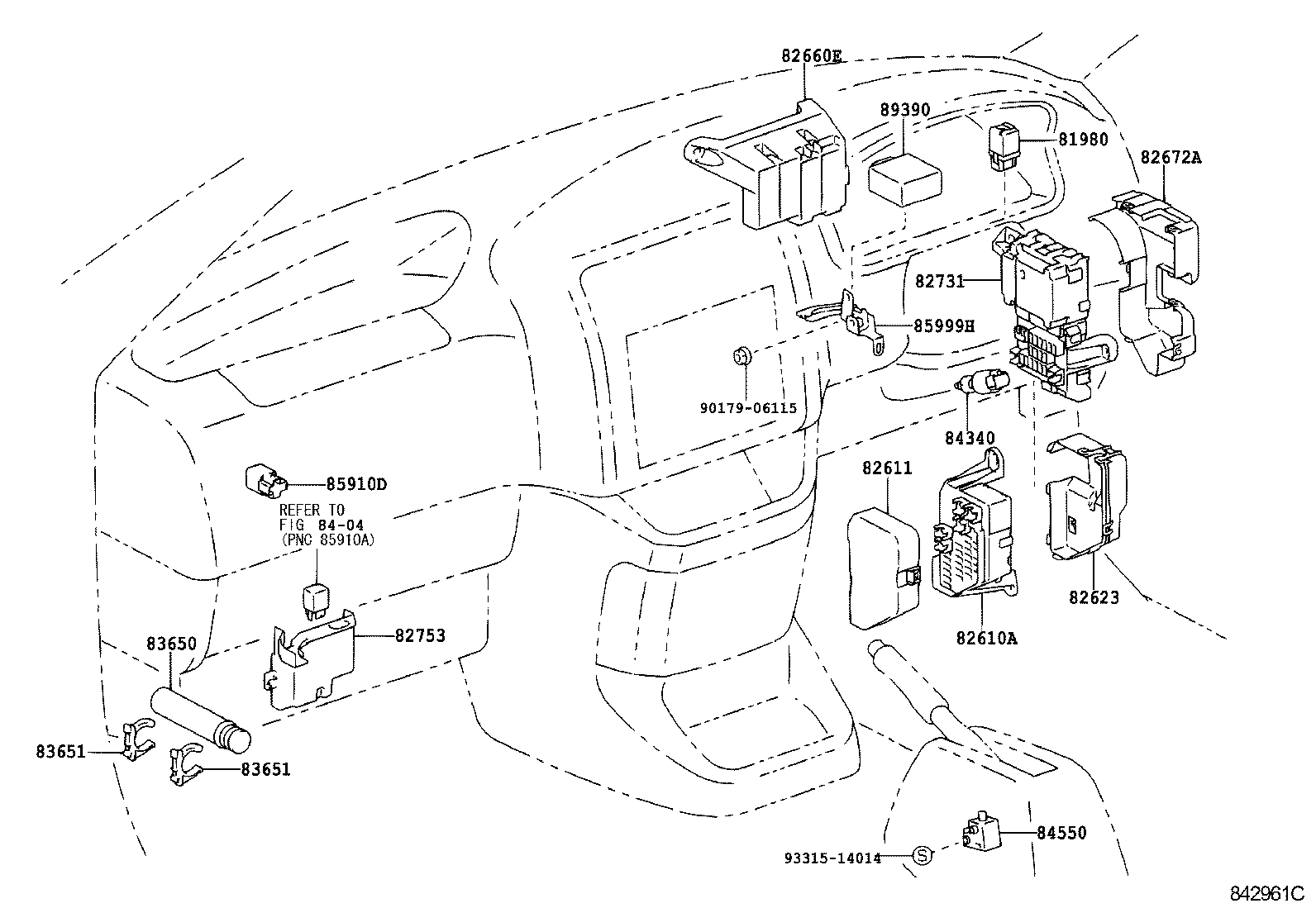

ILLUST NO. 3 OF 8(9907- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 81980 82610A 82611 82623 82660E 82672A 82731 82753 83650 83651 83651 8404 84340 84550 85910D 85999H 89390 9017906115 9331514014
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070

KCH1#,RCH11,VCH1#

 1
82611 - COVER, FUSE BLOCK
82611-26281

KCH1#,VCH1#

 1
82660E - BLOCK ASSY, RELAY
82660-26250

KCH1#,VCH1#

 1
82672A - COVER, JUNCTION BLOCK
82674-26010

KCH1#,VCH1#

 1
82731 - BLOCK, DRIVER SIDE JUNCTION
82730-26010

KCH1#,VCH1#

 1
83650 - FUSEE
90986-01005

KCH1#,RCH11,VCH1#

 1
83651 - CLAMP, FUSEE
90468-25003

KCH1#,RCH11,VCH1#

 2
83651 - CLAMP, FUSEE
90468-25003

KCH1#,RCH11,VCH1#

 2
84340 - SWITCH ASSY, STOP LAMP
84340-32090

KCH1#,VCH1#,2#

 1
84340-32090

KCH1#,RCH11,VCH1#

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060

KCH1#,RCH11,VCH1#

 1
Common parts
90179-06115
93315-14014
Linked diagrams
8404
