VCH10W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

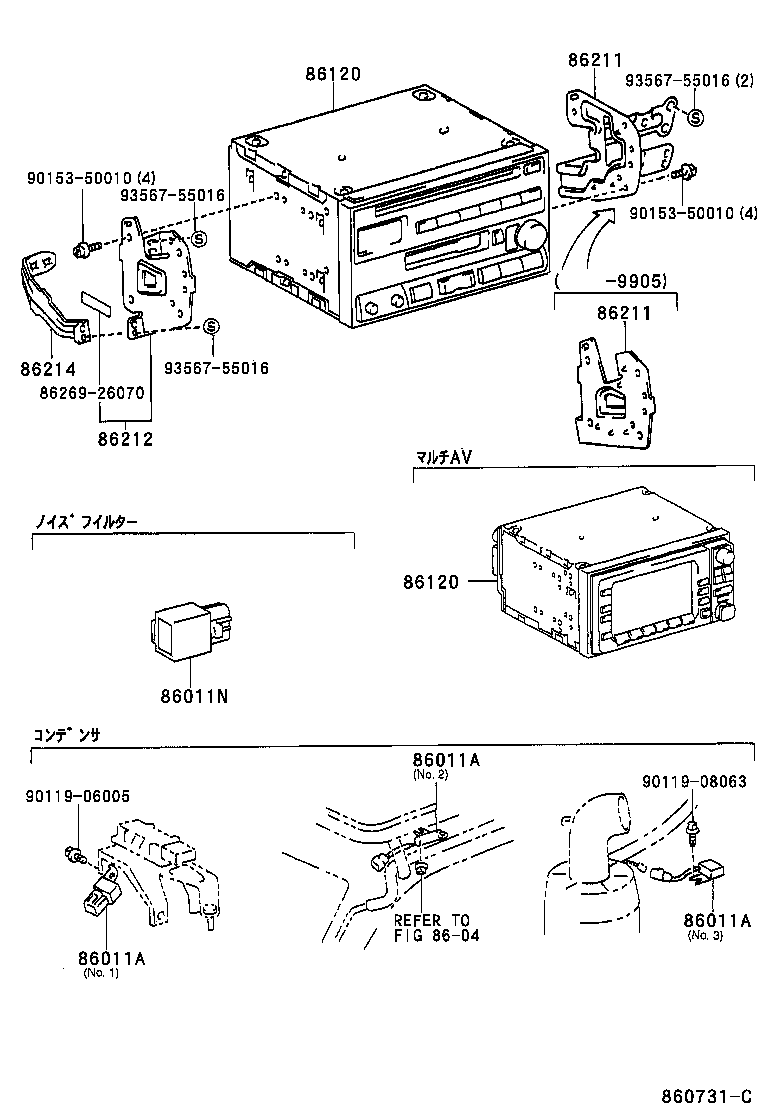

ILLUST NO. 1 OF 2(9508-9907)

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011N 8604 86120 86120 86211 86211 86212 86214 8626926070 9011906005 9011908063 9015350010 9015350010 9356755016 9356755016 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04136

KCH1#,RCH11,VCH1#

NO.2

 1
90980-04112

KCH10,16,RCH11,VCH1#

NO.2

 1
86011A - CONDENSER, RADIO SETTING
90980-04136

KCH1#,RCH11,VCH1#

NO.2

 1
90980-04112

KCH10,16,RCH11,VCH1#

NO.2

 1
86011A - CONDENSER, RADIO SETTING
90980-04136

KCH1#,RCH11,VCH1#

NO.2

 1
90980-04112

KCH10,16,RCH11,VCH1#

NO.2

 1
86011N - FILTER, NOISE
90980-04111

KCH10,16,VCH1#

 1
90980-04111

VCH1#

 1
86120 - RECEIVER ASSY, RADIO
86120-14860

KCH1#,VCH1#..G

MATSUSHITA,ID=55818,G ｴｸｽﾃ-ｼﾞ *(L), *(M)

 1
86120-26022

KCH1#,RCH11,VCH1#

MATSUSHITA,ID=56020,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ"

 1
86120-2A340

KCH1#,VCH1#..Q

MATSUSHITA,ID=55823,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ)

 1
86120-26032

KCH1#,VCH1#..Q

MATSUSHITA,ID=56021,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁAVｽﾃ-ｼﾖﾝ")

 1
86120-26033

KCH1#,VCH1#..Q

MATSUSHITA,ID=56031,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁAVｽﾃ-ｼﾖﾝ")

 1
86120-26023

KCH1#,VCH1#

MATSUSHITA,ID=56030,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ"

 1
86120 - RECEIVER ASSY, RADIO
86120-14860

KCH1#,VCH1#..G

MATSUSHITA,ID=55818,G ｴｸｽﾃ-ｼﾞ *(L), *(M)

 1
86120-26022

KCH1#,RCH11,VCH1#

MATSUSHITA,ID=56020,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ"

 1
86120-2A340

KCH1#,VCH1#..Q

MATSUSHITA,ID=55823,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ)

 1
86120-26032

KCH1#,VCH1#..Q

MATSUSHITA,ID=56021,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁAVｽﾃ-ｼﾖﾝ")

 1
86120-26033

KCH1#,VCH1#..Q

MATSUSHITA,ID=56031,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁAVｽﾃ-ｼﾖﾝ")

 1
86120-26023

KCH1#,VCH1#

MATSUSHITA,ID=56030,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ"

 1
86211 - BRACKET, RADIO, NO.1
86211-26070

KCH1#,VCH1#

 1
86211-26030

KCH1#,RCH11,VCH1#

 1
86211 - BRACKET, RADIO, NO.1
86211-26070

KCH1#,VCH1#

 1
86211-26030

KCH1#,RCH11,VCH1#

 1
86212 - BRACKET, RADIO, NO.2
86212-26030

KCH1#,RCH11,VCH1#

 1
86214 - BRACKET, RADIO, NO.4
86214-26010

KCH1#,RCH11,VCH1#

 1
Common parts
86269-26070
90119-06005
90119-08063
90153-50010
93567-55016
Linked diagrams
8604

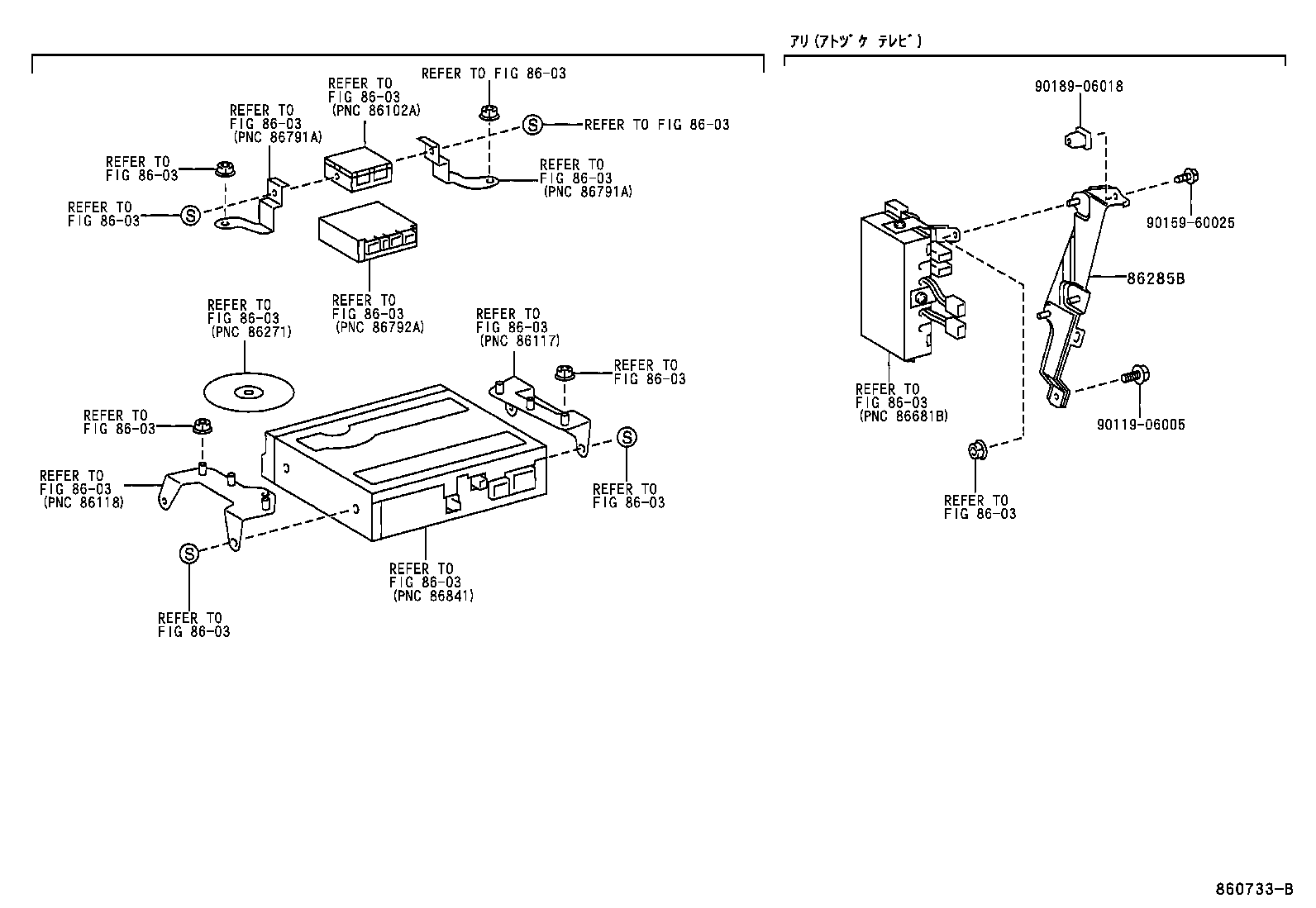

ILLUST NO. 2 OF 2(9708-9907)

Click highlighted areas on diagram

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

diagram 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 86285B 9011906005 9015960025 9018906018
Part # Description Qty Price
86285B - BRACKET, AMPLIFIER, NO.1
86285-26070

KCH1#,RCH11,VCH1#..G

ｱﾘ(ｱﾄﾂﾞｹ ﾃﾚﾋﾞ)

 1
Common parts
90119-06005
90159-60025
90189-06018
Linked diagrams
8603
