VCH10W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-0501)

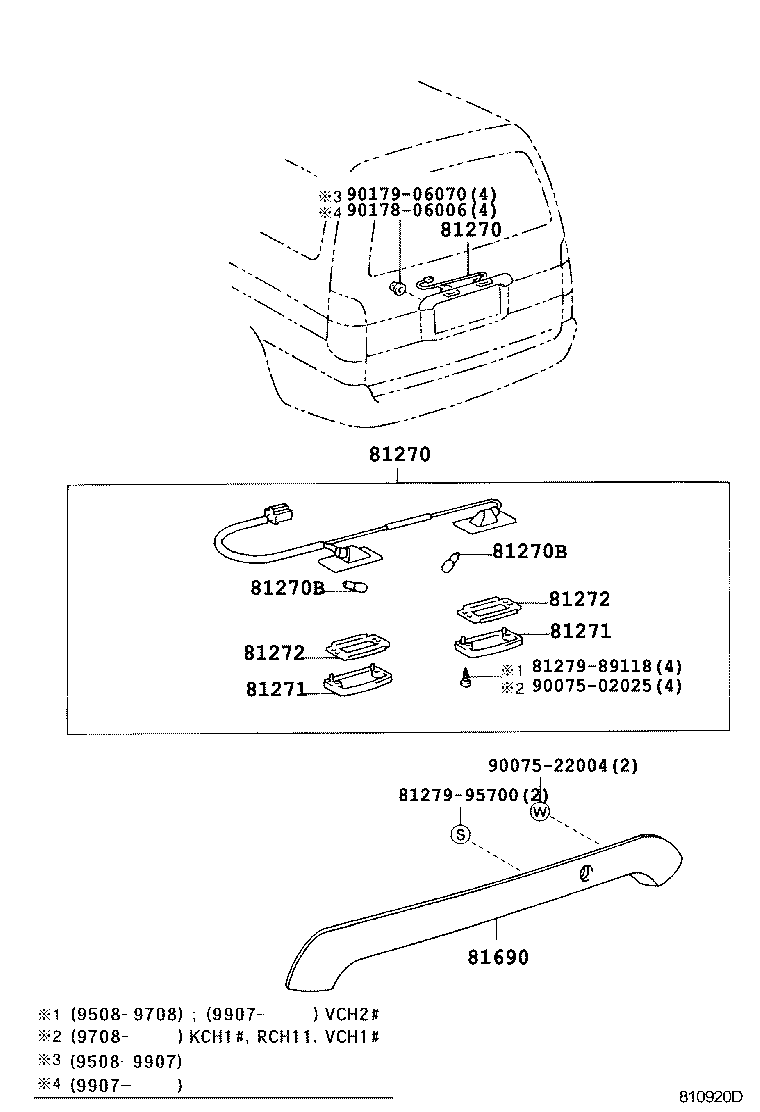

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 8127989118 8127995700 81690 9007502025 9007522004 9017806006 9017906070
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-26090

KCH1#,RCH11,VCH1#

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-26090

KCH1#,RCH11,VCH1#

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KCH1#,RCH11,VCH1#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

KCH1#,RCH11,VCH1#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-24010

KCH1#,RCH11,VCH1#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-24010

KCH1#,RCH11,VCH1#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010

KCH1#,RCH11,VCH1#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010

KCH1#,RCH11,VCH1#

 2
Common parts
81279-89118
81279-95700
90075-02025
90075-22004
90178-06006
90179-06070
