VCH10W-GFSQK (1997)
Toyota Granvia/Grand Hiace

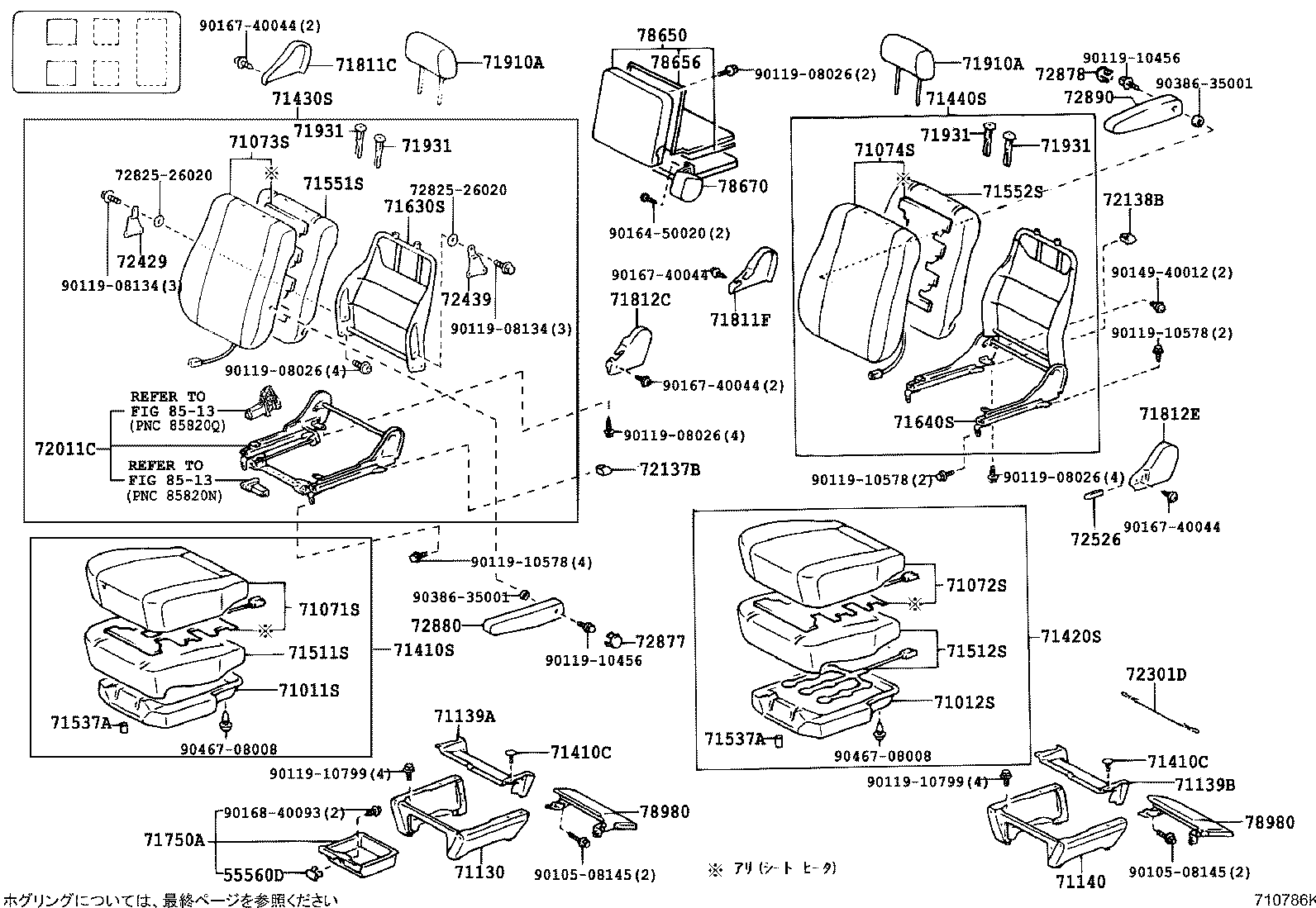

ILLUST NO. 1 OF 5(9708- )KCH1#,RCH11,VCH1#
ﾌﾛﾝﾄ ｼ-ﾄ(ﾊﾟﾜ- ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00E3 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 55560-95J00E3 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 55560-95J00B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-26040 |
KCH1#,RCH11,VCH1# |
1 | ||
| 71011-26040 |
KCH1#,VCH1#..Q |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-26040 |
KCH1#,RCH11,VCH1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26420A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71071-26410A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71071-26401B3 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26451B2 |
KCH1#,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26550A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-26550A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71071-26451B2 |
KCH1#,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26390A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71072-26401B3 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26420A0 |
VCH1#..Q..4D ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26511B1 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26530A0 |
VCH1#..Q..4D ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM4# |
1 | ||
| 71073-26551B2 |
KCH1#,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26520A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71073-26630A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-26481B1 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26490A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71074-26521B2 |
KCH1#,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26500A0 |
VCH1#..Q..4D ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM4# |
1 | ||
| 71074-26620A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71130 - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-26020E0 |
KCH1#,VCH1#..Q ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ),SANDAL WOOD,TRIM4# |
1 | ||
| 71130-26020B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71130-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71130-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71139-26010B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71139-26050B0 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71139-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-26020B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71139-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71139-26040B0 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71139-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71140 - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-26030B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71140-26030E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71140-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-06020E2 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
12 | ||
| 90467-06020B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
12 | ||
| 90467-06020E2 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
12 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-06020E2 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
12 | ||
| 90467-06020B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
12 | ||
| 90467-06020E2 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
12 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-26411B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26430E0 |
VCH1#..Q..4D ***,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71410-26461B0 |
KCH1#,VCH1#..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26420E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 71410-26560A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-26420E0 |
VCH1#..Q..4D ***,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71420-26401B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26560A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71410-26461B0 |
KCH1#,VCH1#..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-26390E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-26751B1 |
KCH1#,VCH1#..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-26760E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 71430-26790E0 |
VCH1#..Q..4D ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM4# |
1 | ||
| 71430-26741B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-26770A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-26670E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 71440-26660B1 |
KCH1#,RCH11,VCH1#..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-26651B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-26700E0 |
VCH1#..Q..4D ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM4# |
1 | ||
| 71440-26800A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 71511-26070 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-26070 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 71511-26050 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71695-26050 |
VCH10..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
12 | ||
| 71695-26050 |
KCH1#..Q;VCH10..G;VCH1#..5D |
8 | ||
| 71537-26010 |
KCH1#,RCH11,VCH1# ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71695-26050 |
VCH10..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
12 | ||
| 71695-26050 |
KCH1#..Q;VCH10..G;VCH1#..5D |
8 | ||
| 71537-26010 |
KCH1#,RCH11,VCH1# ｱﾘ(ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
6 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26090 |
KCH1#,VCH1#..Q |
1 | ||
| 71551-26080 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 71551-26170 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 71551-26130 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26070 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 71552-26040 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 71551-26080 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 71552-26060 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-26091C0 |
KCH1#,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLACK,TRIM1# |
1 | ||
| 71630-26050C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),BLACK,TRIM4# |
1 | ||
| 71630-26050C0 |
KCH1#,RCH11,VCH1# BLACK,TRIM1# |
1 | ||
| 71013-26200 |
KCH1#,VCH1#..Q |
1 | ||
| 71630-26091C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M) & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLACK,TRIM4# |
1 | ||
| 71630-26050C0 |
KCH1#,VCH1#..G BLACK,TRIM1# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-26030C0 |
KCH1#,VCH1#..G BLACK,TRIM1# |
1 | ||
| 71640-26030C0 |
KCH1#,VCH1#..Q BLACK,TRIM4# |
1 | ||
| 71640-26030C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),BLACK,TRIM4# |
1 | ||
| 71640-26080C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M) & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLACK,TRIM4# |
1 | ||
| 71640-26080C0 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLACK,TRIM1# |
1 | ||
| 71640-26030C0 |
RCH11,VCH10..G BLACK,TRIM1# |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71750-26010B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71750-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26040E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71811-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71811-26020B0 |
KCH1#,RCH11,VCH1#..DX,G BLUISH GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71811-26030B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26030E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26020B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26010B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71812-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26010B0 |
RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26090B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26280A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
2 | ||
| 71910-26150A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71910-26270A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26090B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26280A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
2 | ||
| 71910-26150A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71910-26270A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
VCH10..G ﾛｯｸ付,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
2 | ||
| 71931-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
VCH10..G ﾛｯｸ無,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
VCH10..G ﾛｯｸ付,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
2 | ||
| 71931-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
VCH10..G ﾛｯｸ無,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
VCH10..G ﾛｯｸ付,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
2 | ||
| 71931-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
VCH10..G ﾛｯｸ無,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
VCH10..G ﾛｯｸ付,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
2 | ||
| 71931-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
KCH1#,RCH11,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
2 | ||
| 71931-28030B0 |
VCH10..G ﾛｯｸ無,ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-26010 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-26030E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
2 | ||
| 72137-26030C0 |
KCH1#,RCH11,VCH1#..G BLACK,TRIM1# |
2 | ||
| 72137-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 72137-26070 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-26030C0 |
KCH1#,RCH11,VCH1#..G BLACK,TRIM1# |
2 | ||
| 72137-26030E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
2 | ||
| 72137-26070 |
KCH1#,RCH11,VCH1#..G |
2 | ||
| 72137-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-26010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-26050B0 |
RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72525-26050E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72525-95J01E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-26040B1 |
KCH1#,VCH1#..G MD.MOON MIST,TRIM1# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-26040B1 |
KCH1#,VCH1#..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),MD.MOON MIST,TRIM1# |
1 | ||
| 72878-26020A1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-26150A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 72880-26030B0 |
KCH1#,VCH1#..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 72880-26110A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72880-26020B2 |
KCH1#,RCH11,VCH1#..G BL. GRAY,TRIM1# |
1 | ||
| 72880-26140A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-26020B2 |
KCH1#,RCH11,VCH1#..G BL. GRAY,TRIM1# |
1 | ||
| 72890-26130A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 72890-26160A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72890-26030B0 |
KCH1#,VCH1#..G ｸﾙ-ｼﾞﾝｸﾞｾﾚｸｼﾖﾝ,BLUISH GRAY,TRIM1# |
1 | ||
| 72890-26120A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 78650 - LEGREST ASSY, REAR SEAT | ||||
| 71705-26030A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 78065-26050A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 78656 - COVER, REAR SEAT LEGREST | ||||
| 78656-26010A0 |
VCH1#..Q..4D IVORY,TRIM4# |
1 | ||
| 78670 - ADJUSTER ASSY, REAR SEAT LEGREST | ||||
| 78670-26010 |
KCH1#,VCH1#..Q |
1 | ||
| 78980 - FOOTREST ASSY, REAR SEAT | ||||
| 78980-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 78980-26010B1 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 78980-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 78980-26010E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 78980 - FOOTREST ASSY, REAR SEAT | ||||
| 78980-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 78980-26010B1 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 78980-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 78980-26010E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| Common parts | ||||
| 72825-26020 | ||||
| 90105-08145 | ||||
| 90119-08026 | ||||
| 90119-08134 | ||||
| 90119-10456 | ||||
| 90119-10578 | ||||
| 90119-10799 | ||||
| 90149-40012 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40093 | ||||
| 90386-35001 | ||||
| 90467-08008 | ||||
| Linked diagrams | ||||
| 8513 | ||||

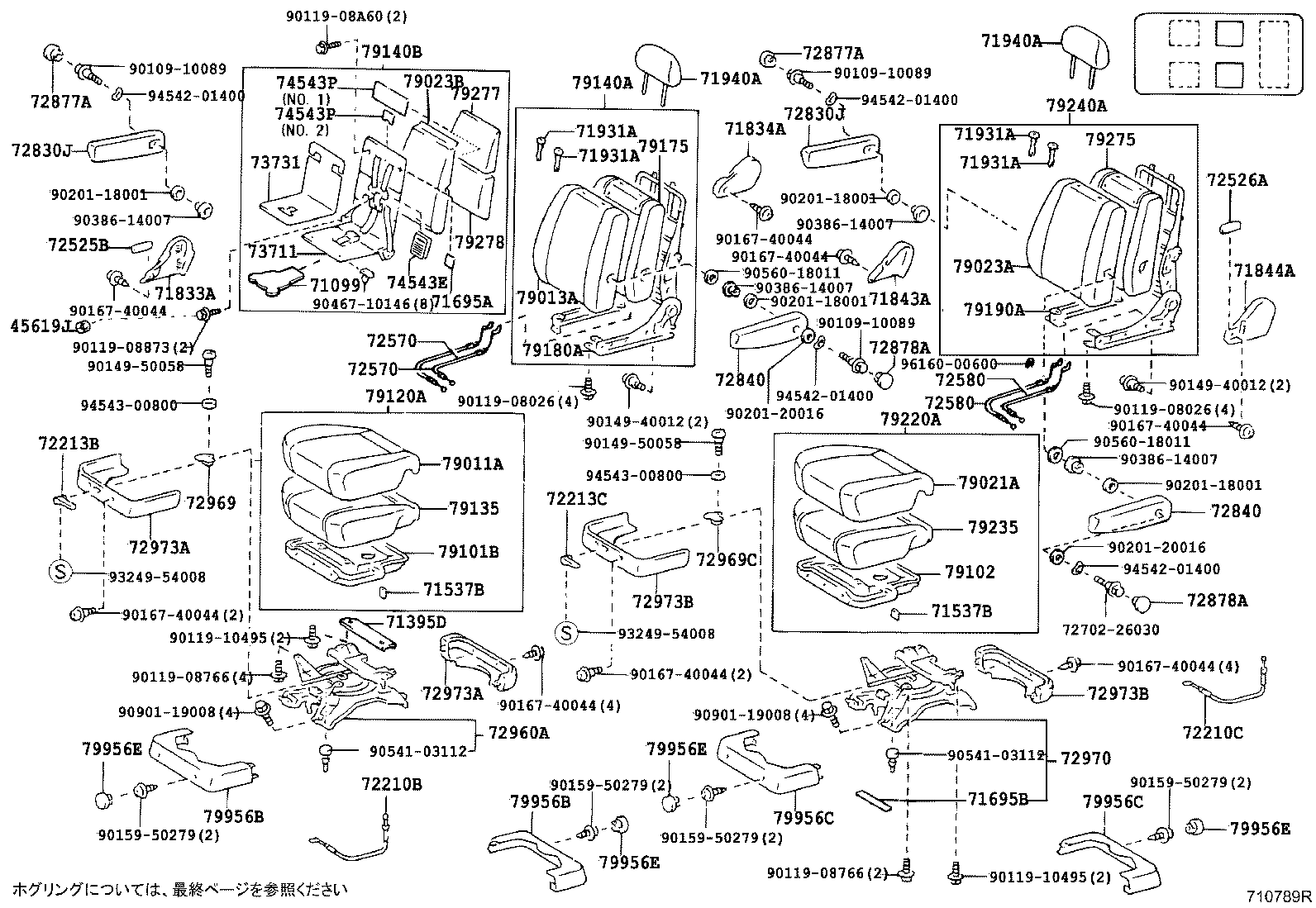

ILLUST NO. 3 OF 5(9708- )07S
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45619J - COVER, KNUCKLE STOPPER | ||||
| 45619-28020 |
KCH1#,VCH1#..Q |
2 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
KCH10,16,RCH11,VCH1#..G |
19 | ||
| 71537-26010 |
KCH10,16,RCH11,VCH1#..Q |
8 | ||
| 71537-26010 |
KCH10,16,RCH11,VCH10..G ﾊﾝﾃﾞｲ ｷﾔﾌﾞ |
7 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
KCH10,16,RCH11,VCH1#..G |
19 | ||
| 71537-26010 |
KCH10,16,RCH11,VCH1#..Q |
8 | ||
| 71537-26010 |
KCH10,16,RCH11,VCH10..G ﾊﾝﾃﾞｲ ｷﾔﾌﾞ |
7 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71695-26010 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 71695-26010 |
KCH1#,VCH1# |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-26030 |
KCH1#,VCH1#..Q |
4 | ||
| 71695-26010 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-26070B0 |
RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26070B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26070E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71811-26050E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-26070E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26070B0 |
RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 71812-26050E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26070B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71811-26090E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71811-26060E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71811-26090B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71812-26060B0 |
KCH10,16,RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 71812-26060E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71812-26060B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71812-26040E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||

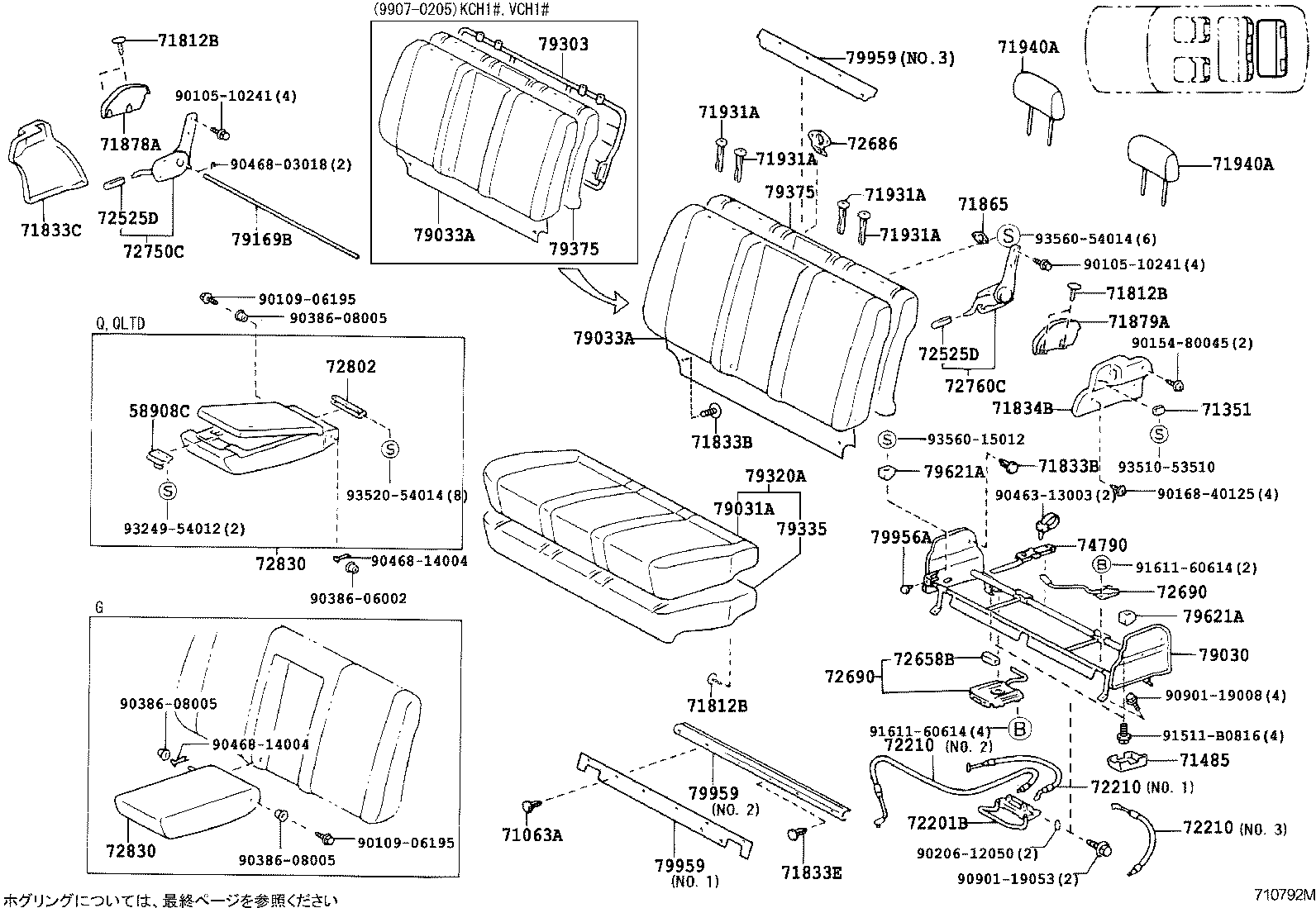

| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26160A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71940-26100B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26100B0 |
RCH11,VCH1#..G ﾊﾝﾃﾞｲ ｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26170A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71940-26200A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26160A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71940-26100B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26100B0 |
RCH11,VCH1#..G ﾊﾝﾃﾞｲ ｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26170A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71940-26200A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||

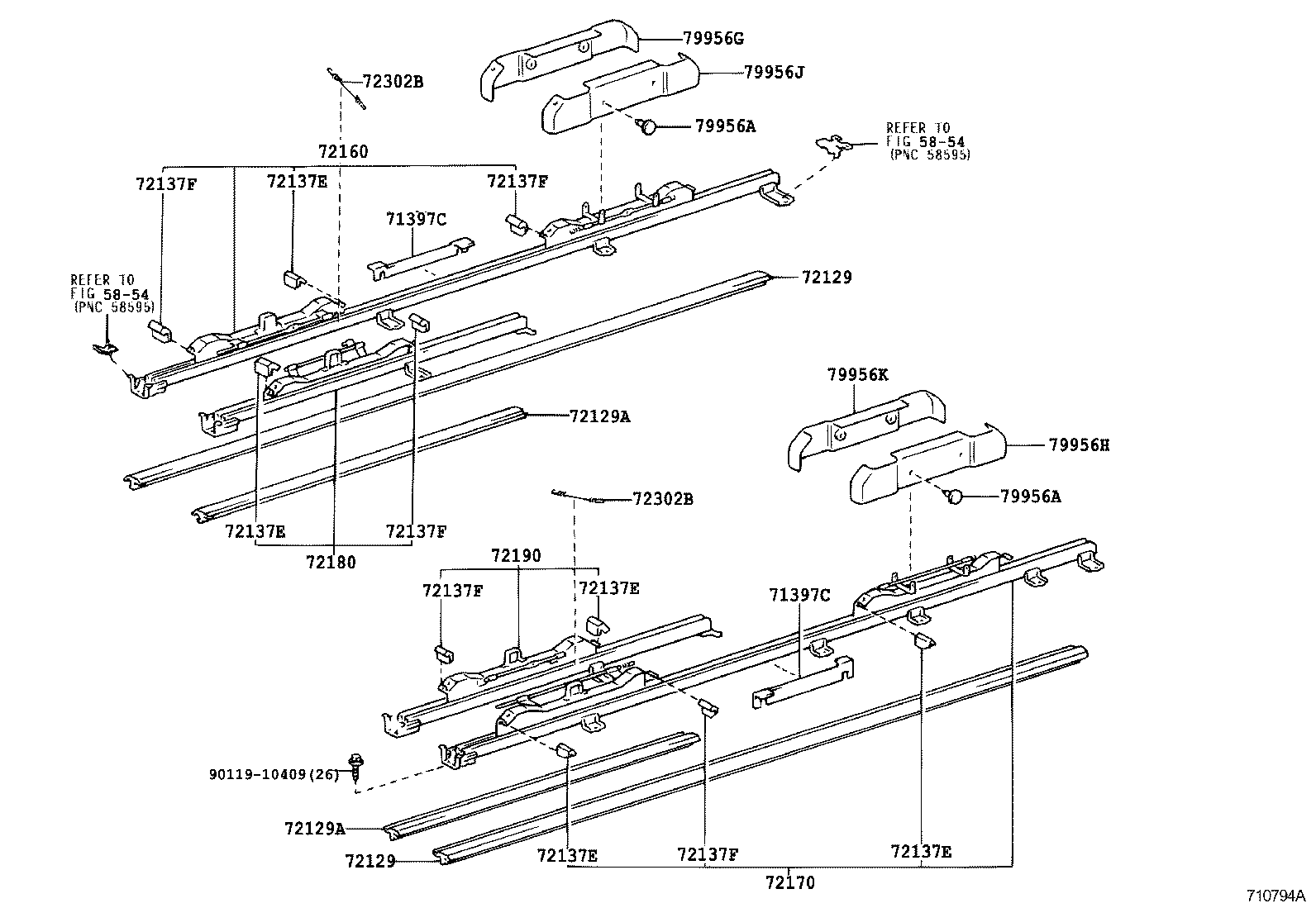

| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-28020E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-28020E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26030B0 |
RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72525-26030B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26030E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72525-26050E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-26050E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72525-95J01E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72525-26040E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72525-26040B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26040B0 |
RCH11,VCH10..G BLUISH GRAY,TRIM1# |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-26230A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
2 | ||
| 72830-26190A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-26230A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
2 | ||
| 72830-26190A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-26120B2 |
KCH1#,RCH11,VCH1#..G BL. GRAY,TRIM1# |
1 | ||
| 72840-26080A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72840-26090A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72840-26110A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-26120B2 |
KCH1#,RCH11,VCH1#..G BL. GRAY,TRIM1# |
1 | ||
| 72840-26080A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72840-26090A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72840-26110A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
2 | ||
| 72877A - COVER, SEAT ARMREST, NO.2 RH | ||||
| 72877-26020A1 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72877A - COVER, SEAT ARMREST, NO.2 RH | ||||
| 72877-26020A1 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72878A - COVER, SEAT ARMREST, NO.2 LH | ||||
| 72878-26020A1 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72878-28330B2 |
KCH1#,RCH11,VCH1#..G MD.MOON MIST,TRIM1# |
1 | ||
| 72878A - COVER, SEAT ARMREST, NO.2 LH | ||||
| 72878-26020A1 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
2 | ||
| 72878-28330B2 |
KCH1#,RCH11,VCH1#..G MD.MOON MIST,TRIM1# |
1 | ||
| 72960A - TABLE ASSY, SEAT TURN | ||||
| 72960-26030 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 72969 - KNOB, REAR SEAT TURN LOCK | ||||
| 72969-28020E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72969C - KNOB, REAR SEAT TURN LOCK, LH | ||||
| 72969-28020E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-26090C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),BLACK,TRIM4# |
1 | ||
| 72970-26090C0 |
KCH1#,RCH11,VCH1#..G BLACK,TRIM1# |
1 | ||
| 72970-26040 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,REAR |
1 | ||
| 72973-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,FRONT |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-26030E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,REAR |
1 | ||
| 72973-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,FRONT |
1 | ||
| 72973B - COVER, REAR SEAT TURN TABLE, NO.2 | ||||
| 72973-26040E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,REAR |
1 | ||
| 72973-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,FRONT |
1 | ||
| 72973B - COVER, REAR SEAT TURN TABLE, NO.2 | ||||
| 72973-26040E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,REAR |
1 | ||
| 72973-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4#,FRONT |
1 | ||
| 73711 - BODY, CHILD RESTRAINT SEAT | ||||
| 73711-AA010 |
KCH1#,VCH1#..Q |
1 | ||
| 73731 - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-33010A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 74543E - LABEL, CHILD RESTRAINT SEAT INFORMATION | ||||
| 74543-26250 |
KCH1#,VCH1#..Q |
1 | ||

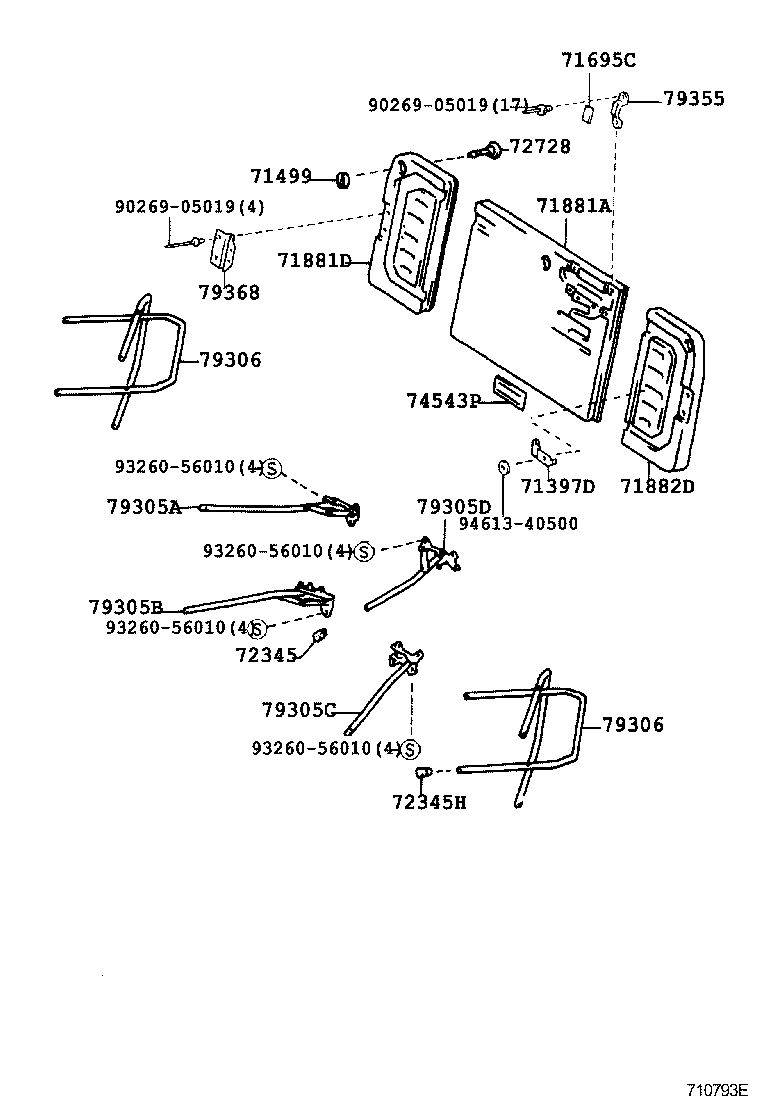

| 74543P - LABEL, REAR SEAT CAUTION | ||||
| 74543-26210 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 74543-26110 |
KCH1#,VCH1#..Q NO.1 |
1 | ||
| 74543-33040 |
KCH1#,VCH1#..Q NO.2 |
1 | ||
| 74543P - LABEL, REAR SEAT CAUTION | ||||
| 74543-26210 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 74543-26110 |
KCH1#,VCH1#..Q NO.1 |
1 | ||
| 74543-33040 |
KCH1#,VCH1#..Q NO.2 |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-26490A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79011-26540A0 |
KCH1#,VCH1#..Q ｱﾘ(ｼﾞﾕﾆｱ ﾘﾔ ｼ-ﾄ),IVORY,TRIM4# |
1 | ||
| 79011-26501B3 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26740A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79011-26480A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79011-26521B2 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26700A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79013-26520A0 |
KCH1#,VCH1#..Q ｱﾘ(ｼﾞﾕﾆｱ ﾘﾔ ｼ-ﾄ),IVORY,TRIM4# |
1 | ||
| 79013-26460A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79013-26480A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 79013-26501B1 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26491B2 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-26490A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79021-26260A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79021-26211B3 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26221B2 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26480A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-26161B1 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79023-26141B2 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26460A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79023-26220A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79013-26480A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 79023B - COVER SUB-ASSY, JUNIOR SEAT BACK | ||||
| 79023-26180A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71011-26040 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71011-26040 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-26530E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79120-26561B0 |
VCH10..G ***,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26551B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26800A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79120-26540E0 |
VCH1#..Q..4D ***,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 79120-26580E0 |
KCH1#,VCH1#..Q ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),IVORY,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-26200 |
KCH1#,VCH1#..Q ｱﾘ(ｼﾞﾕﾆｱ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 79135-26110 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79135-26180 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 79135-26100 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-26560E0 |
VCH1#..Q..4D ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79140-26571B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-26620E0 |
KCH1#,VCH1#..Q ***,ｱﾘ(ｼﾞﾕﾆｱ ﾘﾔ ｼ-ﾄ),IVORY,TRIM4# |
1 | ||
| 79140-26540E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79140-26810A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79140-26591B0 |
KCH1#,VCH1#..G ***,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79140B - BACK ASSY, NO.1 JUNIOR SEAT, RH | ||||
| 79140-26630E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26150 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ |
1 | ||
| 71551-26070 |
KCH1#,VCH1#..Q |
1 | ||
| 79017-26070 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 79175-26140 |
KCH1#,VCH1#..Q ｱﾘ(ｼﾞﾕﾆｱ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-26100 |
KCH1#,VCH1#..Q |
1 | ||
| 79180-26201 |
KCH1#,VCH1#..Q ｱﾘ(ﾁﾔｲﾙﾄﾞ ﾚｽﾄﾚｲﾝﾄ ｼｽﾃﾑ) |
1 | ||
| 79180-26160 |
KCH1#,VCH1#..Q |
1 | ||
| 79180-26200 |
KCH1#,VCH1#..Q ｱﾘ(ﾁﾔｲﾙﾄﾞ ﾚｽﾄﾚｲﾝﾄ ｼｽﾃﾑ) |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-26061 |
KCH1#,VCH1#..Q |
1 | ||
| 79190-26060 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-26221B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79220-26231B0 |
KCH1#,VCH1#..G ***,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26540E0 |
VCH1#..Q..4D ***,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 79120-26530E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79220-26270A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79135-26110 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79235-26010 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 79135-26180 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79150-26210E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79240-26191B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240-26201B0 |
KCH1#,VCH1#..G ***,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79240-26250A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79150-26230E0 |
VCH1#..Q..4D ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79027-26020 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 71551-26070 |
KCH1#,VCH1#..Q |
1 | ||
| 71551-26070 |
KCH1#,VCH1#..Q..4D |
1 | ||
| 79175-26150 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ |
1 | ||
| 79277 - PAD, JUNIOR SEAT BACK SAFETY, A | ||||
| 79277-26020 |
KCH1#,VCH1#..Q |
1 | ||
| 79278 - PAD, JUNIOR SEAT BACK SAFETY, B | ||||
| 79278-26020 |
KCH1#,VCH1#..Q |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26060E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 79956-26070B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26070E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26060E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 79956-26070B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26070E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26060E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
2 | ||
| 79956-26060B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26060E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26060E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
2 | ||
| 79956-26060B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26060E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001E3 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
8 | ||
| 90339-10001B4 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001E3 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
8 | ||
| 90339-10001B4 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001E3 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
8 | ||
| 90339-10001B4 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001E3 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
8 | ||
| 90339-10001B4 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
8 | ||
| Common parts | ||||
| 72702-26030 | ||||
| 90109-10089 | ||||
| 90119-08026 | ||||
| 90119-08766 | ||||
| 90119-08873 | ||||
| 90119-08A60 | ||||
| 90119-10495 | ||||
| 90149-40012 | ||||
| 90149-50058 | ||||
| 90159-50279 | ||||
| 90167-40044 | ||||
| 90201-18001 | ||||
| 90201-20016 | ||||
| 90386-14007 | ||||
| 90467-10146 | ||||
| 90541-03112 | ||||
| 90560-18011 | ||||
| 90901-19008 | ||||
| 93249-54008 | ||||
| 94542-01400 | ||||
| 94543-00800 | ||||
| 96160-00600 | ||||
ILLUST NO. 5 OF 7(9708- )
ﾘﾔ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71351 - KNOB, SEAT HINGE LEVER | ||||
| 71351-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71351-26010B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71351-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-26010B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 71485-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71485-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH1#,VCH1#..G GRAY,TRIM1# |
4 | ||
| 90467-05020E4 |
KCH1#,VCH1#..Q..4D SANDAL WOOD,TRIM4# |
4 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH1#,VCH1#..G GRAY,TRIM1# |
4 | ||
| 90467-05020E4 |
KCH1#,VCH1#..Q..4D SANDAL WOOD,TRIM4# |
4 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71833-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71833-26010B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71833-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 90467-05020E4 |
KCH1#,VCH1#..Q..4D SANDAL WOOD,TRIM4# |
4 | ||
| 90467-05020B0 |
KCH1#,VCH1#..G GRAY,TRIM1# |
4 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 71834-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 71834-26020B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-26010 |
KCH1#,VCH1#..G |
3 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28030A0 |
VCH1#..Q..4D ﾛｯｸ無,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
VCH1#..Q..4D ﾛｯｸ付,ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
3 | ||
| 71930-28030A0 |
KCH1#,VCH1#..G ﾛｯｸ付,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71931-28030B0 |
VCH1#..G ﾛｯｸ無,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
VCH1#..G ﾛｯｸ付,ﾊﾝﾃﾞｲ ｷﾔﾌﾞ(ｸﾙﾏｲｽ),GRAY,TRIM1# |
1 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,GRAY,TRIM1# |
4 | ||
| 71930-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ付,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,TRIM1# |
5 | ||
| 71931-28030B0 |
KCH1#,VCH1#..G ﾛｯｸ無,GRAY,TRIM1# |
4 | ||
| 71930-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ付,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH1#,VCH1#..Q ﾛｯｸ無,IVORY,TRIM4# |
4 | ||
| 71931-28030A0 |
KCH16,VCH1#..G ﾛｯｸ無,G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26160A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71940-26100B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26100B0 |
RCH11,VCH1#..G ﾊﾝﾃﾞｲ ｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26170A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71940-26200A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26160A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 71940-26100B0 |
KCH10,16,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26100B0 |
RCH11,VCH1#..G ﾊﾝﾃﾞｲ ｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26170A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 71940-26200A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-26020 |
KCH1#,RCH11,VCH1# NO.1 |
1 | ||
| 72210-26040 |
KCH1#,RCH11,VCH1# NO.3 |
1 | ||
| 72210-26030 |
KCH1#,RCH11,VCH1# NO.2 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-26030 |
KCH1#,RCH11,VCH1# NO.2 |
1 | ||
| 72210-26020 |
KCH1#,RCH11,VCH1# NO.1 |
1 | ||
| 72210-26040 |
KCH1#,RCH11,VCH1# NO.3 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-26020 |
KCH1#,RCH11,VCH1# NO.1 |
1 | ||
| 72210-26040 |
KCH1#,RCH11,VCH1# NO.3 |
1 | ||
| 72210-26030 |
KCH1#,RCH11,VCH1# NO.2 |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-95J01E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 72525-95J01B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 72525-95J01B0 |
KCH10,16,RCH11,VCH1# BLUISH GRAY,TRIM1# |
2 | ||
| 72525-95J01E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-95J01E1 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
2 | ||
| 72525-95J01B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
2 | ||
| 72525-95J01B0 |
KCH10,16,RCH11,VCH1# BLUISH GRAY,TRIM1# |
2 | ||
| 72525-95J01E1 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95J01C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),BLACK,TRIM4# |
1 | ||
| 72658-95J01C0 |
KCH1#,VCH1#..Q BLACK,TRIM4# |
1 | ||
| 72658-95J01C0 |
KCH1#,RCH11,VCH1#..G BLACK,TRIM1# |
1 | ||
| 72686 - PLATE, REAR SEAT BACK LOCK BELT | ||||
| 72686-26010 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-26040C0 |
KCH1#,RCH11,VCH1#..G BLACK,TRIM1# |
1 | ||
| 72690-26040C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),BLACK,TRIM4# |
1 | ||
| 72690-26040C0 |
KCH1#,VCH1#..Q BLACK,TRIM4# |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-26040C0 |
KCH1#,RCH11,VCH1#..G BLACK,TRIM1# |
1 | ||
| 72690-26040C0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),BLACK,TRIM4# |
1 | ||
| 72690-26040C0 |
KCH1#,VCH1#..Q BLACK,TRIM4# |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-26040E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72750-26040E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72750-26040B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-26040E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 72760-26040B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 72760-26040E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 72802 - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30010 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-26110B1 |
KCH1#,VCH1#..G BL. GRAY,TRIM1# |
1 | ||
| 72830-26200A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 72830-26220A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 72830-26210A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-26110B1 |
KCH1#,VCH1#..G BL. GRAY,TRIM1# |
1 | ||
| 72830-26200A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 72830-26220A0 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ,IVORY,TRIM4# |
1 | ||
| 72830-26210A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 74790 - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26020 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 79030 - LEG ASSY, NO.3 SEAT, RH | ||||
| 79030-26050 |
KCH1#,RCH11,VCH1# |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-26350A1 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79031-26440A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79031-26340A1 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79031-26361B4 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26341A3 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79031-26371B2 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26371B3 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26341A2 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79031-26361B3 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-26220A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79033-26310A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79033-26241B2 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79033-26251B5 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79033-26230A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-26220A0 |
KCH1#,VCH1#..Q IVORY,TRIM4# |
1 | ||
| 79033-26310A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79033-26241B2 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79033-26251B5 |
KCH1#,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79033-26230A0 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79169B - ROD, REAR NO.2 SEAT HINGE CONNECTOR | ||||
| 79169-26020 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-26371B0 |
KCH1#,VCH1#..G ***,ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 79320-26350E0 |
VCH1#..Q..4D ***,ﾎﾝｶﾞﾜ ｼ-ﾄ,IVORY,TRIM4# |
1 | ||
| 79320-26340E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79320-26470A0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),IVORY,TRIM4# |
1 | ||
| 79320-26341E0 |
KCH1#,VCH1#..Q ***,IVORY,TRIM4# |
1 | ||
| 79320-26361B0 |
KCH1#,VCH1#..G ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-26020 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79035-26010 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 79035-26070 |
VCH1#..Q..4D ﾌﾟﾚｽﾃ-ｼﾞ ｾﾚｸｼﾖﾝ |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79037-26130 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
1 | ||
| 79037-26140 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 79037-26030 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 79037-26040 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79037-26130 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
1 | ||
| 79037-26140 |
VCH1#..Q..4D ﾎﾝｶﾞﾜ ｼ-ﾄ |
1 | ||
| 79037-26030 |
KCH10,16,RCH11,VCH1#..G |
1 | ||
| 79037-26040 |
KCH10,16,RCH11,VCH1#..Q |
1 | ||
| 79621A - STOPPER, NO.3 SEAT CUSHION | ||||
| 79226-26010 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 79621A - STOPPER, NO.3 SEAT CUSHION | ||||
| 79226-26010 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05021B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
14 | ||
| 90467-05021E5 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
14 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-26010E0 |
KCH1#,VCH1#..Q..4D SANDAL WOOD,TRIM4# |
1 | ||
| 79959-26040E0 |
VCH1#..Q..4D SANDALWOOD,TRIM4# |
1 | ||
| 79959-26010B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79959-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-26010E0 |
KCH1#,VCH1#..Q..4D SANDAL WOOD,TRIM4# |
1 | ||
| 79959-26040E0 |
VCH1#..Q..4D SANDALWOOD,TRIM4# |
1 | ||
| 79959-26010B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79959-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-26010E0 |
KCH1#,VCH1#..Q..4D SANDAL WOOD,TRIM4# |
1 | ||
| 79959-26040E0 |
VCH1#..Q..4D SANDALWOOD,TRIM4# |
1 | ||
| 79959-26010B0 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79959-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-10241 | ||||
| 90109-06195 | ||||
| 90154-80045 | ||||
| 90168-40125 | ||||
| 90206-12050 | ||||
| 90386-06002 | ||||
| 90386-08005 | ||||
| 90463-13003 | ||||
| 90468-03018 | ||||
| 90468-14004 | ||||
| 90901-19008 | ||||
| 90901-19053 | ||||
| 91511-B0816 | ||||
| 91611-60614 | ||||
| 93249-54012 | ||||
| 93510-53510 | ||||
| 93520-54014 | ||||
| 93560-15012 | ||||
| 93560-54014 | ||||
ILLUST NO. 6 OF 7(9708-9907)G
ﾃｲｸ ｱｳﾄ ﾃ-ﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397D - STOPPER, REAR SEAT | ||||
| 71397-26090 |
VCH10..G |
2 | ||
| 71499 - STOPPER, REAR SEAT BACK | ||||
| 71499-26030 |
KCH1#,RCH11,VCH1#..G |
3 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-26050 |
KCH1#,RCH11,VCH1#..G |
4 | ||
| 71881A - BOARD, REAR SEAT BACK | ||||
| 71881-26040B1 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-26050B1 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71882D - BOARD, REAR SEAT BACK, LH | ||||
| 71882-26030B1 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 72345 - CAP, SEAT STAND FRAME | ||||
| 72345-26080 |
KCH1#,RCH11,VCH1#..G |
4 | ||
| 72345H - CAP, SEAT STAND FRAME | ||||
| 72345-26090 |
KCH1#,RCH11,VCH1#..G |
8 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-26010B1 |
KCH1#,VCH1#..G BLUISH GRAY,TRIM13 |
3 | ||
| 72728-26010B1 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
3 | ||
| 74543P - LABEL, REAR SEAT CAUTION | ||||
| 74543-26210 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 74543-26110 |
KCH1#,VCH1#..Q NO.1 |
1 | ||
| 74543-33040 |
KCH1#,VCH1#..Q NO.2 |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79305-26210 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 79305B - LEG SUB-ASSY, NO.3 SEAT NO.2 | ||||
| 79305-26220 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 79305C - LEG SUB-ASSY, NO.3 SEAT NO.3 | ||||
| 79305-26230 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 79305D - LEG SUB-ASSY, NO.3 SEAT NO.4 | ||||
| 79305-26240 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-26060 |
KCH1#,RCH11,VCH1#..G |
2 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-26060 |
KCH1#,RCH11,VCH1#..G |
2 | ||
| 79355 - PLATE, NO.3 SEAT BACK | ||||
| 79355-26010 |
KCH1#,RCH11,VCH1#..G |
8 | ||
| 79368 - SUPPORT, NO.3 SEAT BACK | ||||
| 79368-26010 |
KCH1#,RCH11,VCH1#..G |
2 | ||
| Common parts | ||||
| 90269-05019 | ||||
| 93260-56010 | ||||
| 94613-40500 | ||||
ILLUST NO. 7 OF 7(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-26080 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
1 | ||
| 71397-26040 |
KCH1#,RCH11,VCH1# |
2 | ||
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-26080 |
KCH1#,RCH11,VCH1#..G ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
1 | ||
| 71397-26040 |
KCH1#,RCH11,VCH1# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
4 | ||
| 72129-26010B1 |
KCH1#,RCH11,VCH1#..G DK.BLUISH GRAY,TRIM1# |
4 | ||
| 72129-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-26010E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
4 | ||
| 72129-26010B1 |
KCH1#,RCH11,VCH1#..G DK.BLUISH GRAY,TRIM1# |
4 | ||
| 72129-26010E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-26020B1 |
KCH1#,RCH11,VCH1#..G DK.BLUISH GRAY,TRIM1# |
4 | ||
| 72129-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
4 | ||
| 72129-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-26020B1 |
KCH1#,RCH11,VCH1#..G DK.BLUISH GRAY,TRIM1# |
4 | ||
| 72129-26020E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
4 | ||
| 72129-26020E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-26050 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-26050 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-26050 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-26050 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-26050 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-26060 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-26060 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-26060 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-26060 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-26060 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-26120 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-26150 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72170-26160 |
KCH1#,RCH11,VCH1#..G |
1 | ||
| 72170-26170 |
KCH1#,VCH1#..Q |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72160-26130 |
KCH1#,RCH11,VCH1# |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-26020 |
KCH10,16,RCH11,VCH1#..G 左側 |
1 | ||
| 72302-26030 |
KCH10,16,RCH11,VCH1#..G 右側 |
1 | ||
| 72302-26020 |
KCH10,16,RCH11,VCH1#..Q |
2 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-26020 |
KCH10,16,RCH11,VCH1#..G 左側 |
1 | ||
| 72302-26030 |
KCH10,16,RCH11,VCH1#..G 右側 |
1 | ||
| 72302-26020 |
KCH10,16,RCH11,VCH1#..Q |
2 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05021B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
14 | ||
| 90467-05021E5 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
14 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05021B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
14 | ||
| 90467-05021E5 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
14 | ||
| 79956G - COVER, NO.3 SEAT LEG SIDE, RH | ||||
| 79956-26090B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79956-26090E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79956-26090E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 79956H - COVER, NO.3 SEAT LEG SIDE, LH | ||||
| 79956-26090E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79956-26090E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 79956-26090B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79956J - COVER, NO.3 SEAT LEG, INNER RH | ||||
| 79956-26100E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 79956-26100E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| 79956-26100B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79956K - COVER, NO.3 SEAT LEG, INNER LH | ||||
| 79956-26100B0 |
KCH1#,RCH11,VCH1#..G BLUISH GRAY,TRIM1# |
1 | ||
| 79956-26100E0 |
KCH1#,VCH1#..Q SANDAL WOOD,TRIM4# |
1 | ||
| 79956-26100E0 |
KCH1#,VCH1#..G G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| Linked diagrams | ||||
| 5854 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
