VCH10W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-9907)

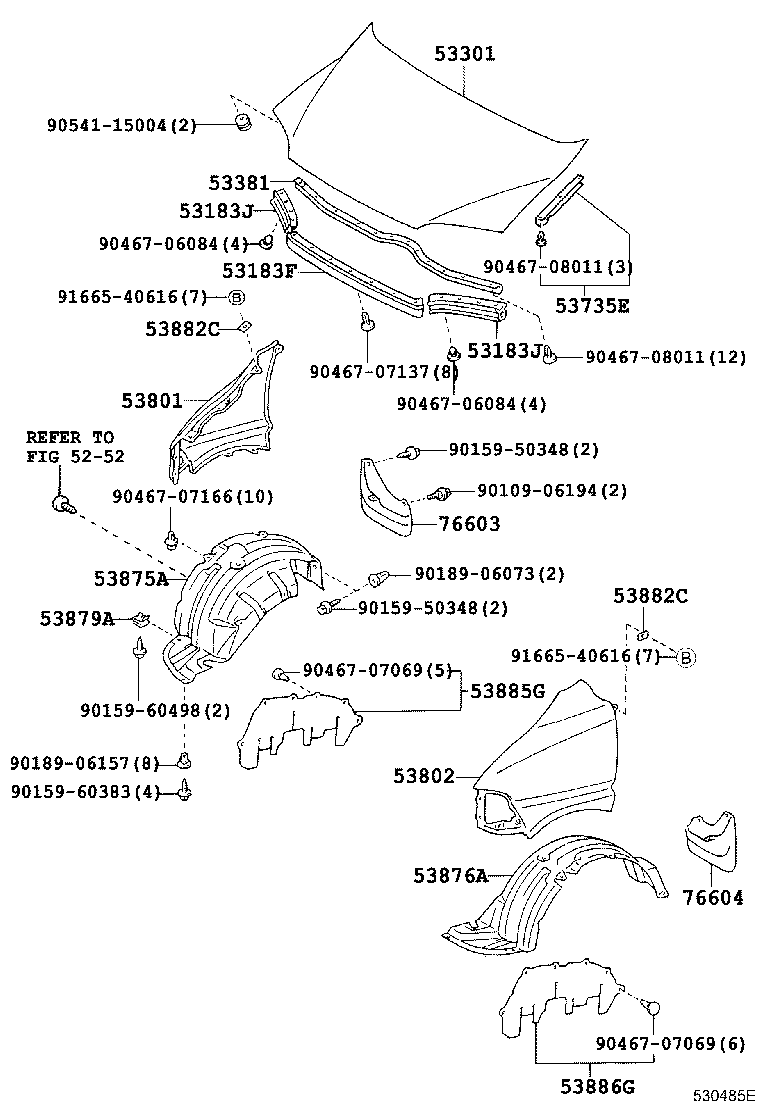

Click highlighted areas on diagram

diagram 5252 53183F 53183J 53183J 53301 53381 53735E 53801 53802 53875A 53876A 53879A 53882C 53882C 53885G 53886G 76603 76604 9010906194 9015950348 9015950348 9015960383 9015960498 9018906073 9018906157 9046706084 9046706084 9046707069 9046707069 9046707137 9046707166 9046708011 9046708011 9054115004 9166540616 9166540616
Part # Description Qty Price
53183F - SEAL, HEADLAMP COVER TO HOOD
53183-26030

KCH1#,RCH11,VCH1#

 1
53183J - SEAL, HEADLAMP COVER TO HOOD
53183-26040

KCH1#,RCH11,VCH1#

右側

 1
53183-26050

KCH1#,RCH11,VCH1#

左側

 1
53183J - SEAL, HEADLAMP COVER TO HOOD
53183-26040

KCH1#,RCH11,VCH1#

右側

 1
53183-26050

KCH1#,RCH11,VCH1#

左側

 1
53301 - HOOD SUB-ASSY
53301-26012

KCH1#,RCH11,VCH1#

 1
53301-26011

KCH1#,RCH11,VCH1#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-26010

KCH1#,RCH11,VCH1#

 1
53735E - SEAL, FRONT FENDER APRON, UPPER
53735-26010

KCH1#,RCH11,VCH1#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-26010

KCH1#,RCH11,VCH1#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-26010

KCH1#,RCH11,VCH1#

 1
53875A - LINER, FRONT FENDER, RH
53875-26010

KCH1#,RCH11,VCH1#

 1
53876A - LINER, FRONT FENDER, LH
53876-26010

KCH1#,RCH11,VCH1#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-16010

KCH1#,RCH11,VCH1#

 2
53882C - SEAL, FRONT FENDER MAIN
53882-26010

KCH1#,RCH11,VCH1#

 6
53882C - SEAL, FRONT FENDER MAIN
53882-26010

KCH1#,RCH11,VCH1#

 6
53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53807-26010

KCH10,12,RCH11,VCH10

 1
53886G - SEAL, FENDER APRON MUDGUARD, LH
53808-26010

KCH10,12,RCH11,VCH10

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-26020B0

KCH1#,RCH11,VCH1#

GRAY ME.OP.,2BW

 1
76621-26020B2

KCH1#,RCH11,VCH1#

YELLOW SILVER ME.,2CH

 1
76621-26020D0

KCH1#,VCH1#..Q

LT.GRAISH ROSE OP,2EC

 1
76621-26020B1

KCH1#,RCH11,VCH1#

BL.GRAY ME,2BA

 1
76621-26020D0

KCH1#,RCH11,VCH1#..G

LT.GRAISH ROSE OP,2EE

 1
76621-26020K0

KCH1#,RCH11,VCH1#

DK.GRAYISH PURPLE ME,2CJ

 1
76621-26010

KCH10,16,RCH11,VCH1#..G

 1
76621-26020G1

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),GRAYISH GREEN,2FG

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-26030B0

KCH1#,RCH11,VCH1#

GRAY ME.OP.,2BW

 1
76622-26030K0

KCH1#,RCH11,VCH1#

DK.GRAYISH PURPLE ME,2CJ

 1
76622-26030D0

KCH1#,VCH1#..Q

LT.GRAISH ROSE OP,2EC

 1
76622-26020

KCH10,16,RCH11,VCH1#..G

 1
76622-26030G1

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),GRAYISH GREEN,2FG

 1
76622-26030B2

KCH1#,RCH11,VCH1#

YELLOW SILVER ME.,2CH

 1
76622-26030D0

KCH1#,RCH11,VCH1#..G

LT.GRAISH ROSE OP,2EE

 1
76622-26030B1

KCH1#,RCH11,VCH1#

BL.GRAY ME,2BA

 1
Common parts
90109-06194
90159-50348
90159-60383
90159-60498
90189-06073
90189-06157
90467-06084
90467-07069
90467-07137
90467-07166
90467-08011
90541-15004
91665-40616
Linked diagrams
5252
