VCH10W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9907)

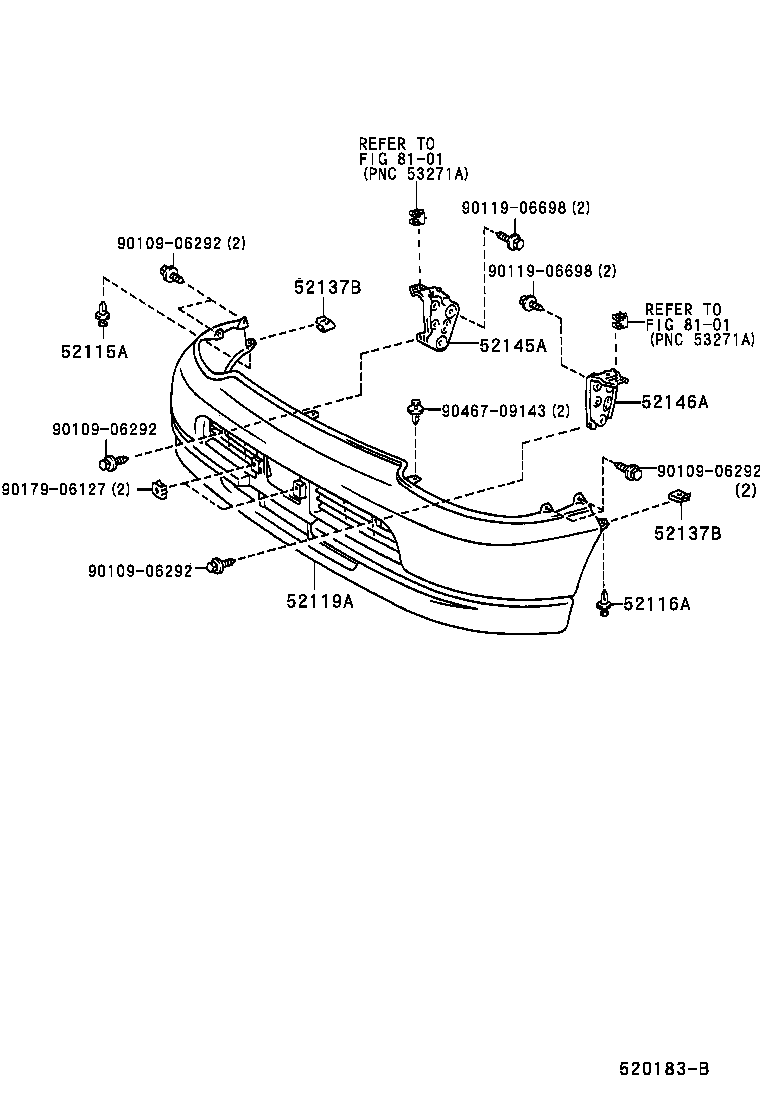

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52137B 52137B 52145A 52146A 8101 8101 9010906292 9010906292 9010906292 9010906292 9011906698 9011906698 9017906127 9046709143
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26040

KCH1#,RCH11,VCH1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-26040

KCH1#,RCH11,VCH1#

 1
52119A - COVER, FRONT BUMPER
52119-26170D0

KCH1#,VCH1#..Q

LT.GRAISH ROSE OP,2EC

 1
52119-26170B1

KCH1#,RCH11,VCH1#

GRAY ME.OP.,2BW

 1
52119-26150

KCH1#,RCH11,VCH1#

 1
52119-26181B2

KCH1#,RCH11,VCH1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),YELLOW SILVER ME.,2CH

 1
52119-26181G1

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(M) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAYISH GREEN M,2FG

 1
52119-26181B0

KCH1#,RCH11,VCH1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BL.GRAY ME,2BA

 1
52119-26170B2

KCH1#,RCH11,VCH1#

YELLOW SILVER ME.,2CH

 1
52119-26181K0

KCH1#,RCH11,VCH1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK.GRAYISH PURPLE ME,2CJ

 1
52119-26170G1

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L),GRAYISH GREEN M,2FG

 1
52119-26170D0

KCH1#,RCH11,VCH1#..G

LT.GRAISH ROSE OP,2EE

 1
52119-26181D0

KCH1#,RCH11,VCH1#..G

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),LT.GRAISH ROSE OP,2EE

 1
52119-26181D0

KCH1#,VCH1#..Q

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),LT.GRAISH ROSE OP,2EC

 1
52119-26181B1

KCH1#,RCH11,VCH1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY ME.OP.,2BW

 1
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020

KCH1#,RCH11,VCH1#

 2
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020

KCH1#,RCH11,VCH1#

 2
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-26020

KCH1#,RCH11,VCH1#

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-26020

KCH1#,RCH11,VCH1#

 1
Common parts
90109-06292
90119-06698
90179-06127
90467-09143
Linked diagrams
8101
