VCH10W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-9907)VCH10..G ; (9708-9907)KCH10,RCH11 ; (9708- )VCH10..Q ; (9907- )VCH

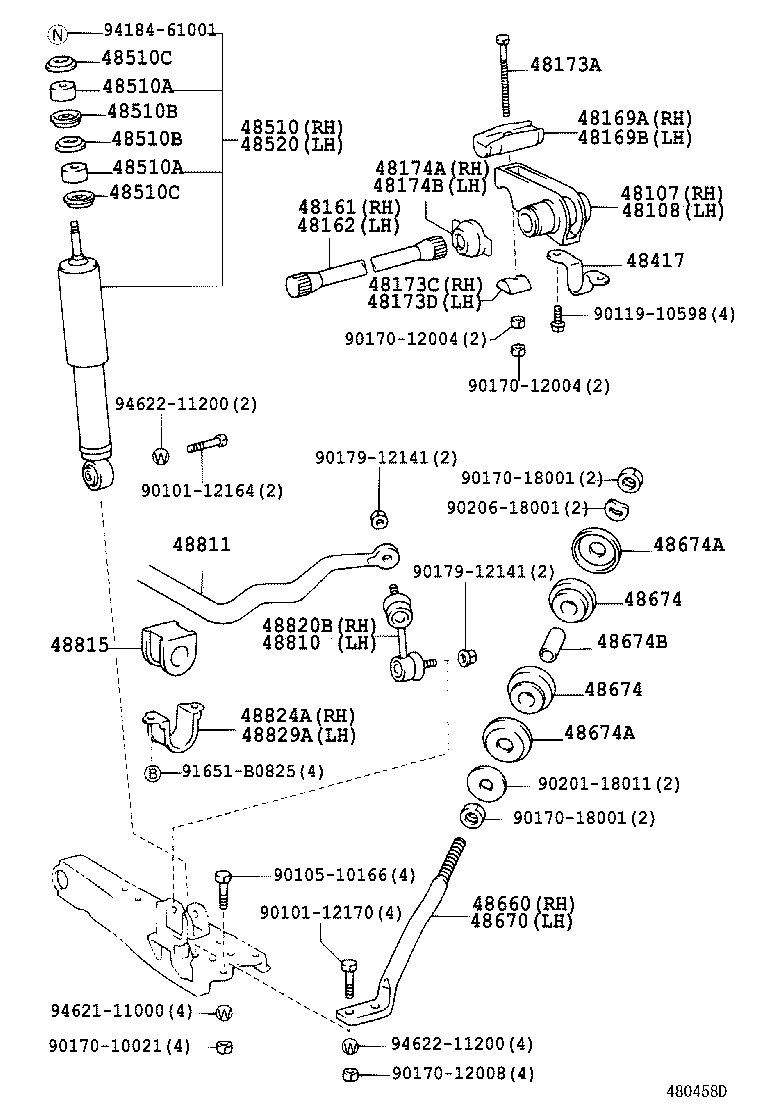

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169A 48169B 48173A 48173C 48173D 48174A 48174B 48417 48510 48510A 48510A 48510B 48510B 48510C 48510C 48520 48660 48670 48674 48674 48674A 48674A 48674B 48810 48811 48815 48820B 48824A 48829A 9010112164 9010112170 9010510166 9011910598 9017010021 9017012004 9017012004 9017012008 9017018001 9017018001 9017912141 9017912141 9020118011 9020618001 91651B0825 9418461001 9462111000 9462211200 9462211200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-26080

KCH1#,RCH11,VCH1#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-26080

KCH10,12,RCH11,VCH10

 1
48161 - SPRING, TORSION BAR, RH
48161-26340

RCH11,VCH10

 1
48162 - SPRING, TORSION BAR, LH
48162-26340

RCH11,VCH10

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-26060

KCH1#,RCH11,VCH1#

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-26060

KCH1#,RCH11,VCH1#

 1
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12165

KCH1#,RCH11,VCH1#

 2
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-27010

KCH1#,RCH11,VCH1#

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-27010

KCH1#,RCH11,VCH1#

 1
48174A - COVER, TORSION BAR DUST, RH
48174-26010

KCH1#,RCH11,VCH1#

 1
48174B - COVER, TORSION BAR DUST, LH
48174-26010

KCH1#,RCH11,VCH1#

 1
48417 - BRACKET, SPRING
48417-26030

KCH1#,RCH11,VCH1#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80054

VCH10;KCH10,RCH11..G

ﾏｰｸ 48511−26490

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

KCH1#,RCH11,VCH1#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

KCH1#,RCH11,VCH1#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

KCH1#,RCH11,VCH1#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

KCH1#,RCH11,VCH1#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

KCH1#,RCH11,VCH1#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

KCH1#,RCH11,VCH1#

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80054

VCH10;KCH10,RCH11..G

ﾏｰｸ 48511−26490

 1
48660 - BAR ASSY, STRUT, RH
48661-26040

KCH10,RCH11,VCH10

 1
48670 - BAR ASSY, STRUT, LH
48661-26040

KCH10,RCH11,VCH10

 1
48674 - CUSHION, STRUT BAR
48674-26021

KCH10,12,RCH11,VCH10

 4
48674 - CUSHION, STRUT BAR
48674-26021

KCH10,12,RCH11,VCH10

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02062

KCH10,12,RCH11,VCH10

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02062

KCH10,12,RCH11,VCH10

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18005

KCH10,12,RCH11,VCH10

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-26020

KCH10,RCH11,VCH10

 1
48811 - BAR, STABILIZER, FRONT
48811-26361

VCH10

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-26330

VCH10

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-26020

KCH10,RCH11,VCH10

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-26190

KCH10,RCH11,VCH10

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-26190

KCH10,RCH11,VCH10

 1
Common parts
90101-12164
90101-12170
90105-10166
90119-10598
90170-10021
90170-12004
90170-12008
90170-18001
90179-12141
90201-18011
90206-18001
91651-B0825
94184-61001
94621-11000
94622-11200
