VCH10W-GFSQK (1997)
Toyota Granvia/Grand Hiace

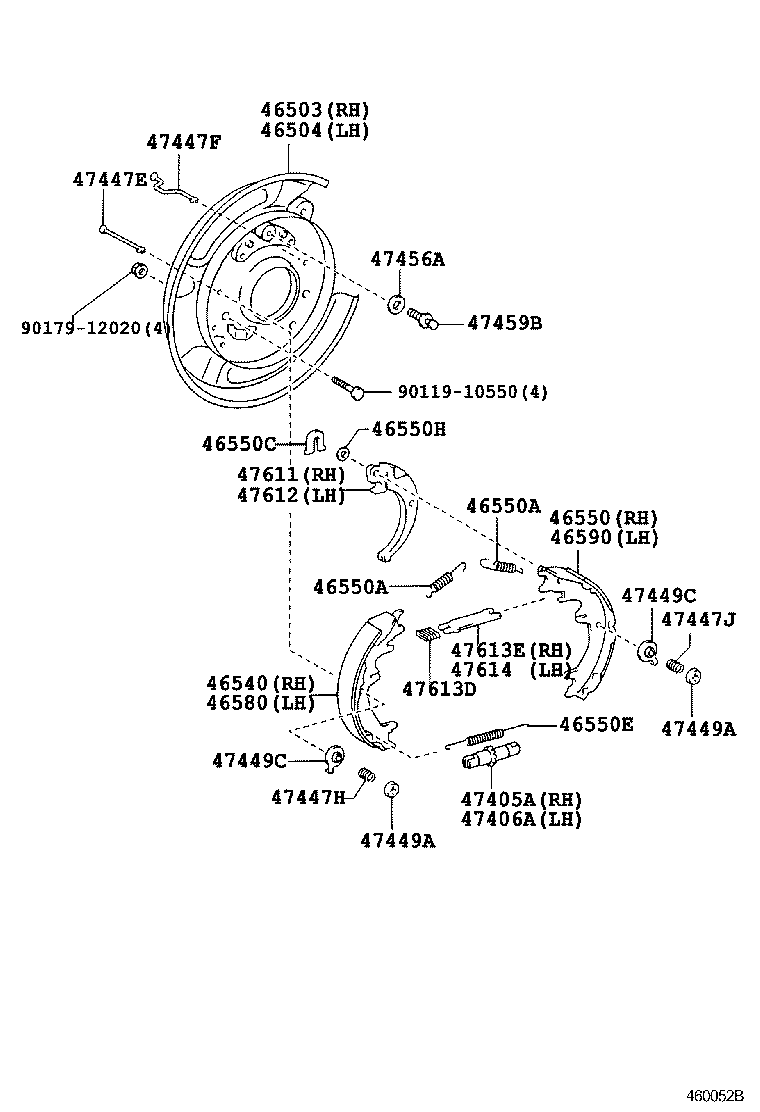

ILLUST NO. 2 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-26011 |
KCH1#,RCH11,VCH1# |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-26011 |
KCH1#,RCH11,VCH1# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-28010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-28010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
KCH1#,RCH11,VCH1# |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
KCH1#,RCH11,VCH1# |
4 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
KCH1#,RCH11,VCH1# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
KCH1#,RCH11,VCH1# |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
KCH1#,RCH11,VCH1# 厚さ=0.3 |
1 | ||
| 90564-09186 |
KCH1#,RCH11,VCH1# 厚さ=0.9 |
1 | ||
| 90564-09185 |
KCH1#,RCH11,VCH1# 厚さ=0.6 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-28010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-28010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
KCH1#,RCH11,VCH1# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
KCH1#,RCH11,VCH1# |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30010 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
KCH1#,RCH11,VCH1# |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
KCH1#,RCH11,VCH1# |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KCH1#,RCH11,VCH1# |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KCH1#,RCH11,VCH1# |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-14030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-14030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
KCH1#,RCH11,VCH1# |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
KCH1#,RCH11,VCH1# |
1 | ||
| Common parts | ||||
| 90119-10550 | ||||
| 90179-12020 | ||||
