VCH10W-GFSQK (1997)

Toyota Granvia/Grand Hiace

Production Aug 1997 - Jul 1999
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )VCH1#,2#

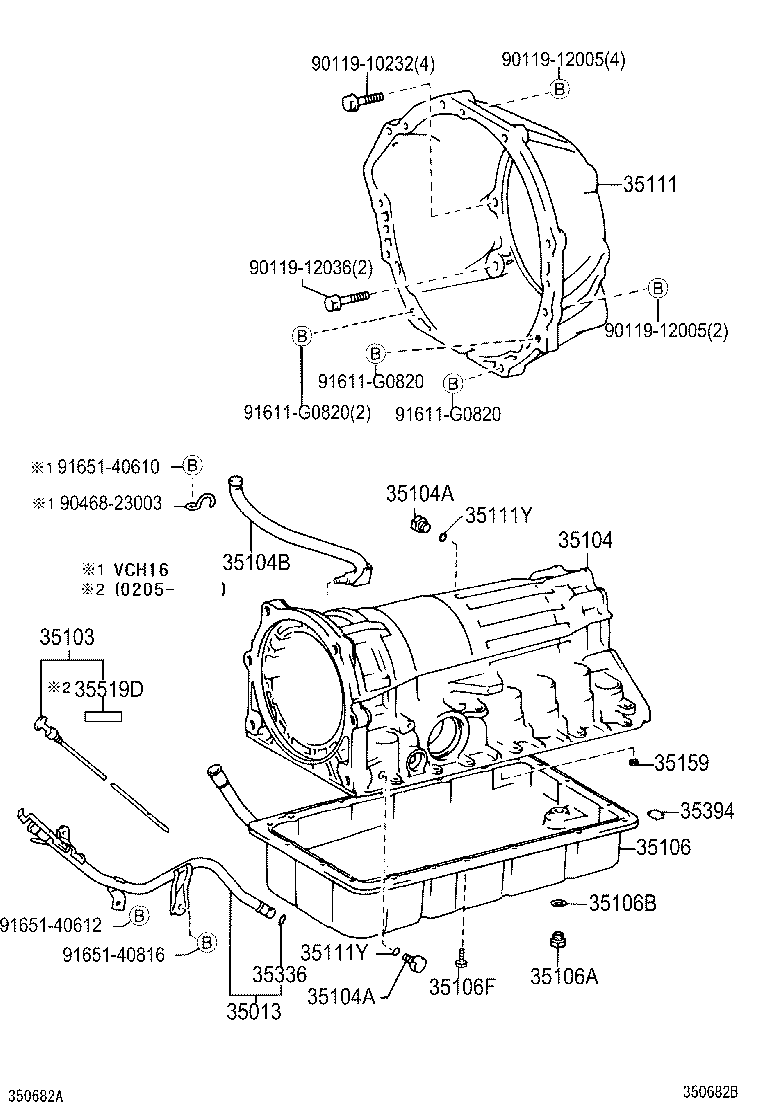

Click highlighted areas on diagram

A343E,A343F

diagram 35013 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35106F 35111 35111Y 35111Y 35159 35336 35394 35519D 9011910232 9011912005 9011912005 9011912036 9046823003 91611G0820 91611G0820 91611G0820 9165140610 9165140612 9165140816
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-26230

VCH1#

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-26190

VCH1#

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-35030

VCH1#

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KCH10,12,RCH11,VCH1#

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KCH10,12,RCH11,VCH1#

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03108

VCH10

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-26040

KCH1#,VCH1#

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

KCH1#,RCH11,VCH1#

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

KCH1#,RCH11,VCH1#

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

KCH1#,VCH1#

 19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-35060

VCH1#

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KCH1#,RCH11,VCH1#

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KCH1#,RCH11,VCH1#

 2
35159 - GASKET, BRAKE DRUM
35159-30010

KCH1#,VCH1#

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09011

VCH1#

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

KCH1#,VCH1#

 3
Common parts
90119-10232
90119-12005
90119-12036
90468-23003
91611-G0820
91651-40610
91651-40612
91651-40816
