RCH11W-GFSQK (1995)
Toyota Granvia/Grand Hiace
ILLUST NO. 1 OF 2(9508-9907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04077 |
RCH11 NO.1 |
1 | ||
| 90980-04112 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04077 |
RCH11 NO.1 |
1 | ||
| 90980-04112 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04077 |
RCH11 NO.1 |
1 | ||
| 90980-04112 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-26010 |
KCH10,16,RCH11 MATSUSHITA,ID=56000,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 86120-2B480 |
KCH10,16,RCH11..G MATSUSHITA,ID=55401,AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅｶｾﾂﾄ,1DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-2B490 |
KCH10,16,RCH11..Q MATSUSHITA,ID=55844,AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅ CD ｶｾﾂﾄ,2DIN |
1 | ||
| 86120-35120 |
KCH10,16,RCH11 MATSUSHITA,ID=55809,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86120-26030 |
KCH10,16,RCH11 MATSUSHITA,ID=56011,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁ AV ｽﾃｰｼﾖﾝ") |
1 | ||
| 86120-2A340 |
KCH10,16,RCH11 MATSUSHITA,ID=55823,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86120-2B540 |
KCH10,16,RCH11 MATSUSHITA,ID=55817,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86120-26021 |
KCH10,16,RCH11 MATSUSHITA,ID=56016,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 86120-26020 |
KCH10,16,RCH11 MATSUSHITA,ID=56012,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 86120-26031 |
KCH10,16,RCH11 MATSUSHITA,ID=56017,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁ AV ｽﾃｰｼﾖﾝ") |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-26010 |
KCH10,16,RCH11 MATSUSHITA,ID=56000,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 86120-2B480 |
KCH10,16,RCH11..G MATSUSHITA,ID=55401,AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅｶｾﾂﾄ,1DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-2B490 |
KCH10,16,RCH11..Q MATSUSHITA,ID=55844,AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅ CD ｶｾﾂﾄ,2DIN |
1 | ||
| 86120-35120 |
KCH10,16,RCH11 MATSUSHITA,ID=55809,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86120-26030 |
KCH10,16,RCH11 MATSUSHITA,ID=56011,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁ AV ｽﾃｰｼﾖﾝ") |
1 | ||
| 86120-2A340 |
KCH10,16,RCH11 MATSUSHITA,ID=55823,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86120-2B540 |
KCH10,16,RCH11 MATSUSHITA,ID=55817,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86120-26021 |
KCH10,16,RCH11 MATSUSHITA,ID=56016,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 86120-26020 |
KCH10,16,RCH11 MATSUSHITA,ID=56012,"ﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 86120-26031 |
KCH10,16,RCH11 MATSUSHITA,ID=56017,ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ & "ﾏﾙﾁ AV ｽﾃｰｼﾖﾝ") |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86214-26010 |
KCH1#,RCH11,VCH1# |
1 | ||
| Common parts | ||||
| 86269-26070 | ||||
| 90119-06005 | ||||
| 90119-08063 | ||||
| 90153-50010 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8604 | ||||

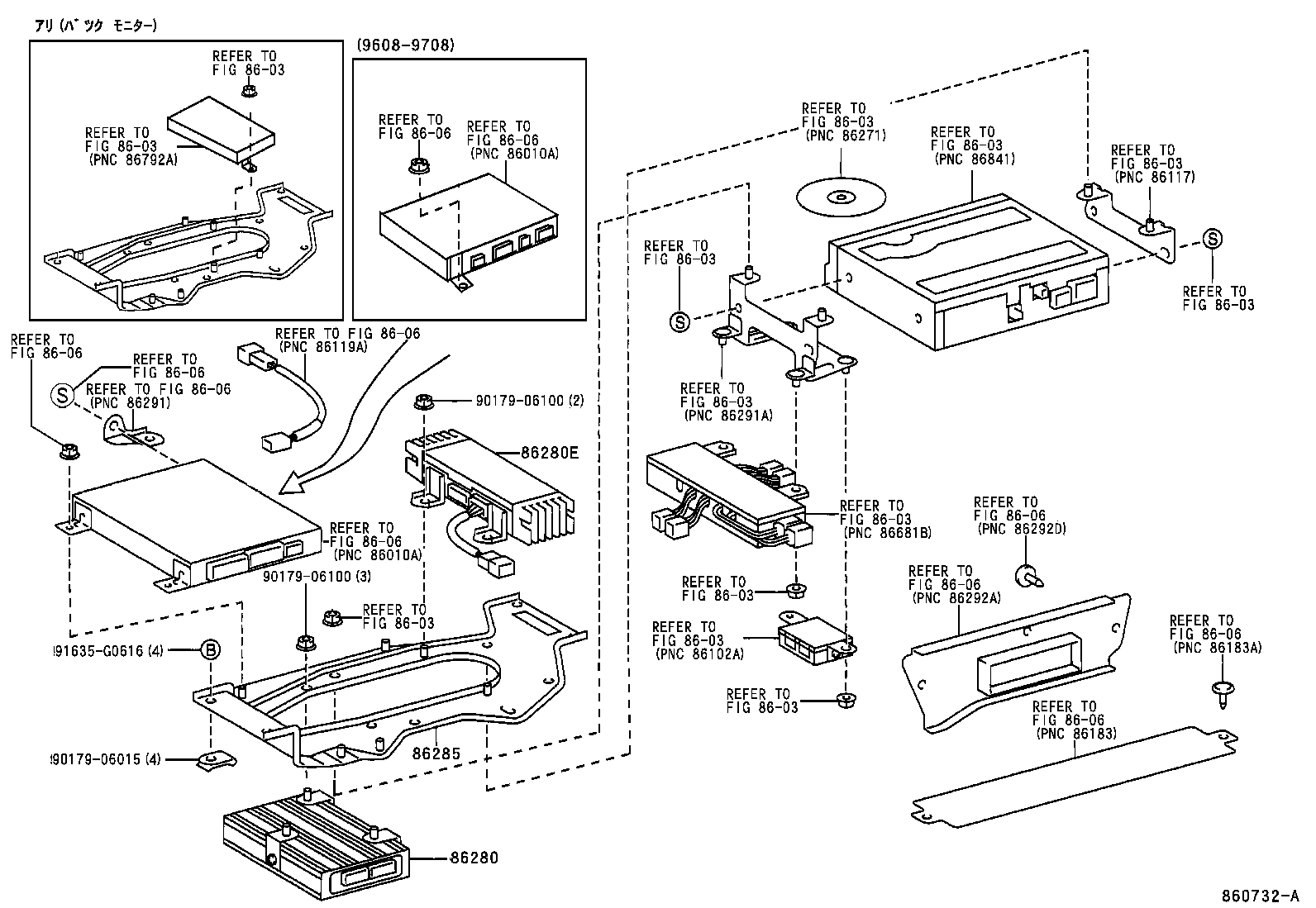

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-26120 |
KCH10,16,RCH11 ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86280E - AMPLIFIER SET, STEREO COMPONENT | ||||
| 86280-26130 |
KCH10,16,RCH11 ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 86280-26140 |
KCH10,16,RCH11 ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-26050 |
KCH10,16,RCH11 ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06100 | ||||
| 91635-G0616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8606 | ||||
