RCH11W-GFSQK (1995)
Toyota Granvia/Grand Hiace

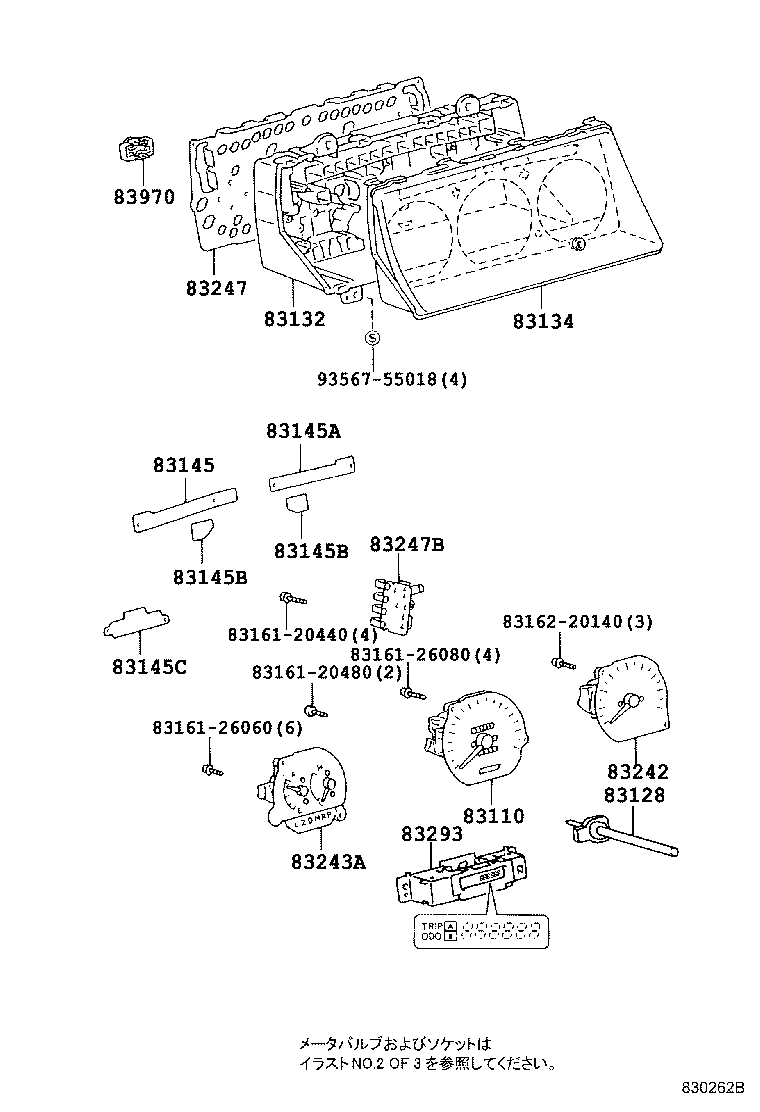

ILLUST NO. 1 OF 3(9508-9708)G
ｱﾅﾛｸﾞﾒ-ﾀ,ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26080 |
RCH11..G YAZAKI |
1 | ||
| 83220-26100 |
RCH11..Q YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83841-26160 |
KCH10,16,RCH11..G |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-26140 |
KCH1#,RCH11..DX,G |
1 | ||
| 83821-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-26150 |
KCH1#,RCH11..DX,G |
1 | ||
| 83833-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26260 |
RCH11..G |
1 | ||
| 83834-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KCH10,16,RCH11..Q |
2 | ||
| 83145-2B460 |
KCH1#,RCH11..DX,G |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KCH10,16,RCH11..Q |
2 | ||
| 83145-2B460 |
KCH1#,RCH11..DX,G |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-26240 |
KCH1#,RCH11..DX,G |
1 | ||
| 83831-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-26190 |
RCH11..G |
1 | ||
| 83881-26220 |
RCH11..Q |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83882-26160 |
KCH10,16,RCH11..G |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-26190 |
RCH11..G |
1 | ||
| 83861-26220 |
RCH11..Q |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-26860 |
KCH1#,RCH11..DX,G |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KCH1#,RCH11..DX,G |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-26060 | ||||
| 83161-26080 | ||||
| 83162-20140 | ||||
| 93567-55018 | ||||

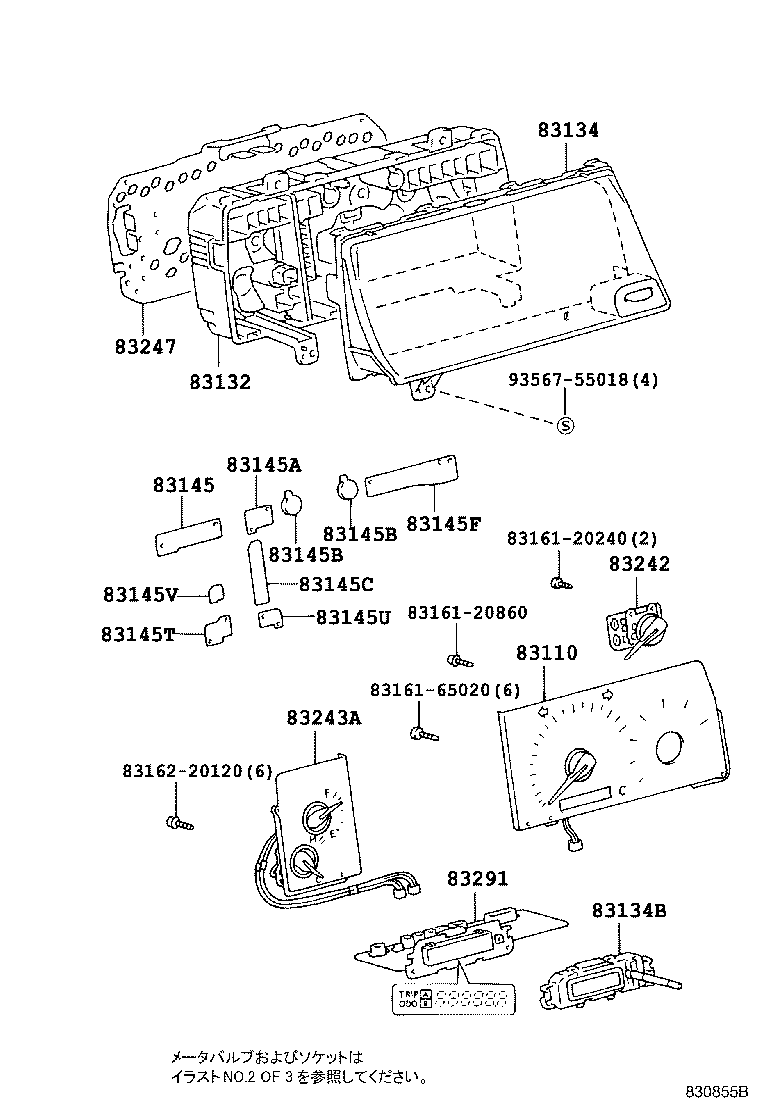

ILLUST NO. 1 OF 3(9508-9708)Q
ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26080 |
RCH11..G YAZAKI |
1 | ||
| 83220-26100 |
RCH11..Q YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83841-26160 |
KCH10,16,RCH11..G |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-26140 |
KCH1#,RCH11..DX,G |
1 | ||
| 83821-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-26150 |
KCH1#,RCH11..DX,G |
1 | ||
| 83833-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26260 |
RCH11..G |
1 | ||
| 83834-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KCH10,16,RCH11..Q |
2 | ||
| 83145-2B460 |
KCH1#,RCH11..DX,G |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KCH10,16,RCH11..Q |
2 | ||
| 83145-2B460 |
KCH1#,RCH11..DX,G |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-26240 |
KCH1#,RCH11..DX,G |
1 | ||
| 83831-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83831-26220 |
RCH11..Q |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83836-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83837-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83145V - LENS, METER, NO.10 | ||||
| 83832-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-26190 |
RCH11..G |
1 | ||
| 83881-26220 |
RCH11..Q |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-26200 |
KCH10,16,RCH11..Q |
1 | ||
| 83882-26160 |
KCH10,16,RCH11..G |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-26190 |
RCH11..G |
1 | ||
| 83861-26220 |
RCH11..Q |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-26090 |
KCH10,16,RCH11..Q YAZAKI |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20860 | ||||
| 83161-65020 | ||||
| 83162-20120 | ||||
| 93567-55018 | ||||

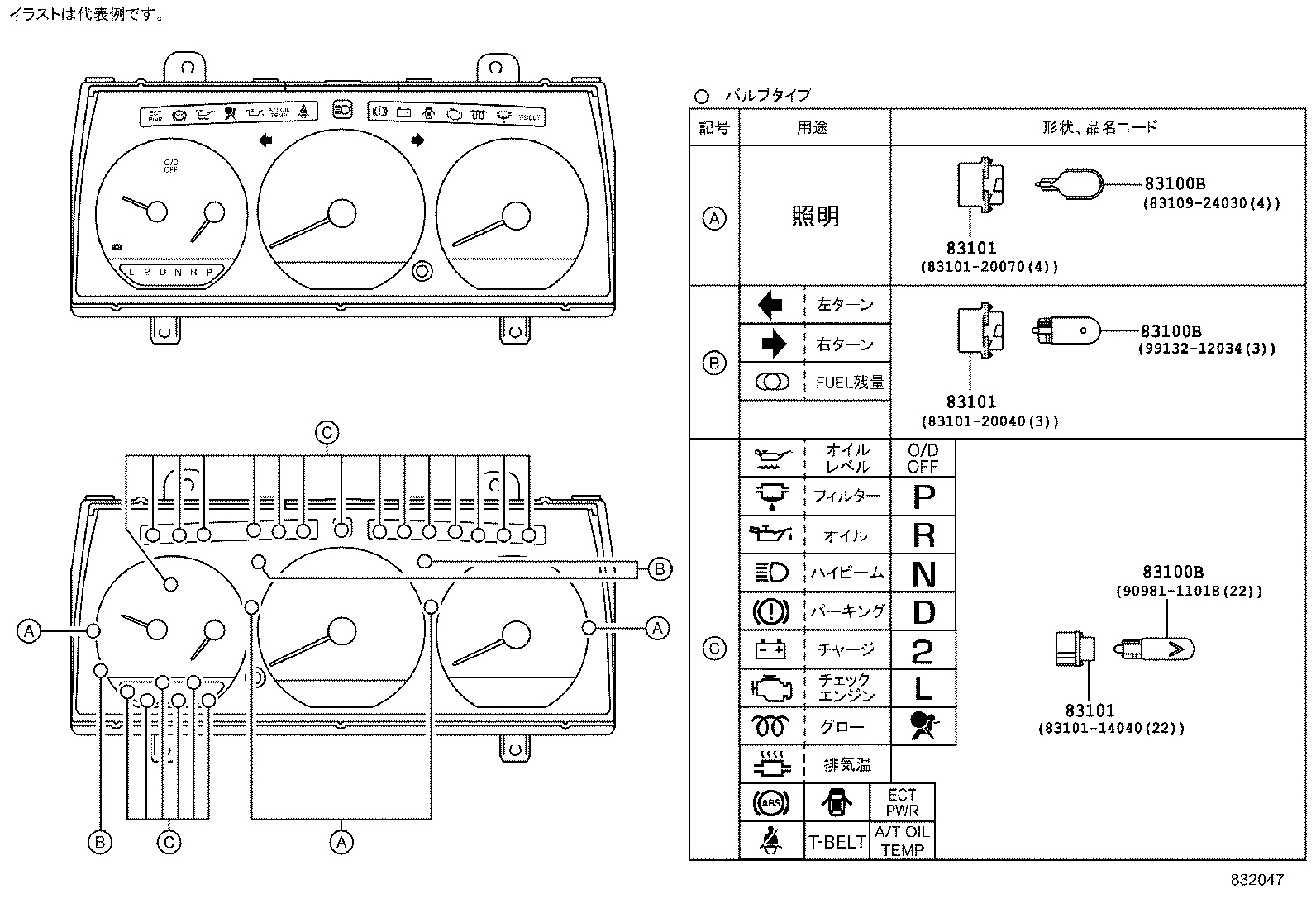

ILLUST NO. 2 OF 3(9508-9708)G
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ,ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||

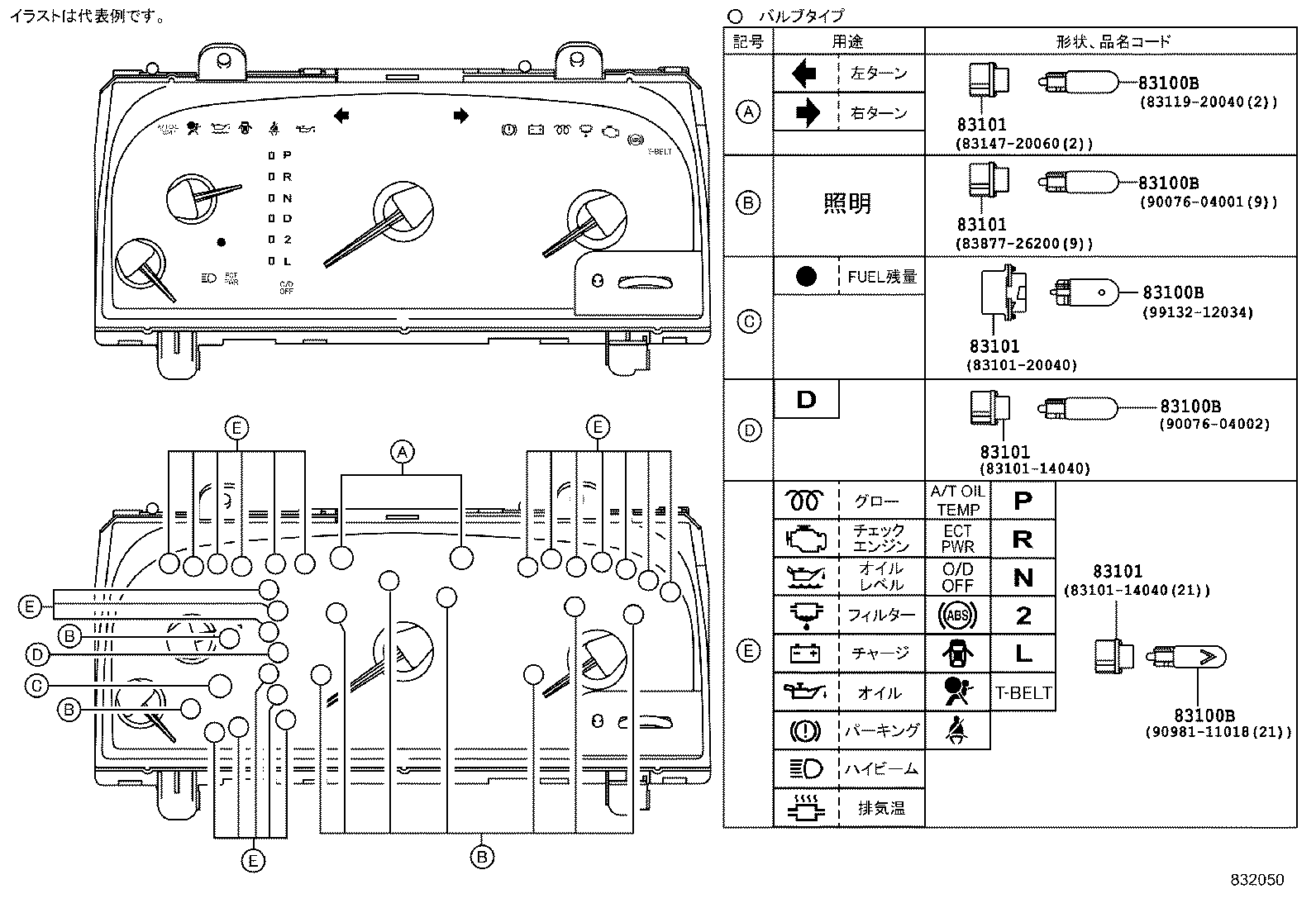

ILLUST NO. 2 OF 3(9508-9708)Q
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RCH11..G 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 90076-04001 |
KCH10,16,RCH11..Q 12V 3.0W,照明 |
9 | ||
| 99132-12034 |
KCH1#,RCH11..DX,G 12V 3.4W |
3 | ||
| 90076-04002 |
KCH10,16,RCH11..Q 12V 2W |
1 | ||
| 83109-24030 |
KCH10,16,RCH11..G 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
KCH10,16,RCH11..Q 12V 3.4W |
1 | ||
| 83119-20040 |
KCH10,16,RCH11..Q 12V 3.0W |
2 | ||
| 90981-11018 |
RCH11 12V 1.2W ｿｹｯﾄ無し |
18 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KCH1#,RCH11 |
1 | ||
| 83101-20070 |
KCH1#,RCH11..DX,G 照明 |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83147-20060 |
KCH10,16,RCH11..Q ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83101-20040 |
KCH1#,RCH11 ｱﾅﾛｸﾞ ﾒ-ﾀ,ﾀｰﾝ |
1 | ||
| 83877-26200 |
KCH10,16,RCH11..Q 照明 |
1 | ||

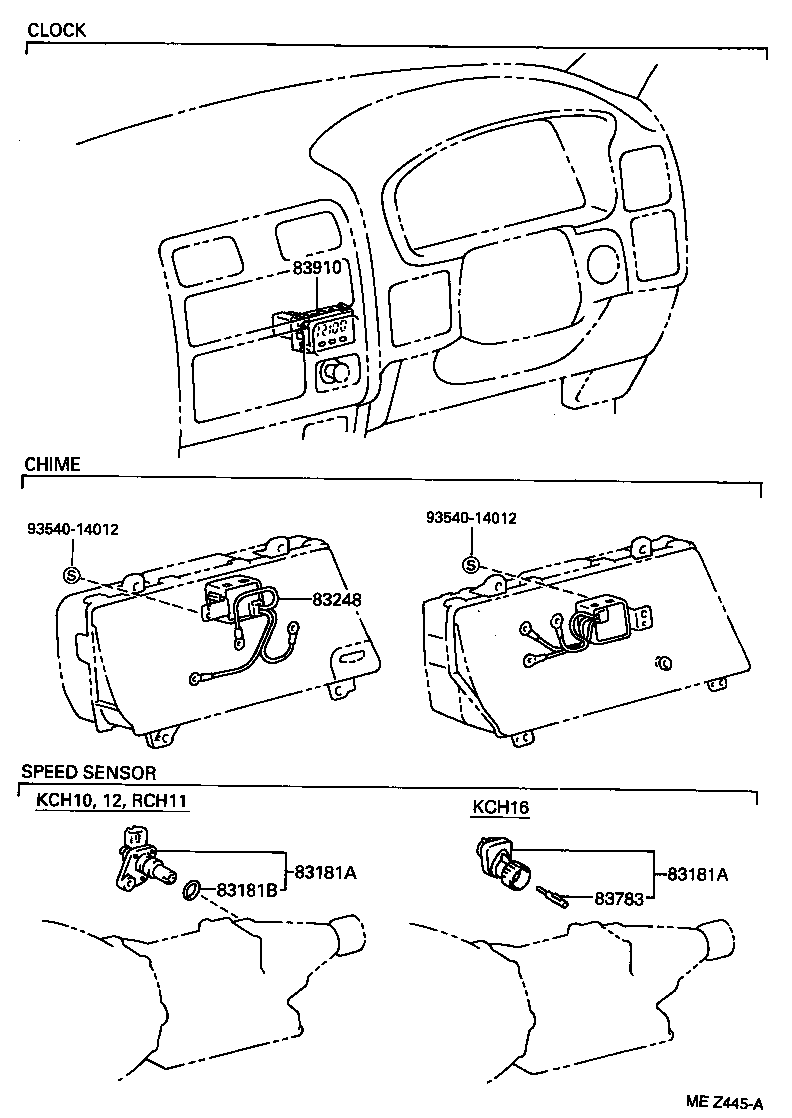

ILLUST NO. 3 OF 3(9508-9907)
ｸﾛﾂｸ,ﾁﾔｲﾑ & ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-28010 |
KCH10,12,RCH11 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-28010 |
KCH10,12,RCH11 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
KCH10,12,RCH11 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-33020 |
KCH10,RCH11..G |
1 | ||
| 86650-12030 |
KCH10,16,RCH11..Q |
1 | ||
| 86650-20030 |
KCH10,16,RCH11..G |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-26020 |
KCH1#,RCH11,VCH1# |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
