RCH11W-GFSQK (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Aug 1997
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9708)KCH10,16,RCH11

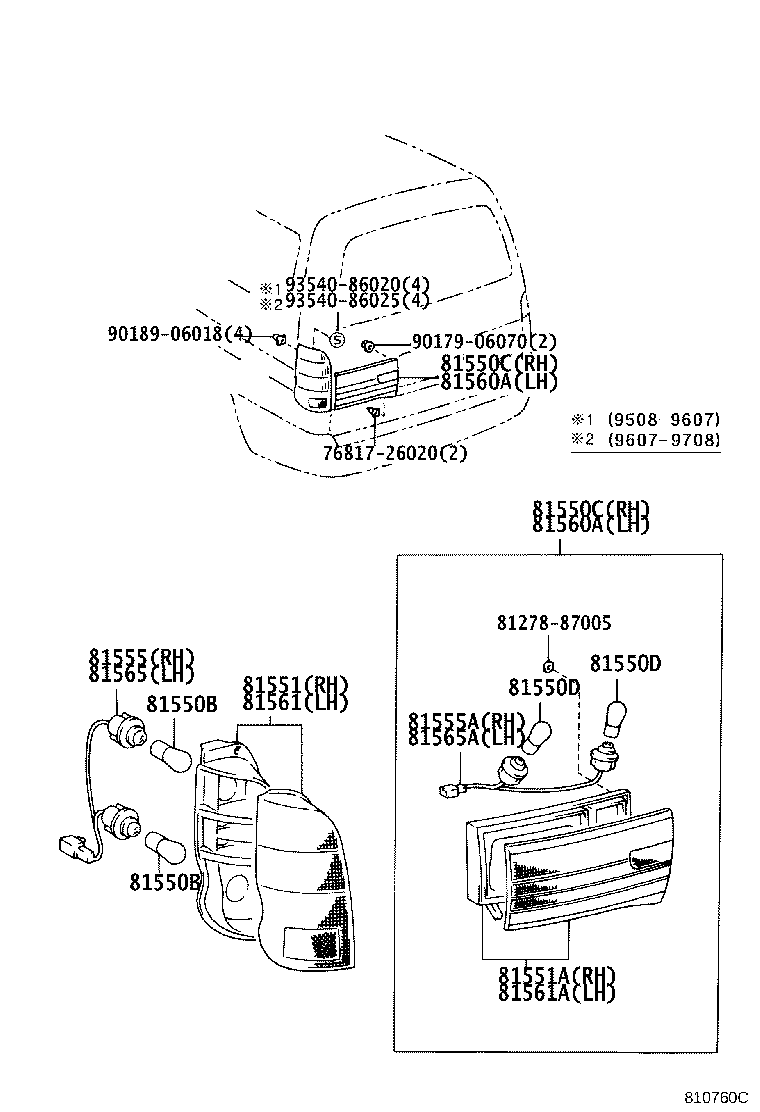

Click highlighted areas on diagram

diagram 7681726020 8127887005 81550B 81550B 81550C 81550C 81550D 81550D 81551 81551A 81555 81555A 81560A 81560A 81561 81561A 81565 81565A 9017906070 9018906018 9354086020 9354086025
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KCH1#,RCH11

12V 21/5W

 2
99132-11210

KCH10,16,RCH11

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

KCH1#,RCH11

12V 21/5W

 2
99132-11210

KCH10,16,RCH11

12V 21W

 2
81550C - LAMP ASSY, REAR COMBINATION, RH
81550-26170

KCH10,16,RCH11

 1
81550C - LAMP ASSY, REAR COMBINATION, RH
81550-26170

KCH10,16,RCH11

 1
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KCH10,16,RCH11

12V 21W

 2
99132-21210

KCH10,16,RCH11

12V 21/5W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KCH10,16,RCH11

12V 21W

 2
99132-21210

KCH10,16,RCH11

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-26160B2

KCH10,16,RCH11

GRAY ME.OP,1A6

 1
81551-26160G0

KCH10,16,RCH11..Q

MARVEL GREEN T.G,2AZ

 1
81551-26160B0

KCH10,16,RCH11..G

BL.GRAY ME,182

 1
81551-26160G1

KCH10,16,RCH11

GR.GREEN ME.,2BP

 1
81551-26160A0

KCH10,16,RCH11..Q

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,*(E),WHITE PEARL MC,2CH

 1
81551-26160A0

KCH10,16,RCH11..G

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,*(C),*(D),WHITE PEARL MC,2CH

 1
81551-26160H0

KCH10,16,RCH11..G

BL.GRAY ME,2BA

 1
81551-26160A0

KCH10,16,RCH11..G

Gﾘﾐﾃﾂﾄﾞ,WHITE PEARL MC,2CH

 1
81551-26160D0

KCH10,16,RCH11

LT.GRAISH ROSE OP,2CJ

 1
81551-26160B1

KCH10,16,RCH11

SILVER ME,2BW

 1
81551-26160H0

KCH10,16,RCH11

BL.GRAY ME,2BA

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81551-26170

KCH10,16,RCH11

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-26160

KCH10,16,RCH11

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-26170

KCH10,16,RCH11

 1
81560A - LAMP ASSY, REAR COMBINATION, LH
81560-26170

KCH10,16,RCH11

 1
81560A - LAMP ASSY, REAR COMBINATION, LH
81560-26170

KCH10,16,RCH11

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-26160H0

KCH10,16,RCH11..G

BL.GRAY ME,2BA

 1
81561-26160B1

KCH10,16,RCH11

SILVER ME,2BW

 1
81561-26160G0

KCH10,16,RCH11..Q

MARVEL GREEN T.G,2AZ

 1
81561-26160D0

KCH10,16,RCH11

LT.GRAISH ROSE OP,2CJ

 1
81561-26160B0

KCH10,16,RCH11..G

BL.GRAY ME,182

 1
81561-26160A0

KCH10,16,RCH11..G

Gﾘﾐﾃﾂﾄﾞ,WHITE PEARL MC,2CH

 1
81561-26160B2

KCH10,16,RCH11

GRAY ME.OP,1A6

 1
81561-26160A0

KCH10,16,RCH11..G

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,*(C),*(D),WHITE PEARL MC,2CH

 1
81561-26160G1

KCH10,16,RCH11

GR.GREEN ME.,2BP

 1
81561-26160H0

KCH10,16,RCH11

BL.GRAY ME,2BA

 1
81561-26160A0

KCH10,16,RCH11..Q

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,*(E),WHITE PEARL MC,2CH

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81561-26170

KCH10,16,RCH11

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-26160

KCH10,16,RCH11

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-26170

KCH10,16,RCH11

 1
Common parts
76817-26020
81278-87005
90179-06070
90189-06018
93540-86020
93540-86025
