RCH11W-GFSQK (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Aug 1997
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

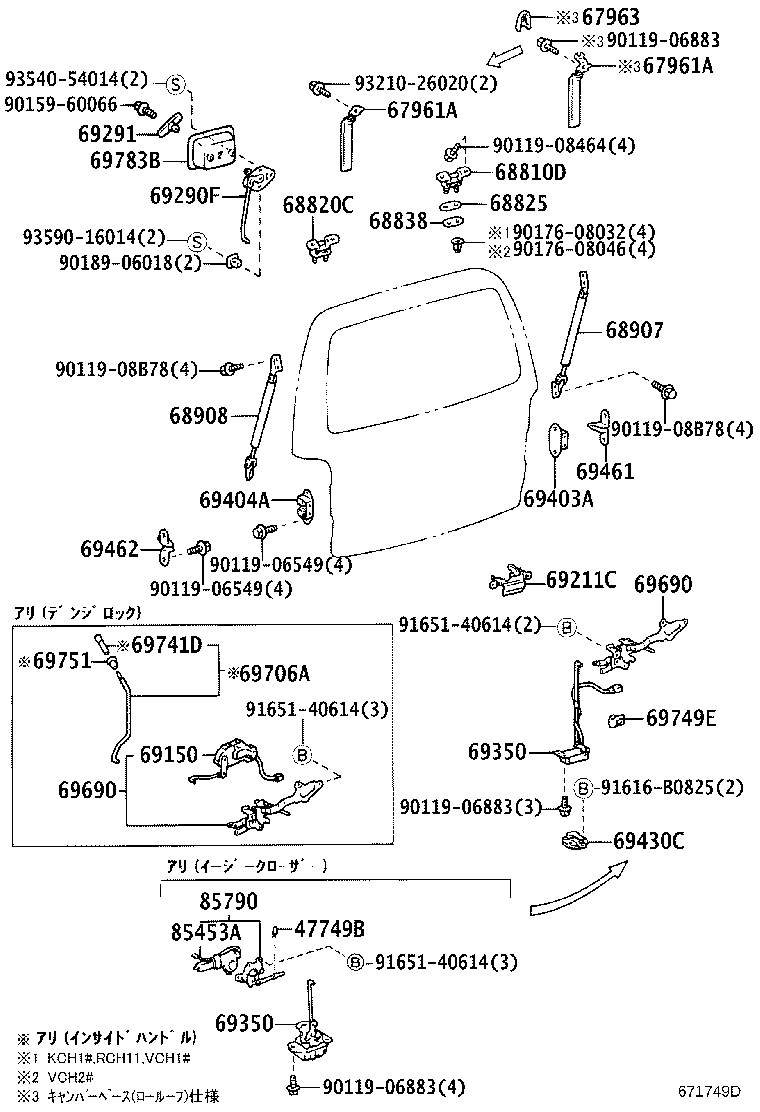

Click highlighted areas on diagram

diagram 47749B 67961A 67961A 67963 68810D 68820C 68825 68838 68907 68908 69150 69211C 69290F 69291 69350 69350 69403A 69404A 69430C 69461 69462 69690 69690 69706A 69741D 69749E 69751 69783B 85453A 85790 9011906549 9011906549 9011906883 9011906883 9011906883 9011908464 9011908B78 9011908B78 9015960066 9017608032 9017608046 9018906018 91616B0825 9165140614 9165140614 9165140614 9321026020 9354054014 9359016014
Part # Description Qty Price
68810D - HINGE ASSY, BACK DOOR, RH
68810-26010

KCH1#,RCH11,VCH1#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-26010

KCH1#,RCH11,VCH1#

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

KCH1#,RCH11,VCH1#

 2
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-26260

KCH10,16,RCH11

 1
68907-26280

KCH10,16,RCH11

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ)

 1
68907-26090

KCH10,16,RCH11..Q

 1
68907-26270

KCH10,16,RCH11

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ)

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-26260

KCH10,16,RCH11

 1
68908-26280

KCH10,16,RCH11

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ)

 1
68908-26090

KCH10,16,RCH11..Q

 1
68908-26270

KCH10,16,RCH11

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ)

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-26020

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69150-26010

KCH1#,RCH11,VCH1#..DX,G

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-26020

KCH1#,RCH11,VCH1#

 1
69350 - LOCK ASSY, BACK DOOR
69350-26020

KCH1#,RCH11

 1
69350 - LOCK ASSY, BACK DOOR
69350-26020

KCH1#,RCH11

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-26020

KCH1#,RCH11

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-26020

KCH1#,RCH11

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95J00

KCH1#,RCH11

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69401-26010

KCH1#,RCH11

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69401-26010

KCH1#,RCH11

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-26040

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69690-26030

KCH1#,RCH11,VCH16..DX,G

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-26040

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69690-26030

KCH1#,RCH11,VCH16..DX,G

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

KCH1#,RCH11,VCH1#

 1
Common parts
90119-06549
90119-06883
90119-08464
90119-08B78
90159-60066
90176-08032
90176-08046
90189-06018
91616-B0825
91651-40614
93210-26020
93540-54014
93590-16014
