RCH11W-GFSQK (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Aug 1997
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )KCH10,12,RCH11,VCH10,22

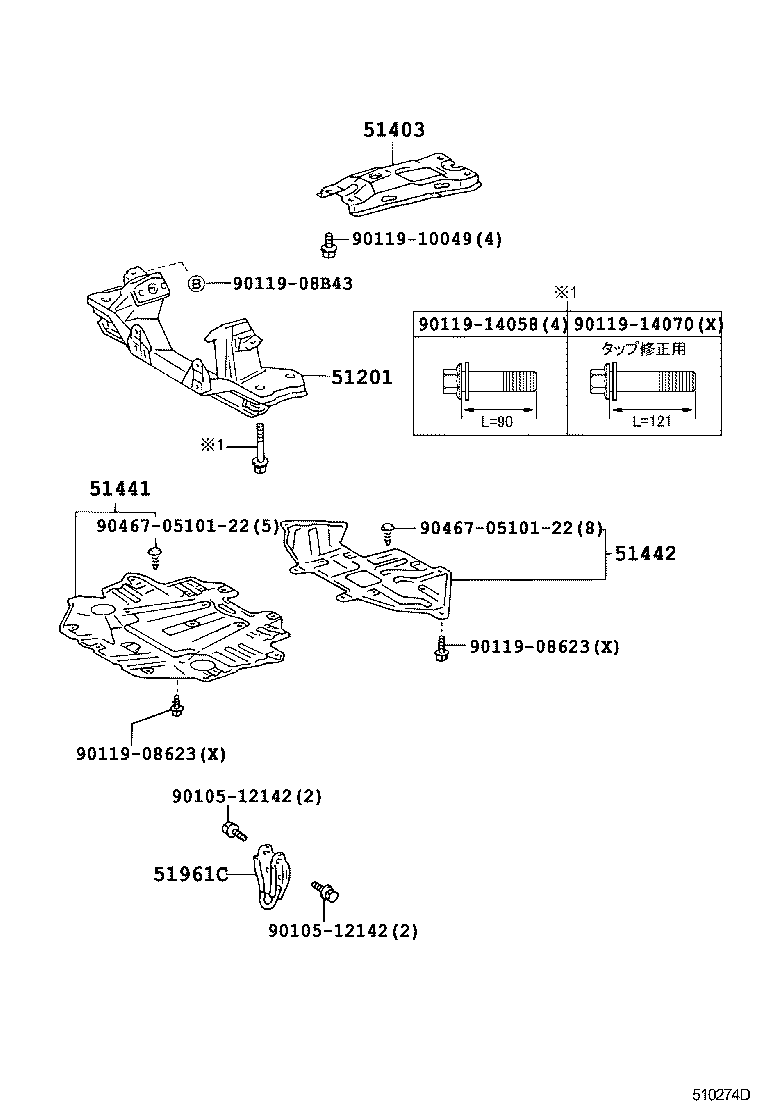

Click highlighted areas on diagram

diagram 51201 51403 51441 51442 51961C 9010512142 9010512142 9011908623 9011908623 9011908B43 9011910049 9011914058 9011914070 904670510122 904670510122
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-26130

RCH11

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-26060

RCH11

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-26050

KCH10,12,RCH11

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-26050

KCH10,12,RCH11

 1
51961C - HOOK, FRONT
51961-26130

KCH1#,RCH11,VCH1#

 1
Common parts
90105-12142
90119-08623
90119-08B43
90119-10049
90119-14058
90119-14070
90467-0510122
