KCH16W-PRSQT (1999)
Toyota Granvia/Grand Hiace
Production
Jul 1999
-
May 2002
Engine
1KZTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9907-0205)KCH16..QLTD

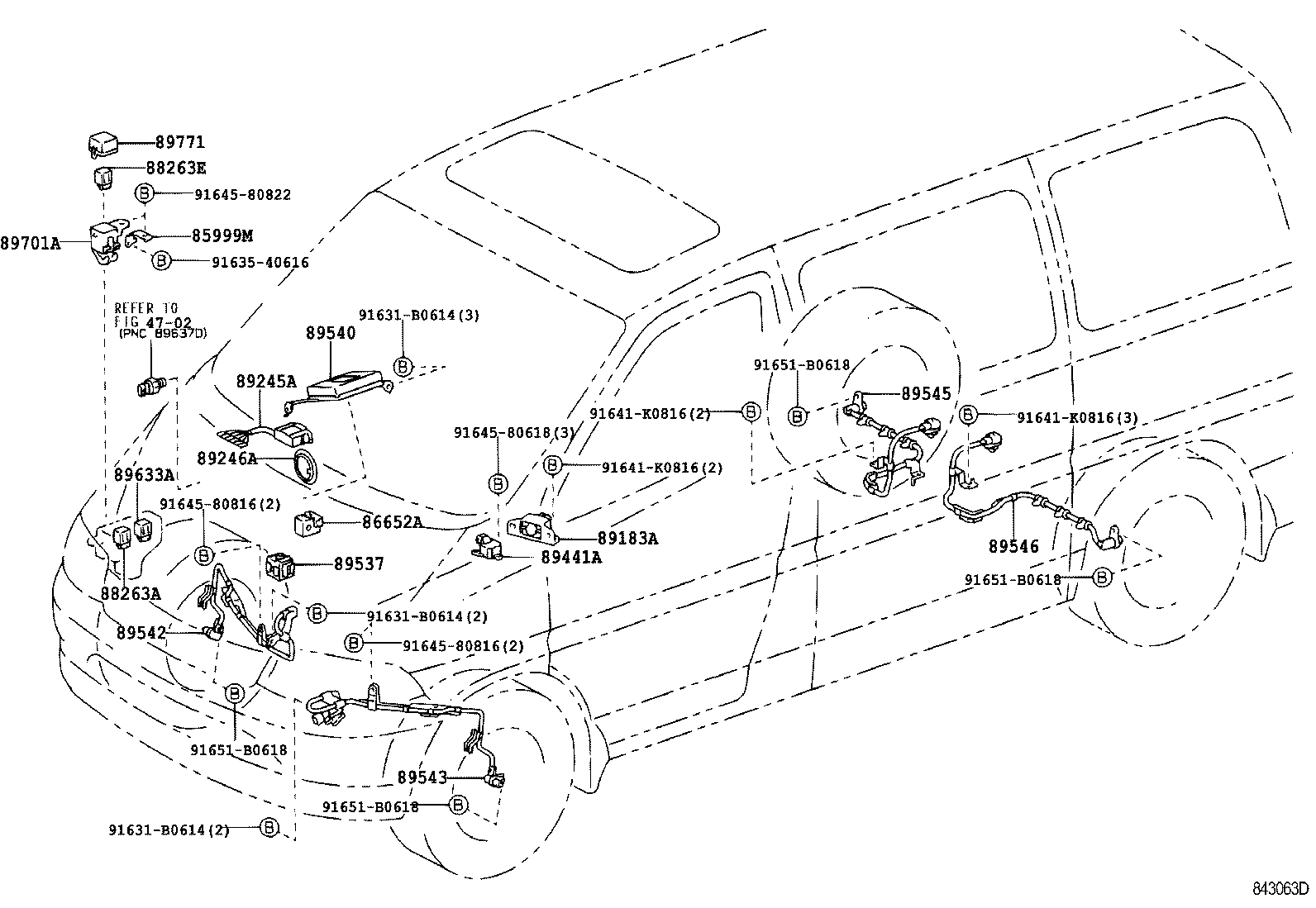

Click highlighted areas on diagram
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-26370 |
KCH1#..QLTD |
1 | ||
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-51010 |
KCH1#..QLTD |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
KCH1#,RCH11 |
1 | ||
| 88263-24020 |
KCH1#..QLTD |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-51010 |
KCH1#..QLTD |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-60010 |
KCH1#..QLTD |
1 | ||
| 89246A - DISC, SENSOR STEERING | ||||
| 89246-50010 |
KCH1#..QLTD |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-30050 |
KCH1#..QLTD |
1 | ||
| 89537 - RELAY, ACTIVE LAMP | ||||
| 89537-41010 |
KCH1#..QLTD |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-26420 |
KCH16..QLTD |
1 | ||
| 89540-26360 |
VCH16;KCH16..G |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-26050 |
KCH16,VCH16,28 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-26030 |
KCH1#,RCH11 |
1 | ||
| 89545-26060 |
KCH1#,VCH1# |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-26030 |
KCH1#,RCH11 |
1 | ||
| 89546-26060 |
KCH1#,VCH1# |
1 | ||
| 89633A - RELAY, TRACTION CONTROL OR VSC | ||||
| 89633-24010 |
KCH1#..QLTD |
1 | ||
| 89701A - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-13010 |
KCH1#..QLTD |
1 | ||
| 89771 - COVER, ABS RELAY BLOCK, UPPER | ||||
| 89771-13010 |
KCH1#..QLTD |
1 | ||
| Common parts | ||||
| 91631-B0614 | ||||
| 91635-40616 | ||||
| 91641-K0816 | ||||
| 91645-80618 | ||||
| 91645-80816 | ||||
| 91645-80822 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 4702 | ||||
