KCH16W-PFSQT (1999)
Toyota Granvia/Grand Hiace

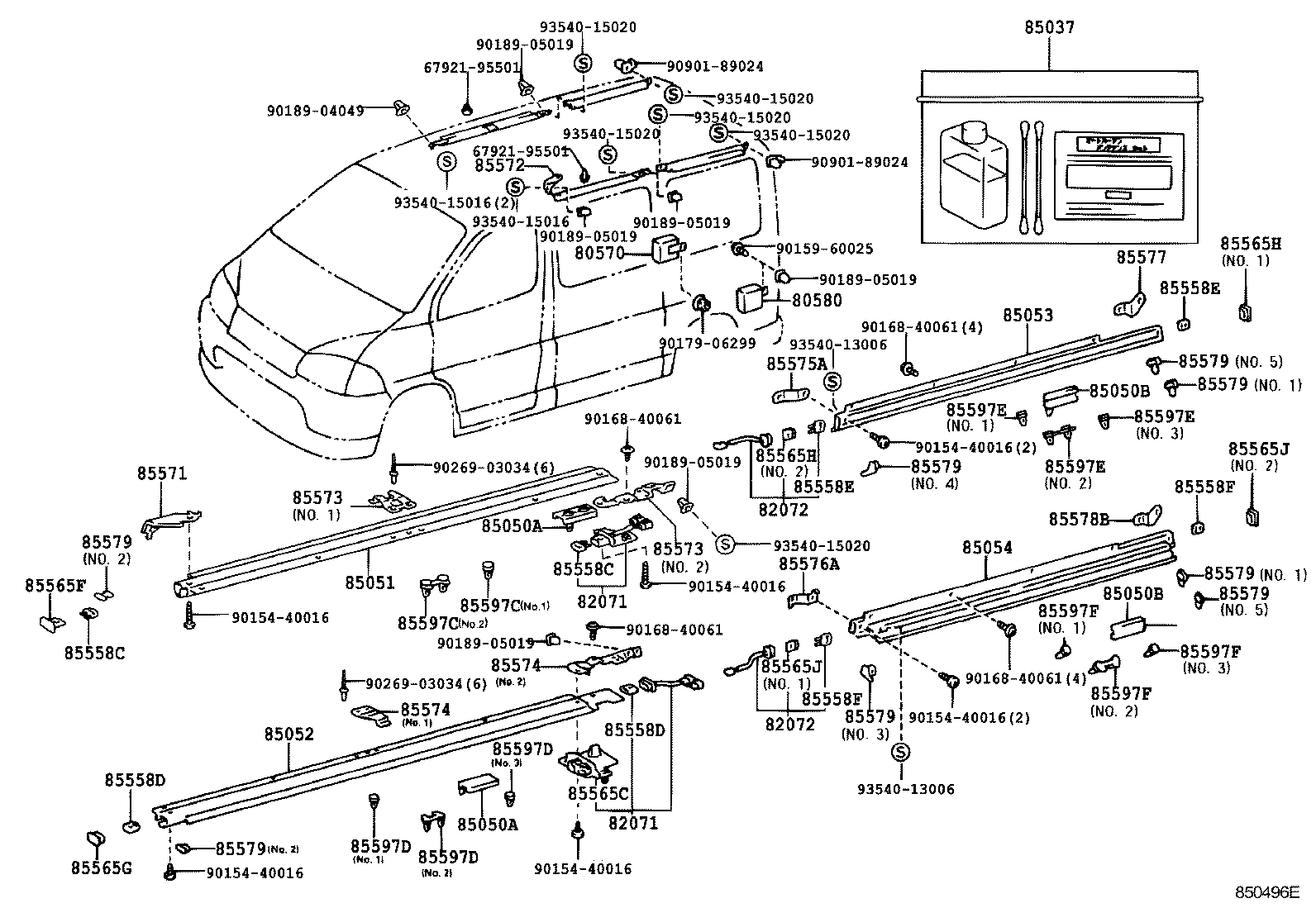

ILLUST NO. 1 OF 2(9508-0205)5D
ｻｲﾄﾞ & ｸｵ-ﾀｳｲﾝﾄﾞｳ ｶ-ﾃﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 80570 - RELAY ASSY, AUTO CURTAIN CONTROL, RH | ||||
| 80570-26020 |
KCH10,16,RCH11 |
1 | ||
| 80570-26040 |
KCH1#,VCH1# |
1 | ||
| 80580 - RELAY ASSY, AUTO CURTAIN CONTROL, LH | ||||
| 80580-26010 |
KCH10,16,RCH11 |
1 | ||
| 80580-26030 |
KCH1#,VCH1# |
1 | ||
| 82071 - WIRE SUB-ASSY, AUTO CURTAIN, NO.1 | ||||
| 82071-26040B1 |
KCH10,16,RCH11..G LT.BLUISH GRAY,TRIM1#,左側 |
1 | ||
| 82071-26060A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0#,右側 |
1 | ||
| 82071-26040B0 |
KCH10,16,RCH11..Q LT. BL. GRAY,TRIM1#,左側 |
1 | ||
| 82071-26040A2 |
KCH1#,VCH1#..G IVORY,TRIM0#,左側 |
1 | ||
| 82071-26040A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0#,左側 |
1 | ||
| 82071-26060A2 |
KCH1#,VCH1#..G..5D IVORY,TRIM0#,右側 |
1 | ||
| 82071 - WIRE SUB-ASSY, AUTO CURTAIN, NO.1 | ||||
| 82071-26040B1 |
KCH10,16,RCH11..G LT.BLUISH GRAY,TRIM1#,左側 |
1 | ||
| 82071-26060A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0#,右側 |
1 | ||
| 82071-26040B0 |
KCH10,16,RCH11..Q LT. BL. GRAY,TRIM1#,左側 |
1 | ||
| 82071-26040A2 |
KCH1#,VCH1#..G IVORY,TRIM0#,左側 |
1 | ||
| 82071-26040A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0#,左側 |
1 | ||
| 82071-26060A2 |
KCH1#,VCH1#..G..5D IVORY,TRIM0#,右側 |
1 | ||
| 82072 - WIRE SUB-ASSY, AUTO CURTAIN, NO.2 | ||||
| 82072-26030 |
KCH10,16,RCH11,VCH1# 左側 |
1 | ||
| 82072-26030 |
KCH1#,VCH1# 左側 |
1 | ||
| 82072-26040 |
KCH1#,VCH1#..5D 右側 |
1 | ||
| 82072 - WIRE SUB-ASSY, AUTO CURTAIN, NO.2 | ||||
| 82072-26030 |
KCH10,16,RCH11,VCH1# 左側 |
1 | ||
| 82072-26030 |
KCH1#,VCH1# 左側 |
1 | ||
| 82072-26040 |
KCH1#,VCH1#..5D 右側 |
1 | ||
| 85037 - PARTS SET, AUTO CURTAIN | ||||
| 85037-28010 |
KCH1#,VCH1# |
1 | ||
| 85050A - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.1 | ||||
| 85050-26030 |
KCH10,16,RCH11,VCH1# 右側 |
1 | ||
| 85050-28030 |
KCH10,16,RCH11,VCH1# 左側 |
1 | ||
| 85050-28040A0 |
KCH1#,VCH1#..5D IVORY,TRIM0#,右側 |
1 | ||
| 85050-28030 |
KCH1#,VCH1# 左側 |
1 | ||
| 85050A - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.1 | ||||
| 85050-26030 |
KCH10,16,RCH11,VCH1# 右側 |
1 | ||
| 85050-28030 |
KCH10,16,RCH11,VCH1# 左側 |
1 | ||
| 85050-28040A0 |
KCH1#,VCH1#..5D IVORY,TRIM0#,右側 |
1 | ||
| 85050-28030 |
KCH1#,VCH1# 左側 |
1 | ||
| 85050B - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.2 | ||||
| 85050-26010 |
KCH1#,VCH1# 左側 |
1 | ||
| 85050-26030 |
KCH10,16,RCH11,VCH1# 右側 |
1 | ||
| 85050-26030 |
KCH1#,VCH1# 右側 |
1 | ||
| 85050-26010 |
KCH10,16,RCH11,VCH1# 左側 |
1 | ||
| 85050B - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.2 | ||||
| 85050-26010 |
KCH1#,VCH1# 左側 |
1 | ||
| 85050-26030 |
KCH10,16,RCH11,VCH1# 右側 |
1 | ||
| 85050-26030 |
KCH1#,VCH1# 右側 |
1 | ||
| 85050-26010 |
KCH10,16,RCH11,VCH1# 左側 |
1 | ||
| 85051 - RAIL SUB-ASSY, AUTO CURTAIN, FRONT RH | ||||
| 85051-26040 |
KCH1#,VCH1#..5D |
1 | ||
| 85052 - RAIL SUB-ASSY, AUTO CURTAIN, FRONT LH | ||||
| 85052-26010 |
KCH1#,VCH1# |
1 | ||
| 85052-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85053 - RAIL SUB-ASSY, AUTO CURTAIN, REAR RH | ||||
| 85053-26020 |
KCH1#,VCH1#..5D |
1 | ||
| 85054 - RAIL SUB-ASSY, AUTO CURTAIN, REAR LH | ||||
| 85054-26010 |
KCH1#,VCH1# |
1 | ||
| 85054-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85558C - STOPPER, AUTO CURTAIN COIL, FRONT NO.1 RH | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1#..5D |
2 | ||
| 85558C - STOPPER, AUTO CURTAIN COIL, FRONT NO.1 RH | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1#..5D |
2 | ||
| 85558D - STOPPER, AUTO CURTAIN COIL, FRONT NO.1 LH | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
2 | ||
| 85558D - STOPPER, AUTO CURTAIN COIL, FRONT NO.1 LH | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
2 | ||
| 85558E - STOPPER, AUTO CURTAIN COIL, FRONT NO.2 RH | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558E - STOPPER, AUTO CURTAIN COIL, FRONT NO.2 RH | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558F - STOPPER, AUTO CURTAIN COIL, FRONT NO.2 LH | ||||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558F - STOPPER, AUTO CURTAIN COIL, FRONT NO.2 LH | ||||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85565C - END, AUTO CURTAIN RAIL, LH | ||||
| 85567-26010B1 |
KCH10,16,RCH11..G LT.BLUISH GRAY,TRIM1# |
1 | ||
| 85567-26010A2 |
KCH1#,VCH1#..G IVORY,TRIM0# |
1 | ||
| 85567-26010B0 |
KCH10,16,RCH11..Q LT. BL. GRAY,TRIM1# |
1 | ||
| 85567-26010A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0# |
1 | ||
| 85565F - END, AUTO CURTAIN RAIL, FRONT, NO.1 RH | ||||
| 85565-26020A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0# |
1 | ||
| 85565-26020A2 |
KCH1#,VCH1#..G..5D IVORY,TRIM0# |
1 | ||
| 85565G - END, AUTO CURTAIN RAIL, FRONT, NO.1 LH | ||||
| 85565-26010B1 |
KCH10,16,RCH11..G LT.BLUISH GRAY,TRIM1# |
1 | ||
| 85565-26010B0 |
KCH10,16,RCH11..Q LT. BL. GRAY,TRIM1# |
1 | ||
| 85565-26010A1 |
KCH1#,VCH1#..QLTD IVORY,TRIM0# |
1 | ||
| 85565-26010A2 |
KCH1#,VCH1#..G IVORY,TRIM0# |
1 | ||
| 85565H - END, AUTO CURTAIN RAIL, FRONT, NO.2 RH | ||||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-26030 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565H - END, AUTO CURTAIN RAIL, FRONT, NO.2 RH | ||||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-26030 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565J - END, AUTO CURTAIN RAIL, FRONT, NO.2 LH | ||||
| 85565-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-95J00 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565J - END, AUTO CURTAIN RAIL, FRONT, NO.2 LH | ||||
| 85565-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-95J00 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85571 - BRACKET, AUTO CURTAIN RAIL, NO.1 RH | ||||
| 85571-26030 |
KCH1#,VCH1#..5D |
1 | ||
| 85572 - BRACKET, AUTO CURTAIN RAIL, NO.1 LH | ||||
| 85572-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85572-26010 |
KCH1#,VCH1# |
1 | ||
| 85573 - BRACKET, AUTO CURTAIN RAIL, NO.2 RH | ||||
| 85574-26020 |
KCH1#,VCH1#..5D NO.1 |
1 | ||
| 85573-26030 |
KCH1#,VCH1#..5D NO.2 |
1 | ||
| 85573 - BRACKET, AUTO CURTAIN RAIL, NO.2 RH | ||||
| 85574-26020 |
KCH1#,VCH1#..5D NO.1 |
1 | ||
| 85573-26030 |
KCH1#,VCH1#..5D NO.2 |
1 | ||
| 85574 - BRACKET, AUTO CURTAIN RAIL, NO.2 LH | ||||
| 85574-26020 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85574-26030 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85574-26030 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85574-26020 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85574 - BRACKET, AUTO CURTAIN RAIL, NO.2 LH | ||||
| 85574-26020 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85574-26030 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85574-26030 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85574-26020 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85575A - BRACKET, AUTO CURTAIN RAIL, NO.3 RH | ||||
| 85575-26020 |
KCH1#,VCH1#..5D |
1 | ||
| 85576A - BRACKET, AUTO CURTAIN RAIL, NO.3 LH | ||||
| 85576-26010 |
KCH1#,VCH1# |
1 | ||
| 85576-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85577 - BRACKET, AUTO CURTAIN RAIL, NO.4 RH | ||||
| 85577-26020 |
KCH1#,VCH1#..5D |
1 | ||
| 85578B - BRACKET, AUTO CURTAIN RAIL, NO.4 LH | ||||
| 85578-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85578-26010 |
KCH1#,VCH1# |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85579 - END, CURTAIN SUB RAIL | ||||
| 85579-95J01 |
KCH10,16,RCH11,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH1#,VCH1#..5D NO.1 |
2 | ||
| 85579-26020 |
KCH1#,VCH1#..5D NO.2 |
2 | ||
| 85579-26070 |
KCH1#,VCH1#..5D NO.4 |
1 | ||
| 85579-26050 |
KCH1#,VCH1# 左側,NO.5 |
1 | ||
| 85579-26080 |
KCH1#,VCH1# NO.3 |
1 | ||
| 85579-26010 |
KCH10,16,RCH11 NO.1 |
6 | ||
| 85579-26060 |
KCH1#,VCH1#..5D 右側,NO.5 |
1 | ||
| 85597C - RUNNER, AUTO CURTAIN, FRONT NO.1 RH | ||||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
17 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
18 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1#..5D NO.1 |
11 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597C - RUNNER, AUTO CURTAIN, FRONT NO.1 RH | ||||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
17 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
18 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1#..5D NO.1 |
11 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597D - RUNNER, AUTO CURTAIN, FRONT NO.1 LH | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
18 | ||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
18 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
11 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597D - RUNNER, AUTO CURTAIN, FRONT NO.1 LH | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
18 | ||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
18 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
11 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597D - RUNNER, AUTO CURTAIN, FRONT NO.1 LH | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
18 | ||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
18 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
11 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597E - RUNNER, AUTO CURTAIN, FRONT NO.2 RH | ||||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
10 | ||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
13 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
13 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597E - RUNNER, AUTO CURTAIN, FRONT NO.2 RH | ||||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
10 | ||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
13 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
13 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597E - RUNNER, AUTO CURTAIN, FRONT NO.2 RH | ||||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
10 | ||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
13 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
13 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597F - RUNNER, AUTO CURTAIN, FRONT NO.2 LH | ||||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
13 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
13 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
10 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597F - RUNNER, AUTO CURTAIN, FRONT NO.2 LH | ||||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
13 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
13 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
10 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85597F - RUNNER, AUTO CURTAIN, FRONT NO.2 LH | ||||
| 85597-95J0208 |
KCH10,16,RCH11 IVORY,TRIM1#,NO.3 |
13 | ||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
13 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
10 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| Common parts | ||||
| 67921-95501 | ||||
| 90154-40016 | ||||
| 90159-60025 | ||||
| 90168-40061 | ||||
| 90179-06299 | ||||
| 90189-04049 | ||||
| 90189-05019 | ||||
| 90269-03034 | ||||
| 90901-89024 | ||||
| 93540-13006 | ||||
| 93540-15016 | ||||
| 93540-15020 | ||||
ILLUST NO. 2 OF 2(9508-0205)
ﾊﾞﾂｸｳｲﾝﾄﾞｳ ｶ-ﾃﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65931B - COVER, CURTAIN RAIL, NO.1 | ||||
| 65931-28050A0 |
KCH1#,VCH1# IVORY,TRIM0# |
1 | ||
| 65931-28050B2 |
KCH10,16,RCH11 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 65931C - COVER, CURTAIN RAIL, NO.2 | ||||
| 65931-26060A0 |
KCH1#,VCH1# IVORY,TRIM0# |
2 | ||
| 65931-26010B1 |
KCH10,16,RCH11 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 65931C - COVER, CURTAIN RAIL, NO.2 | ||||
| 65931-26060A0 |
KCH1#,VCH1# IVORY,TRIM0# |
2 | ||
| 65931-26010B1 |
KCH10,16,RCH11 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 65931F - COVER, CURTAIN RAIL, NO.3 | ||||
| 65931-26020E0 |
KCH1#,VCH1# SANDAL WOOD,TRIM0# |
1 | ||
| 65931-26020B0 |
KCH10,16,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 65931G - COVER, CURTAIN RAIL, NO.4 | ||||
| 65931-26080B0 |
KCH10,16,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 65931-26080E0 |
KCH1#,VCH1# SANDAL WOOD,TRIM0# |
1 | ||
| 65931H - COVER, CURTAIN RAIL, NO.5 | ||||
| 65931-26090B0 |
KCH10,16,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 65931-26090E0 |
KCH1#,VCH1# SANDAL WOOD,TRIM0# |
1 | ||
| 82073 - WIRE SUB-ASSY, AUTO CURTAIN, NO.3 | ||||
| 82073-26020B0 |
KCH10,16,RCH11 BLUISH GRAY,TRIM1#,下側 |
1 | ||
| 82073-26010 |
KCH10,16,RCH11,VCH1# 上側 |
1 | ||
| 82073-26060 |
KCH1#,VCH1# 上側 |
1 | ||
| 82073-26020E0 |
KCH1#,VCH1# SANDAL WOOD,TRIM0#,下側 |
1 | ||
| 82073-26010 |
KCH1#,VCH1# 上側 |
1 | ||
| 82073 - WIRE SUB-ASSY, AUTO CURTAIN, NO.3 | ||||
| 82073-26020B0 |
KCH10,16,RCH11 BLUISH GRAY,TRIM1#,下側 |
1 | ||
| 82073-26010 |
KCH10,16,RCH11,VCH1# 上側 |
1 | ||
| 82073-26060 |
KCH1#,VCH1# 上側 |
1 | ||
| 82073-26020E0 |
KCH1#,VCH1# SANDAL WOOD,TRIM0#,下側 |
1 | ||
| 82073-26010 |
KCH1#,VCH1# 上側 |
1 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-28030 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85050-28030 |
KCH1#,VCH1# |
2 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-28030 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85050-28030 |
KCH1#,VCH1# |
2 | ||
| 85050D - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.2 | ||||
| 85050-28040A0 |
KCH1#,VCH1# IVORY,TRIM0# |
2 | ||
| 85050-28040A0 |
KCH10,16,RCH11,VCH1# IVORY,TRIM1# |
2 | ||
| 85050D - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.2 | ||||
| 85050-28040A0 |
KCH1#,VCH1# IVORY,TRIM0# |
2 | ||
| 85050-28040A0 |
KCH10,16,RCH11,VCH1# IVORY,TRIM1# |
2 | ||
| 85055 - RAIL SUB-ASSY, AUTO CURTAIN BACK, UPPER | ||||
| 85055-26040 |
KCH1#,VCH1#..QLTD |
1 | ||
| 85055-26020 |
KCH10,16,RCH11 |
1 | ||
| 85055-26020 |
KCH1#,VCH1#..G |
1 | ||
| 85056 - RAIL SUB-ASSY, AUTO CURTAIN BACK, LOWER | ||||
| 85056-26030 |
KCH1#,VCH1#..QLTD |
1 | ||
| 85056-26010 |
KCH10,16,RCH11 |
1 | ||
| 85056-26010 |
KCH1#,VCH1#..G |
1 | ||
| 85558A - STOPPER, AUTO CURTAIN COIL, REAR UPPER | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558A - STOPPER, AUTO CURTAIN COIL, REAR UPPER | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558B - STOPPER, AUTO CURTAIN COIL, REAR LOWER | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85558B - STOPPER, AUTO CURTAIN COIL, REAR LOWER | ||||
| 85558-95J00 |
KCH10,16,RCH11,VCH1# |
2 | ||
| 85558-95J00 |
KCH1#,VCH1# |
1 | ||
| 85565D - END, AUTO CURTAIN RAIL, BACK, UPPER | ||||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-95J00 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565D - END, AUTO CURTAIN RAIL, BACK, UPPER | ||||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-95J00 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565E - END, AUTO CURTAIN RAIL, BACK, LOWER | ||||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-95J00 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85565E - END, AUTO CURTAIN RAIL, BACK, LOWER | ||||
| 85565-95J00 |
KCH10,16,RCH11,VCH1# NO.1 |
1 | ||
| 85565-95J00 |
KCH1#,VCH1# NO.1 |
1 | ||
| 85565-95J01 |
KCH10,16,RCH11,VCH1# NO.2 |
1 | ||
| 85565-26040 |
KCH1#,VCH1# NO.2 |
1 | ||
| 85581 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER RH | ||||
| 85581-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85581-26010 |
KCH1#,VCH1# |
1 | ||
| 85582 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER LH | ||||
| 85582-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85582-26010 |
KCH1#,VCH1# |
1 | ||
| 85583 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER RH | ||||
| 85583-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85583-26010 |
KCH1#,VCH1# |
1 | ||
| 85584 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER LH | ||||
| 85584-26010 |
KCH1#,VCH1# |
1 | ||
| 85584-26010 |
KCH10,16,RCH11,VCH1# |
1 | ||
| 85585A - BRACKET, AUTO CURTAIN RAIL, BACK, UPPER CENTER | ||||
| 85585-26020A0 |
KCH1#,VCH1# IVORY,TRIM0# |
1 | ||
| 85585-26020B0 |
KCH10,16,RCH11 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 85586 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER | ||||
| 85586-26020B0 |
KCH10,16,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 85586-26020E0 |
KCH1#,VCH1# SANDAL WOOD,TRIM0# |
1 | ||
| 85597A - RUNNER, AUTO CURTAIN, REAR UPPER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
12 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
12 | ||
| 85597A - RUNNER, AUTO CURTAIN, REAR UPPER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
12 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
12 | ||
| 85597A - RUNNER, AUTO CURTAIN, REAR UPPER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
12 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
12 | ||
| 85597A - RUNNER, AUTO CURTAIN, REAR UPPER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
12 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
12 | ||
| 85597B - RUNNER, AUTO CURTAIN, REAR LOWER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
14 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
14 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597B - RUNNER, AUTO CURTAIN, REAR LOWER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
14 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
14 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597B - RUNNER, AUTO CURTAIN, REAR LOWER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
14 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
14 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| 85597B - RUNNER, AUTO CURTAIN, REAR LOWER | ||||
| 85597-26030 |
KCH10,16,RCH11 NO.1 |
14 | ||
| 85597-26040 |
KCH1#,VCH1# NO.2 |
2 | ||
| 85597-26031 |
KCH1#,VCH1# NO.1 |
14 | ||
| 85597-26040 |
KCH10,16,RCH11,VCH1# NO.2 |
2 | ||
| Common parts | ||||
| 90154-40016 | ||||
| 90189-05019 | ||||
| 93540-15020 | ||||
| 93540-55020 | ||||
| 94170-60450 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
