KCH16W-PFSQT (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0205)KCH16..QLTD

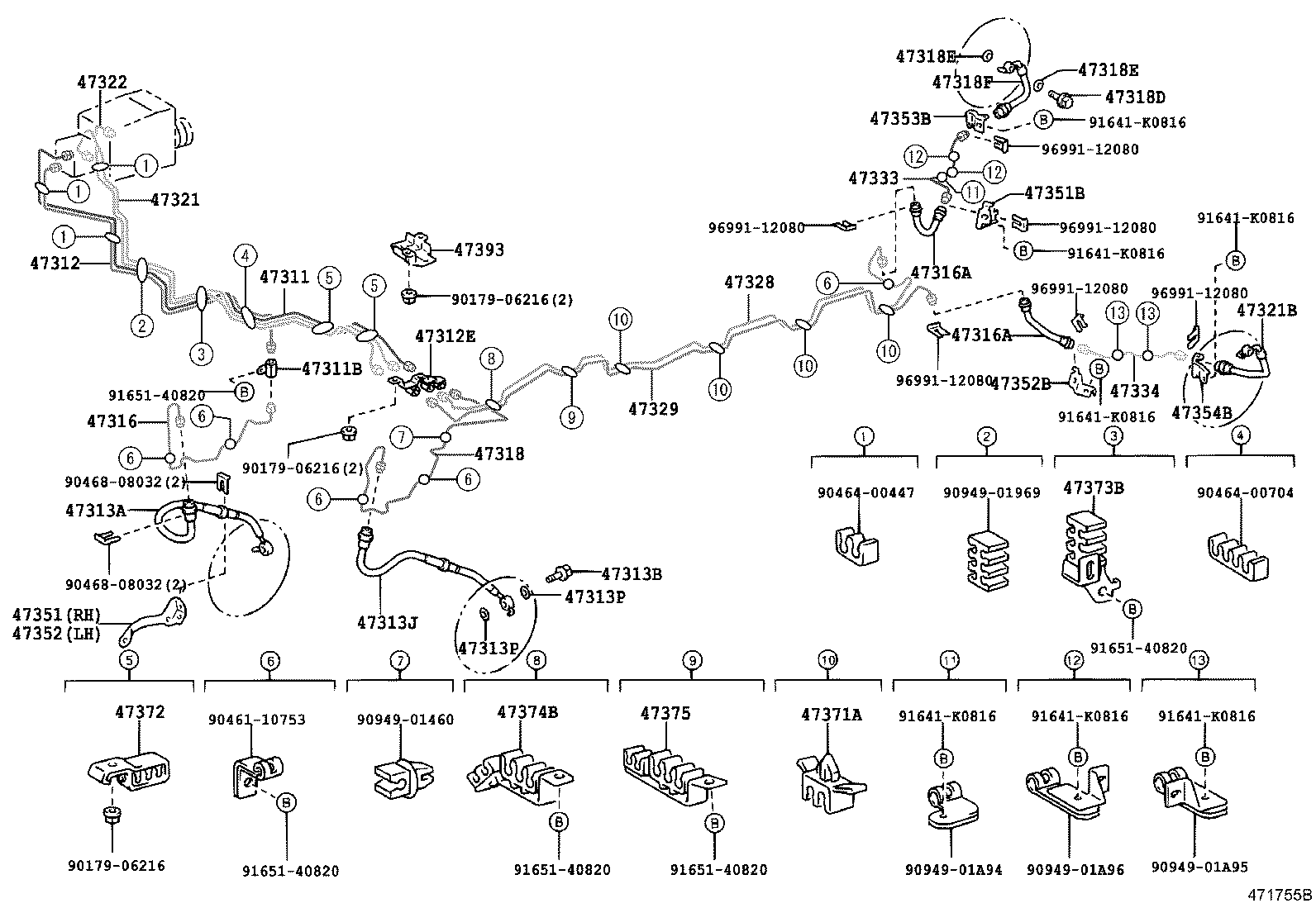

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313A 47313B 47313J 47313P 47313P 47316 47316A 47316A 47318 47318D 47318E 47318E 47318F 47321 47321B 47322 47328 47329 47333 47334 47351 47351B 47352 47352B 47353B 47354B 47371A 47372 47373B 47374B 47375 47393 9017906216 9017906216 9017906216 9046110753 9046400447 9046400704 9046808032 9046808032 9094901460 9094901969 9094901A94 9094901A95 9094901A96 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 9165140820 9165140820 9165140820 9165140820 9165140820 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26470

KCH10,16

 1
47311-26650

KCH1#..QLTD

 1
47311-26731

KCH1#..G

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10165

KCH10,16,RCH11,VCH1#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47322-26230

KCH10,16

 1
47312-26320

KCH1#..QLTD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12059

KCH1#..QLTD

 1
90904-13024

KCH1#,RCH11

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C01

KCH16..QLTD

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KCH1#,RCH11,VCH1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02C01

KCH16..QLTD

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH1#,RCH11,VCH1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH1#,RCH11,VCH1#

 4
47316 - TUBE, FRONT BRAKE, NO.6
47316-26290

KCH16,VCH16,28

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C08

KCH1#..QLTD

 2
90947-02828

KCH1#,RCH11

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C08

KCH1#..QLTD

 2
90947-02828

KCH1#,RCH11

 2
47318 - TUBE, FRONT BRAKE, NO.8
47318-26110

KCH16,VCH16,28

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

KCH1#,VCH1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH1#,VCH1#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH1#,VCH1#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02C09

KCH1#..QLTD

 1
90947-02C13

VCH1#;KCH1#..G

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26480

KCH1#..QLTD

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C10

KCH1#..QLTD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26331

KCH1#..G

 1
47322-26270

KCH1#..QLTD

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26091

KCH16..QLTD

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-26170

KCH16..G

 1
47329-26271

KCH16..QLTD

 1
47333 - TUBE, REAR BRAKE, NO.12
47333-26040

KCH1#,VCH1#

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-26050

KCH1#,VCH1#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26150

KCH1#,RCH11,VCH1#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-26140

KCH1#,RCH11,VCH1#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-26180

KCH1#,VCH1#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-26160

KCH1#,VCH1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90469-05013

KCH1#,VCH1#

 4
47372 - CLAMP, BRAKE TUBE, NO.2
47371-26050

VCH1#;KCH1#,VCH2#..DX,G

 1
47371-26060

KCH1#..QLTD

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47371-26050

VCH1#;KCH1#,VCH2#..DX,G

 2
47371-26160

KCH1#..QLTD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-26140

KCH12,16

 1
47371-26140

KCH1#,VCH1#,2#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-26150

KCH1#,VCH1#,2#

 1
47371-26150

KCH12,16

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-26040

KCH1#

 1
47393-26020

KCH1#

 1
Common parts
90179-06216
90461-10753
90464-00447
90464-00704
90468-08032
90949-01460
90949-01969
90949-01A94
90949-01A95
90949-01A96
91641-K0816
91651-40820
96991-12080

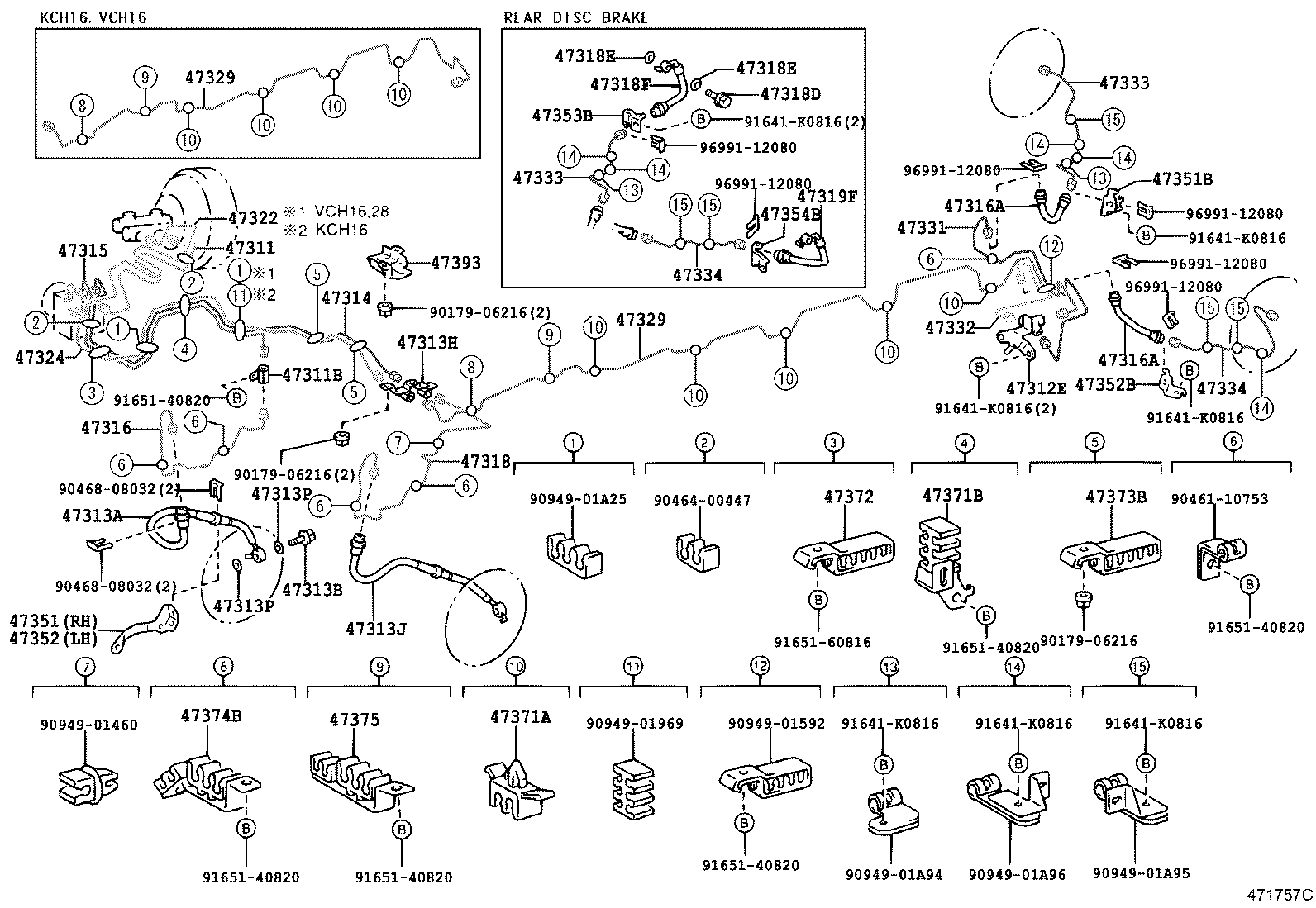

ILLUST NO. 1 OF 2(9907-0205)VCH16 ; (9907-0205)KCH16,VCH28..DX,G

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47311 47311B 47312E 47313A 47313B 47313H 47313J 47313P 47313P 47314 47315 47316 47316A 47316A 47318 47318D 47318E 47318E 47318F 47319F 47322 47324 47329 47329 47331 47332 47333 47333 47334 47334 47351 47351B 47352 47352B 47353B 47354B 47371A 47371B 47372 47373B 47374B 47375 47393 9017906216 9017906216 9017906216 9046110753 9046400447 9046808032 9046808032 9094901460 9094901592 9094901969 9094901A25 9094901A94 9094901A95 9094901A96 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165160816 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26470

KCH10,16

 1
47311-26650

KCH1#..QLTD

 1
47311-26731

KCH1#..G

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10165

KCH10,16,RCH11,VCH1#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12059

KCH1#..QLTD

 1
90904-13024

KCH1#,RCH11

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C01

KCH16..QLTD

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

KCH1#,RCH11,VCH1#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12052

KCH1#..G

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02C01

KCH16..QLTD

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH1#,RCH11,VCH1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

KCH1#,RCH11,VCH1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26240

KCH10,16,RCH11

 1
47314-26270

VCH1#;KCH1#,VCH2#..DX,G

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26190

VCH1#;KCH1#,VCH2#..DX,G

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26290

KCH16,VCH16,28

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C08

KCH1#..QLTD

 2
90947-02828

KCH1#,RCH11

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C08

KCH1#..QLTD

 2
90947-02828

KCH1#,RCH11

 2
47318 - TUBE, FRONT BRAKE, NO.8
47318-26110

KCH16,VCH16,28

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

KCH1#,VCH1#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH1#,VCH1#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

KCH1#,VCH1#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02C09

KCH1#..QLTD

 1
90947-02C13

VCH1#;KCH1#..G

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02C14

VCH1#;KCH1#..G

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26331

KCH1#..G

 1
47322-26270

KCH1#..QLTD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26421

KCH1#..G

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-26170

KCH16..G

 1
47329-26271

KCH16..QLTD

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-26170

KCH16..G

 1
47329-26271

KCH16..QLTD

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26110

VCH1#;KCH1#,VCH2#..DX,G

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26060

VCH1#;KCH1#,VCH2#..DX,G

 1
47333 - TUBE, REAR BRAKE, NO.12
47333-26040

KCH1#,VCH1#

 1
47333 - TUBE, REAR BRAKE, NO.12
47333-26040

KCH1#,VCH1#

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-26050

KCH1#,VCH1#

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-26050

KCH1#,VCH1#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26150

KCH1#,RCH11,VCH1#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-26140

KCH1#,RCH11,VCH1#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-26180

KCH1#,VCH1#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-26160

KCH1#,VCH1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90469-05013

KCH1#,VCH1#

 4
47371B - CLAMP, BRAKE TUBE, NO.6
47371-26160

VCH1#;KCH1#,VCH2#..DX,G

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-26050

VCH1#;KCH1#,VCH2#..DX,G

 1
47371-26060

KCH1#..QLTD

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47371-26050

VCH1#;KCH1#,VCH2#..DX,G

 2
47371-26160

KCH1#..QLTD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-26140

KCH12,16

 1
47371-26140

KCH1#,VCH1#,2#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-26150

KCH1#,VCH1#,2#

 1
47371-26150

KCH12,16

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-26040

KCH1#

 1
47393-26020

KCH1#

 1
Common parts
90179-06216
90461-10753
90464-00447
90468-08032
90949-01460
90949-01592
90949-01969
90949-01A25
90949-01A94
90949-01A95
90949-01A96
91641-K0816
91651-40820
91651-60816
96991-12080
