KCH16W-PFSQT (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

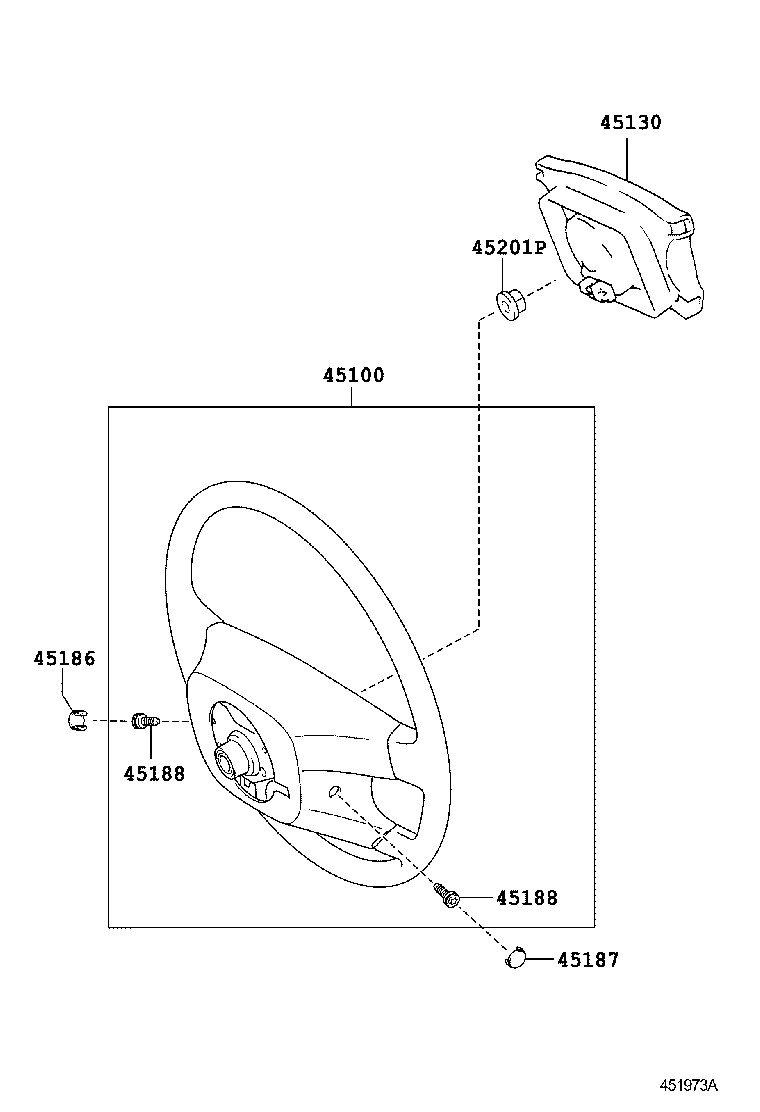

Click highlighted areas on diagram

4-SPOKE,ｱﾘ(*80)

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26210B0

KCH10,16,RCH11

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26330E1

KCH1#,VCH1#

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｱﾘ(*80),SANDAL WOOD,TRIM0#

 1
45100-26330E2

KCH1#,VCH1#

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,REDDISH BROWN,TRIM0#

 1
45100-26330E3

KCH1#,VCH1#..G..5D

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z),SANDAL WOOD,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-26250B0

KCH10,16,RCH11

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050E3

KCH1#,VCH1#

SANDAL WOOD,TRIM0#

 1
45186-26010B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
45186-33050E3

KCH1#,VCH1#

SANDAL WOOD,TRIM0#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60031

KCH1#,VCH1#,2#

長さ=18

 2
90148-60011

KCH10,16,RCH11

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60031

KCH1#,VCH1#,2#

長さ=18

 2
90148-60011

KCH10,16,RCH11

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KCH1#,RCH11,VCH1#

 1
