KCH16W-GRSGT (1995)

Toyota Granvia/Grand Hiace

Production Oct 1995 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

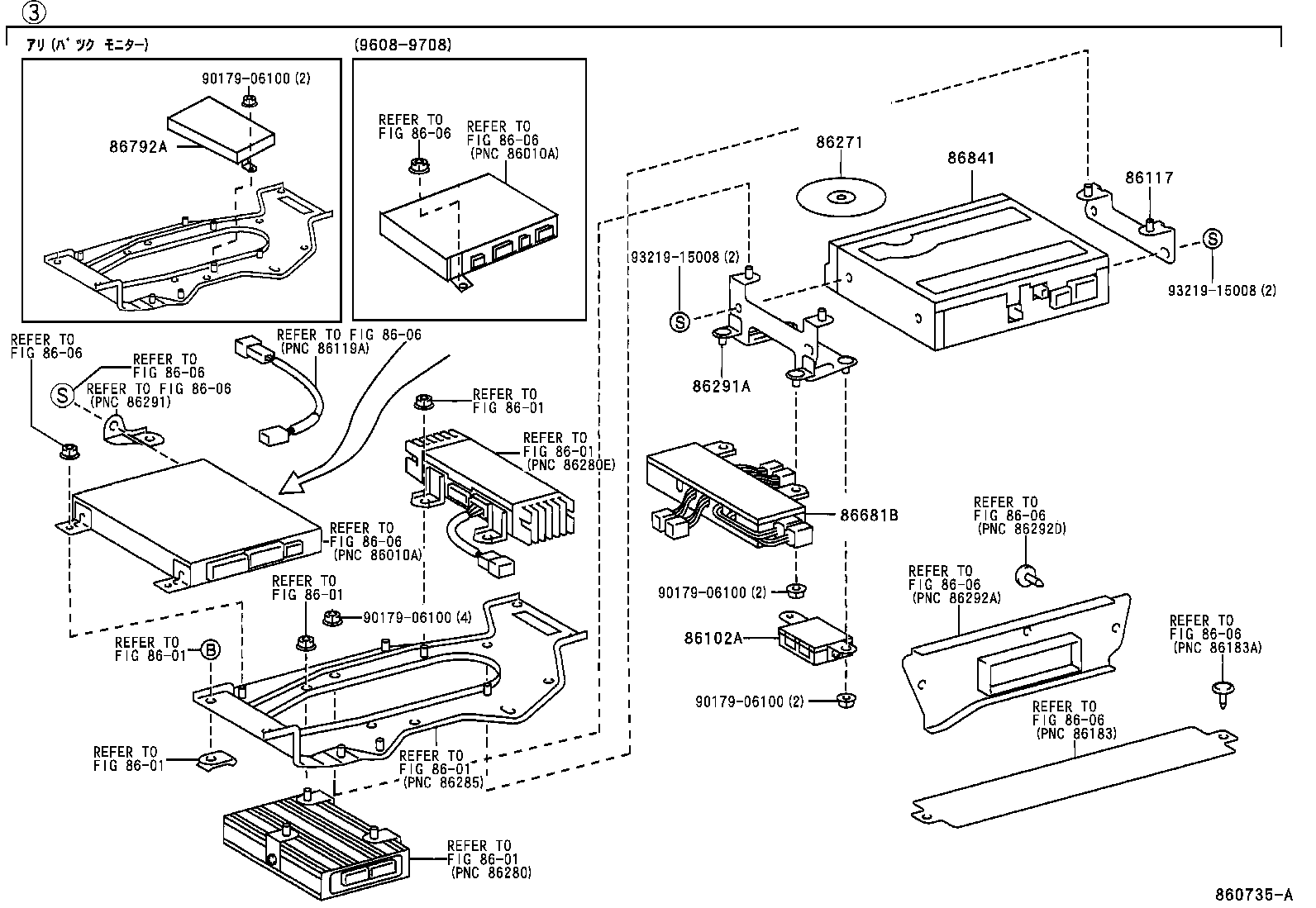

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8606 8606 8606 8606 8606 8606 8606 8606 8606 8606 8606 86102A 86117 86271 86291A 86681B 86792A 86841 9017906100 9017906100 9017906100 9017906100 9321915008 9321915008
Part # Description Qty Price
86102A - SELECTOR SUB-ASSY, ANTENNA
86102-26030

KCH1#,VCH1#

 1
86102-26020

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86102-26010

KCH10,16,RCH11,VCH1#

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-26050

KCH10,16,RCH11,VCH1#

 1
86117-26040

KCH10,16,RCH11

 1
86117-26060

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86117-26080

KCH1#,VCH1#

 1
86117-26070

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86271 - DISC, DISC PLAYER
86271-33011

KCH1#,RCH11,VCH1#

 1
86271-33020

KCH1#,VCH1#

 1
86271-33010

KCH10,16,RCH11,VCH1#

 1
86271-24100

KCH10,16,RCH11

 1
86271-44020

KCH1#,VCH1#

 1
86291A - BRACKET, TELEVISION
86291-26130

KCH10,16,RCH11,VCH1#

 1
86291-26140

KCH1#,VCH1#

 1
86681B - DIVIDER, ANTENNA
86681-26020

KCH10,16,RCH11

 1
86681-26030

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86681-26030

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86681-26040

KCH1#,VCH1#

 1
86681-26040

KCH1#,RCH11,VCH1#

 1
86792A - CONTROLLER, TELEVISION CAMERA
86792-26020

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86792-26010

KCH1#,RCH11,VCH1#

 1
86841 - COMPUTER, NAVIGATION
86841-24010

KCH10,16,RCH11

 1
86841-33040

KCH1#,VCH1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86841-33040

 1
86841-47010

KCH1#,VCH1#

 1
86841-33010

KCH10,16,RCH11

 1
86841-33011

KCH10,16,RCH11

 1
86841-33013

KCH1#,RCH11,VCH1#

 1
86841-33012

KCH1#,RCH11,VCH1#

 1
86841-33041

KCH1#,VCH1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86841-33041

 1
Common parts
90179-06100
93219-15008
Linked diagrams
8601
8606

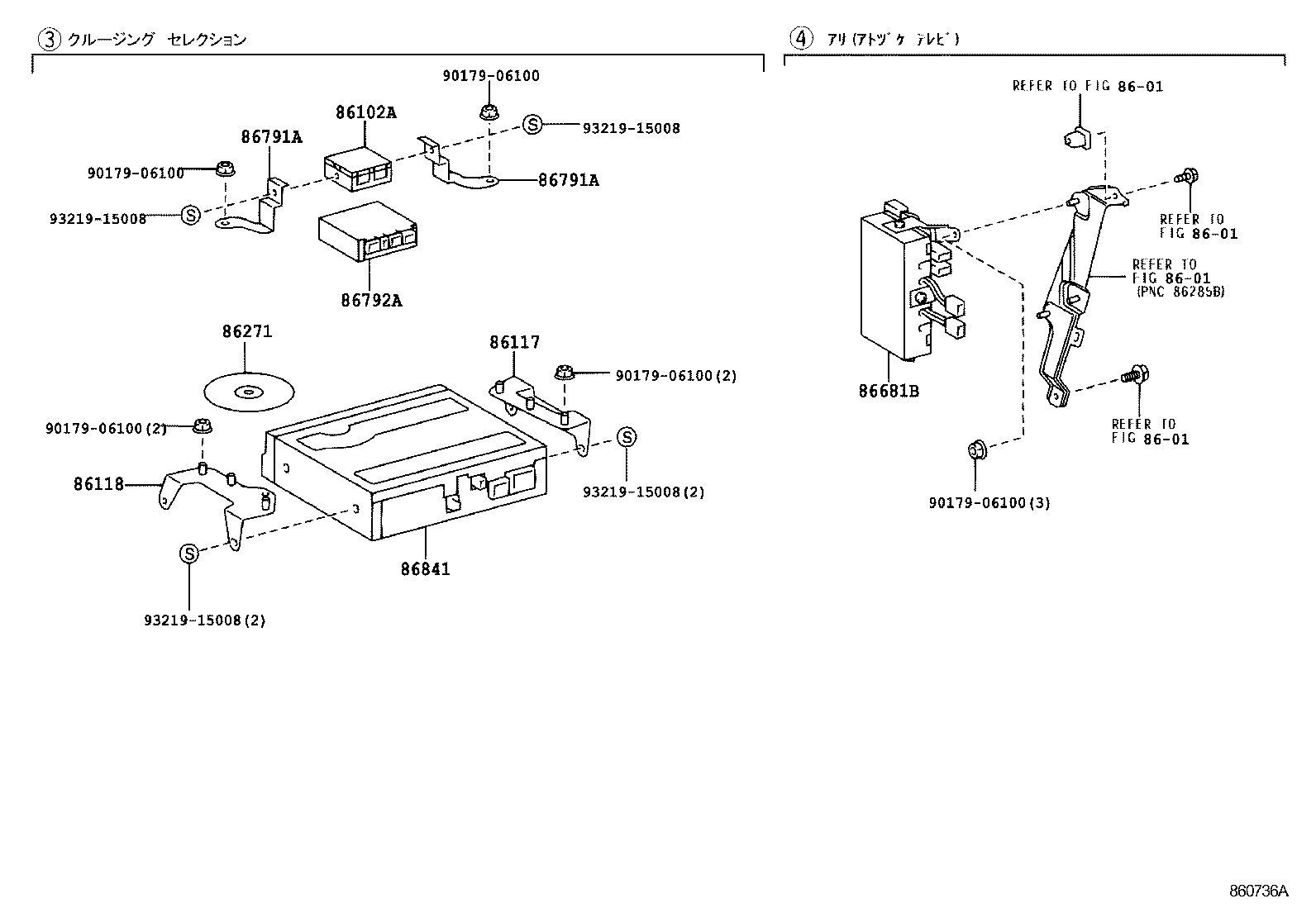

ILLUST NO. 2 OF 2(9608-9907)

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86102A 86117 86118 86271 86681B 86791A 86791A 86792A 86841 9017906100 9017906100 9017906100 9017906100 9017906100 9321915008 9321915008 9321915008 9321915008
Part # Description Qty Price
86102A - SELECTOR SUB-ASSY, ANTENNA
86102-26030

KCH1#,VCH1#

 1
86102-26020

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86102-26010

KCH10,16,RCH11,VCH1#

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-26050

KCH10,16,RCH11,VCH1#

 1
86117-26040

KCH10,16,RCH11

 1
86117-26060

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86117-26080

KCH1#,VCH1#

 1
86117-26070

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-26040

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86118-26030

KCH10,16,RCH11

 1
86118-26050

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86271 - DISC, DISC PLAYER
86271-33011

KCH1#,RCH11,VCH1#

 1
86271-33020

KCH1#,VCH1#

 1
86271-33010

KCH10,16,RCH11,VCH1#

 1
86271-24100

KCH10,16,RCH11

 1
86271-44020

KCH1#,VCH1#

 1
86681B - DIVIDER, ANTENNA
86681-26020

KCH10,16,RCH11

 1
86681-26030

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86681-26030

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86681-26040

KCH1#,VCH1#

 1
86681-26040

KCH1#,RCH11,VCH1#

 1
86791A - BRACKET, SELECTOR SUB-ASSY ANTENA
86791-26010

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 2
86791A - BRACKET, SELECTOR SUB-ASSY ANTENA
86791-26010

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 2
86792A - CONTROLLER, TELEVISION CAMERA
86792-26020

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86792-26010

KCH1#,RCH11,VCH1#

 1
86841 - COMPUTER, NAVIGATION
86841-24010

KCH10,16,RCH11

 1
86841-33040

KCH1#,VCH1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86841-33040

 1
86841-47010

KCH1#,VCH1#

 1
86841-33010

KCH10,16,RCH11

 1
86841-33011

KCH10,16,RCH11

 1
86841-33013

KCH1#,RCH11,VCH1#

 1
86841-33012

KCH1#,RCH11,VCH1#

 1
86841-33041

KCH1#,VCH1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86841-33041

 1
Common parts
90179-06100
93219-15008
Linked diagrams
8601

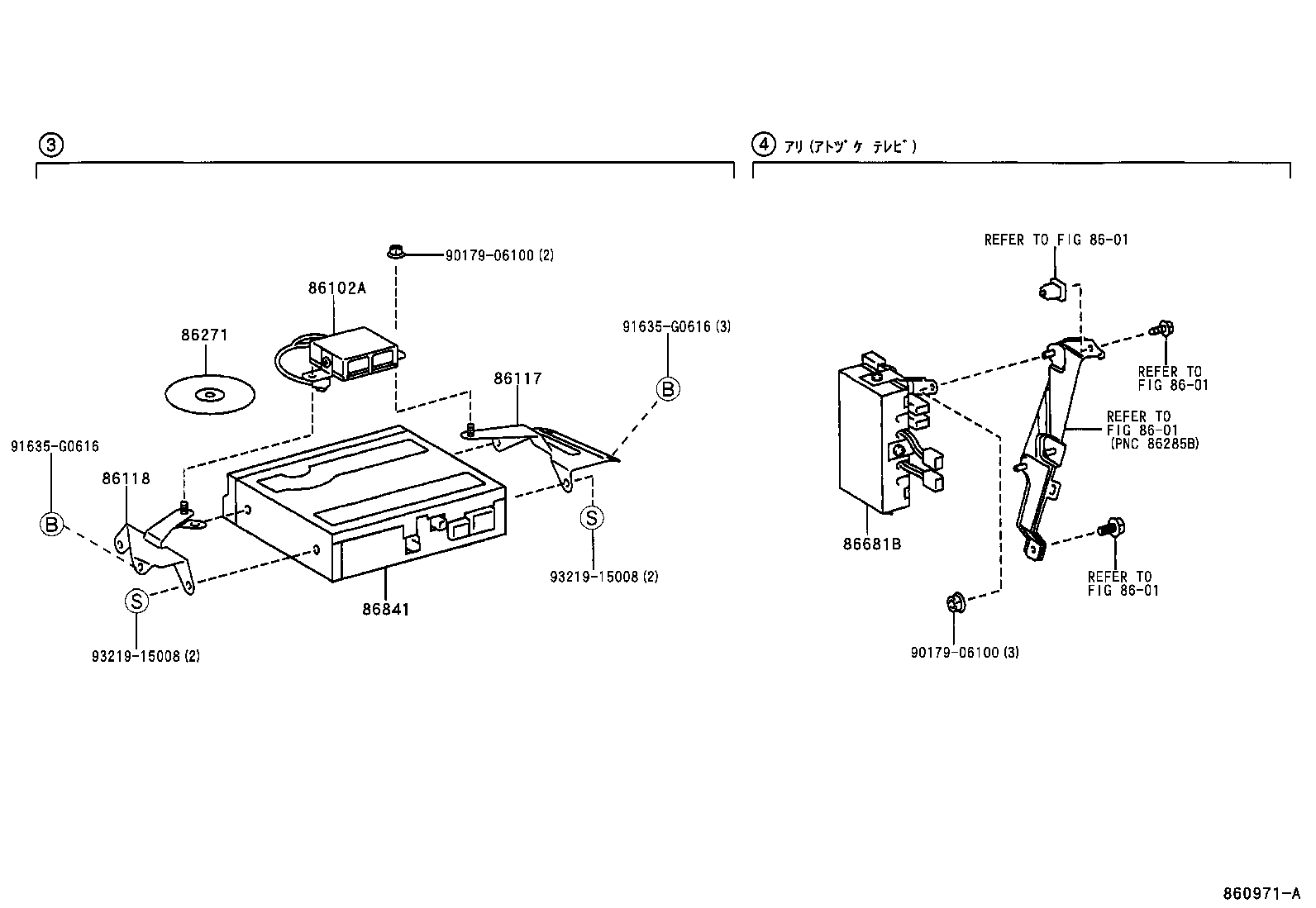

ILLUST NO. 2 OF 2(9907- )DX,QLTD ; (9907- )KCH1#,VCH1#..4D

Click highlighted areas on diagram

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

diagram 8601 8601 8601 8601 86102A 86117 86118 86271 86681B 86841 9017906100 9017906100 91635G0616 91635G0616 9321915008 9321915008
Part # Description Qty Price
86102A - SELECTOR SUB-ASSY, ANTENNA
86102-26030

KCH1#,VCH1#

 1
86102-26020

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86102-26010

KCH10,16,RCH11,VCH1#

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-26050

KCH10,16,RCH11,VCH1#

 1
86117-26040

KCH10,16,RCH11

 1
86117-26060

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86117-26080

KCH1#,VCH1#

 1
86117-26070

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-26040

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86118-26030

KCH10,16,RCH11

 1
86118-26050

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86271 - DISC, DISC PLAYER
86271-33011

KCH1#,RCH11,VCH1#

 1
86271-33020

KCH1#,VCH1#

 1
86271-33010

KCH10,16,RCH11,VCH1#

 1
86271-24100

KCH10,16,RCH11

 1
86271-44020

KCH1#,VCH1#

 1
86681B - DIVIDER, ANTENNA
86681-26020

KCH10,16,RCH11

 1
86681-26030

KCH1#,VCH1#..4D

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86681-26030

KCH1#,RCH11,VCH1#..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

 1
86681-26040

KCH1#,VCH1#

 1
86681-26040

KCH1#,RCH11,VCH1#

 1
86841 - COMPUTER, NAVIGATION
86841-24010

KCH10,16,RCH11

 1
86841-33040

KCH1#,VCH1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86841-33040

 1
86841-47010

KCH1#,VCH1#

 1
86841-33010

KCH10,16,RCH11

 1
86841-33011

KCH10,16,RCH11

 1
86841-33013

KCH1#,RCH11,VCH1#

 1
86841-33012

KCH1#,RCH11,VCH1#

 1
86841-33041

KCH1#,VCH1#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86841-33041

 1
Common parts
90179-06100
91635-G0616
93219-15008
Linked diagrams
8601
