KCH16W-GFSQT (1995)
Toyota Granvia/Grand Hiace
Production
Oct 1995
-
Jul 1999
Engine
1KZTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9510- )KCH16,VCH16,28

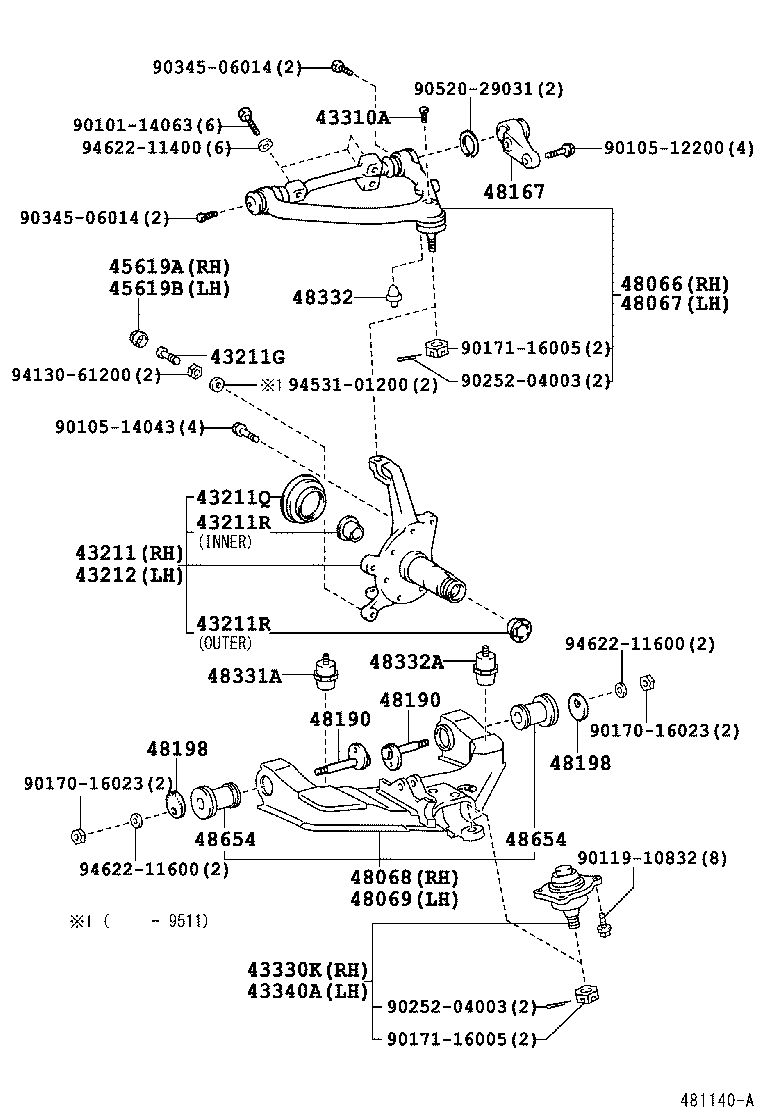

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-26020 |
KCH16,VCH16 |
1 | ||
| 43211G - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER) | ||||
| 90106-12012 |
KCH1#,RCH11,VCH1# |
2 | ||
| 90106-12012 |
KCH16 |
2 | ||
| 43211Q - SEAL, OIL (FOR STEERING KNUCKLE) | ||||
| 90316-60002 |
KCH16,VCH16 |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-30006 |
KCH16,VCH16 内側 |
2 | ||
| 90381-30003 |
KCH16,VCH16 外側 |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-30006 |
KCH16,VCH16 内側 |
2 | ||
| 90381-30003 |
KCH16,VCH16 外側 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-26020 |
KCH16,VCH16 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
KCH16,VCH16 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-29305 |
KCH16,VCH16 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-29305 |
KCH16,VCH16 |
1 | ||
| 45619A - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-26020 |
KCH1#,RCH11,VCH1# |
1 | ||
| 45619B - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-26020 |
KCH1#,RCH11,VCH1# |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29105 |
KCH16,VCH16 |
1 | ||
| 48066-29035 |
KCH16 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29035 |
KCH16 |
1 | ||
| 48067-29105 |
KCH16,VCH16 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26110 |
KCH16,VCH16 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26110 |
KCH16,VCH16 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-26020 |
KCH16,VCH16 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
KCH16,VCH16 |
4 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
KCH16,VCH16 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
KCH16,VCH16 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
KCH16,VCH16 |
4 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26120 |
KCH16 |
2 | ||
| 48331-26121 |
KCH16,VCH16 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
KCH1#,RCH11,VCH1# |
2 | ||
| 48332A - BUMPER, FRONT SPRING, NO.3 | ||||
| 48332-26041 |
KCH16,VCH16 |
2 | ||
| 48332-26040 |
KCH16 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26040 |
KCH16,VCH16 |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26040 |
KCH16,VCH16 |
4 | ||
| Common parts | ||||
| 90101-14063 | ||||
| 90105-12200 | ||||
| 90105-14043 | ||||
| 90119-10832 | ||||
| 90170-16023 | ||||
| 90171-16005 | ||||
| 90252-04003 | ||||
| 90345-06014 | ||||
| 90520-29031 | ||||
| 94130-61200 | ||||
| 94531-01200 | ||||
| 94622-11400 | ||||
| 94622-11600 | ||||
