KCH16W-GFSQT (1995)
Toyota Granvia/Grand Hiace
(9608-9708) ; (9907- )VCH2#

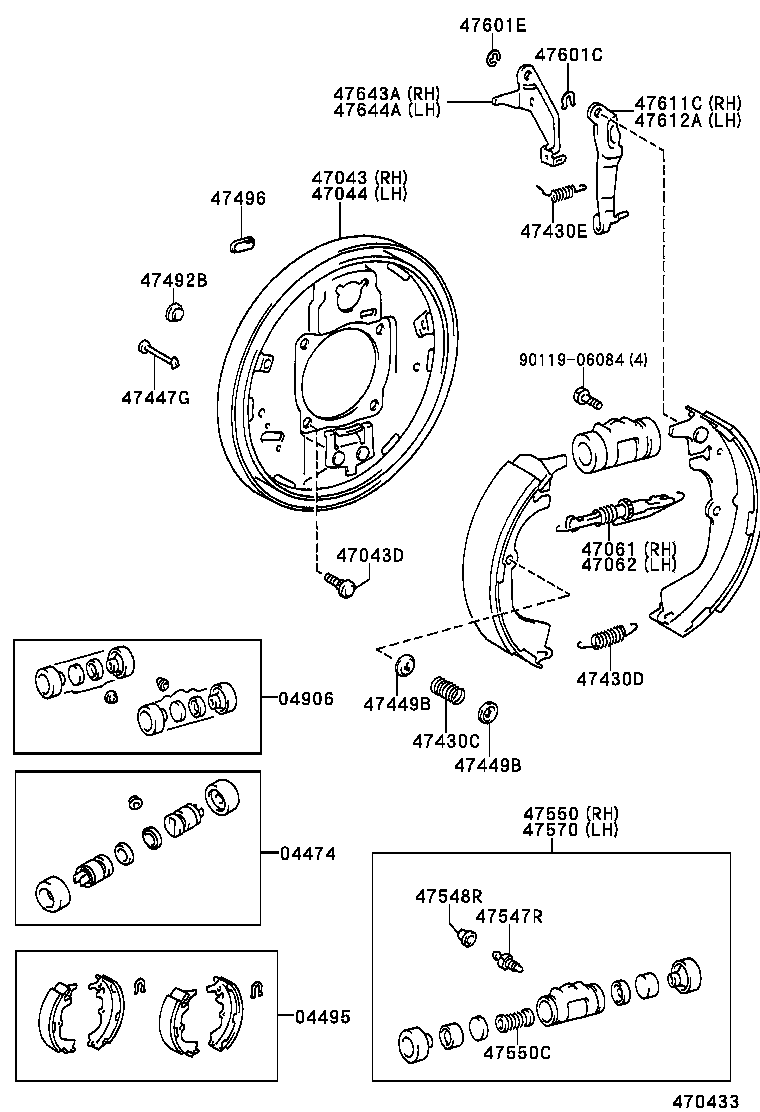

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-35070 |
KCH10,16,RCH11 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-26220 |
KCH1#,RCH11 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35140 |
KCH10,16,RCH11 |
1 | ||
| 04906-30060 |
KCH10,16,RCH11 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26160 |
KCH1#,RCH11 |
1 | ||
| 47043-26161 |
KCH1#,RCH11 |
1 | ||
| 47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90119-12296 |
KCH1#,RCH11 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26160 |
KCH1#,RCH11 |
1 | ||
| 47044-26161 |
KCH1#,RCH11 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
KCH1#,RCH11 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-35020 |
KCH1#,RCH11 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
KCH1#,RCH11 |
4 | ||
| 90501-20604 |
KCH1#,RCH11 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20070 |
KCH1#,RCH11 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-12036 |
KCH1#,RCH11 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
KCH1#,RCH11 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
KCH1#,RCH11 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
KCH1#,RCH11 |
8 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
KCH1#,RCH11 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
KCH1#,RCH11 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
KCH1#,RCH11 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
KCH1#,RCH11 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30100 |
KCH10,16,RCH11 |
1 | ||
| 47550-35180 |
KCH10,16,RCH11 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60009 |
KCH1#,RCH11 |
2 | ||
| 47509-35020 |
KCH10,16,RCH11 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-30100 |
KCH10,16,RCH11 |
1 | ||
| 47550-35180 |
KCH10,16,RCH11 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
KCH1#,RCH11 厚さ=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
KCH1#,RCH11 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-26050 |
KCH1#,RCH11 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-26050 |
KCH1#,RCH11 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-26010 |
KCH1#,RCH11 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-26010 |
KCH1#,RCH11 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
(9508-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-26220 |
KCH1#,RCH11 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35140 |
KCH10,16,RCH11 |
1 | ||
| 04906-30060 |
KCH10,16,RCH11 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-26160 |
KCH1#,RCH11 |
1 | ||
| 47043-26161 |
KCH1#,RCH11 |
1 | ||
| 47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90119-12296 |
KCH1#,RCH11 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-26160 |
KCH1#,RCH11 |
1 | ||
| 47044-26161 |
KCH1#,RCH11 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
KCH1#,RCH11 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-35020 |
KCH1#,RCH11 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
KCH1#,RCH11 |
4 | ||
| 90501-20604 |
KCH1#,RCH11 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20070 |
KCH1#,RCH11 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-12036 |
KCH1#,RCH11 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
KCH1#,RCH11 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
KCH1#,RCH11 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
KCH1#,RCH11 |
8 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
KCH1#,RCH11 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
KCH1#,RCH11 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-30030 |
KCH10,16,RCH11 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-30030 |
KCH10,16,RCH11 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
KCH1#,RCH11 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
KCH1#,RCH11 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30100 |
KCH10,16,RCH11 |
1 | ||
| 47550-35180 |
KCH10,16,RCH11 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60009 |
KCH1#,RCH11 |
2 | ||
| 47509-35020 |
KCH10,16,RCH11 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-30100 |
KCH10,16,RCH11 |
1 | ||
| 47550-35180 |
KCH10,16,RCH11 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
KCH1#,RCH11 厚さ=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
KCH1#,RCH11 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-26050 |
KCH1#,RCH11 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-26050 |
KCH1#,RCH11 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-26010 |
KCH1#,RCH11 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-26010 |
KCH1#,RCH11 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
