KCH12K-RRSDT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Aug 1997
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )KCH12

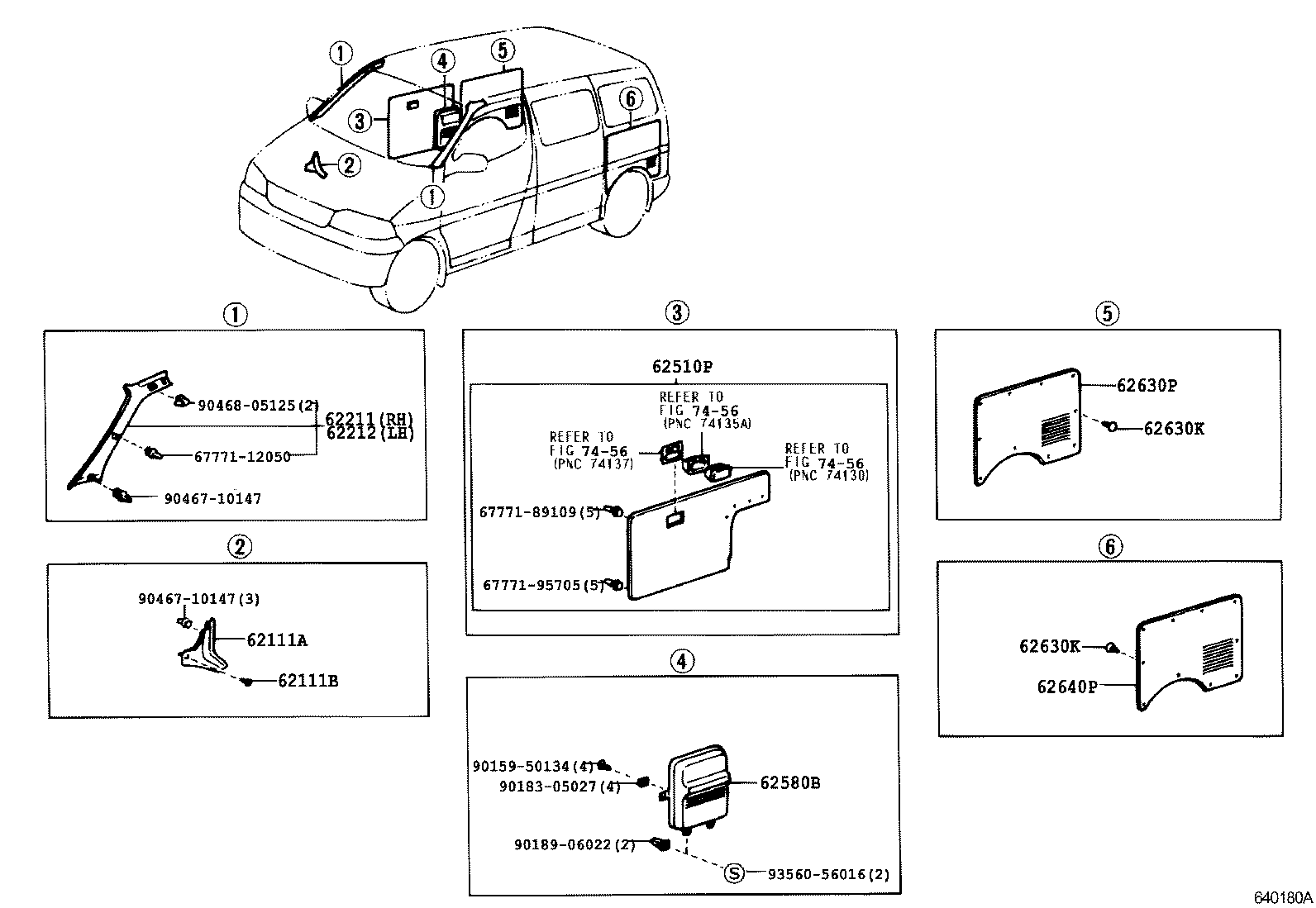

Click highlighted areas on diagram

diagram 62111A 62111B 62211 62212 62510P 62580B 62630K 62630K 62630P 62640P 6777112050 6777189109 6777195705 7456 7456 7456 9015950134 9018305027 9018906022 9046710147 9046710147 9046805125 9356056016
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62111-26010B0

KCH1#,RCH11

BLUISH GRAY,TRIM1#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-05080B0

KCH1#,RCH11

BLUISH GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-26010B0

KCH12

LT.BLUISH GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-26010B0

KCH12

LT.BLUISH GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-26260B0

KCH12

ｱﾘ(ﾋﾞﾙﾄ ｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),BLUISH GRAY,TRIM1#

 1
62510-26250B0

KCH12

BLUISH GRAY,TRIM1#

 1
62580B - BOARD ASSY, SIDE HEATER COVER, RH
62580-26020B0

KCH12

BLUISH GRAY,TRIM1#

 1
62630K - CLIP(FOR QUARTER TRIM REAR PANEL)
90467-10034N8

KCH12

CREAM YELLOW,TRIM1#

 20
62630K - CLIP(FOR QUARTER TRIM REAR PANEL)
90467-10034N8

KCH12

CREAM YELLOW,TRIM1#

 20
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-26030

KCH12

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-26080

KCH12

 1
Common parts
67771-12050
67771-89109
67771-95705
90159-50134
90183-05027
90189-06022
90467-10147
90468-05125
93560-56016
Linked diagrams
7456
