KCH12K-RRSDT (1995)
Toyota Granvia/Grand Hiace

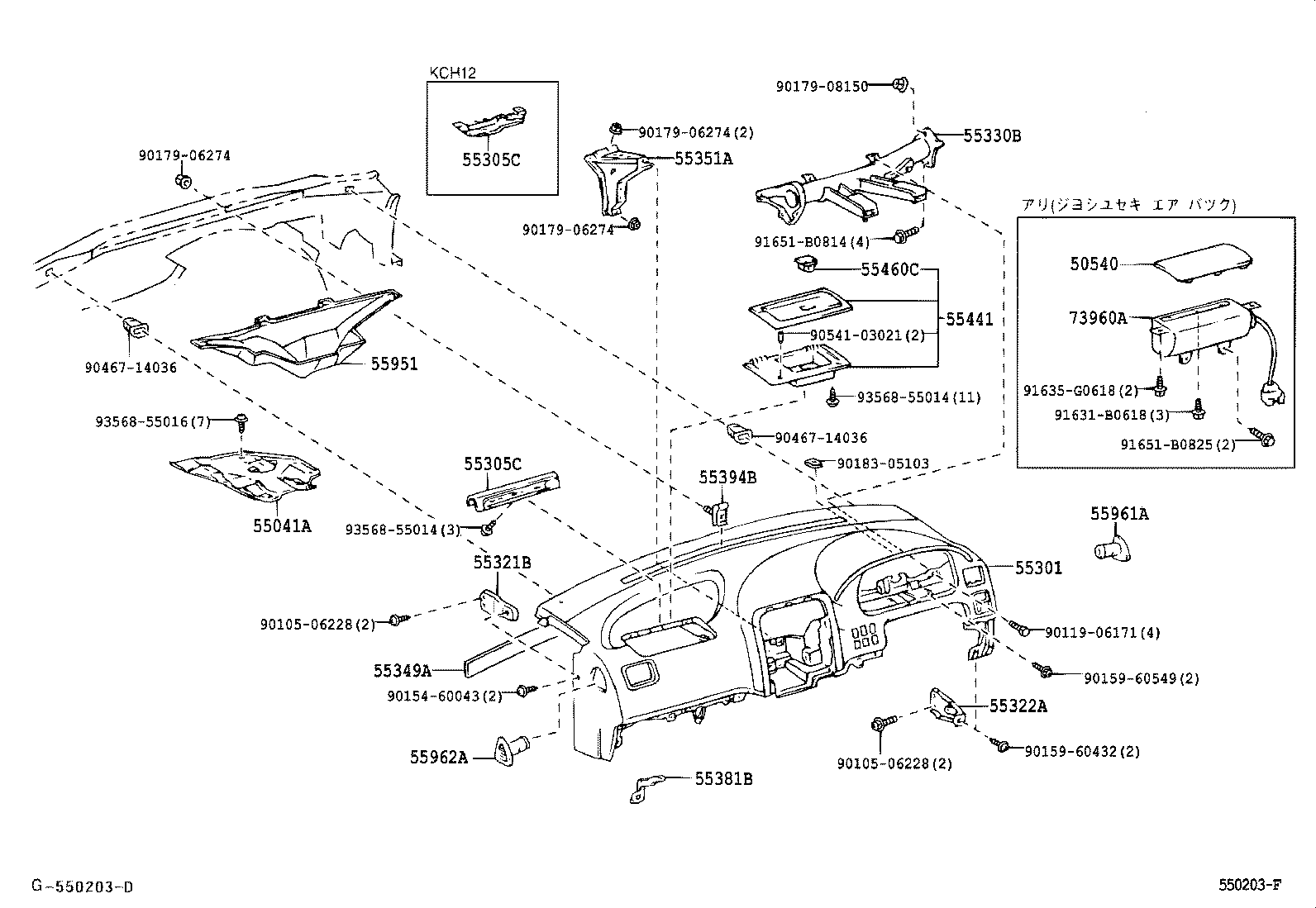

ILLUST NO. 1 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-26020B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-26060 |
KCH12 |
1 | ||
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-26060 |
KCH12 |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-26020 |
KCH1#,RCH11,VCH1# |
2 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-26090 |
KCH1#,RCH11 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-26010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-26020 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-26010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-26020B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-26010B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-26030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-26010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-26010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90119-06171 | ||||
| 90154-60043 | ||||
| 90159-60432 | ||||
| 90159-60549 | ||||
| 90179-06274 | ||||
| 90179-08150 | ||||
| 90183-05103 | ||||
| 90467-14036 | ||||
| 90541-03021 | ||||
| 91631-B0618 | ||||
| 91635-G0618 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

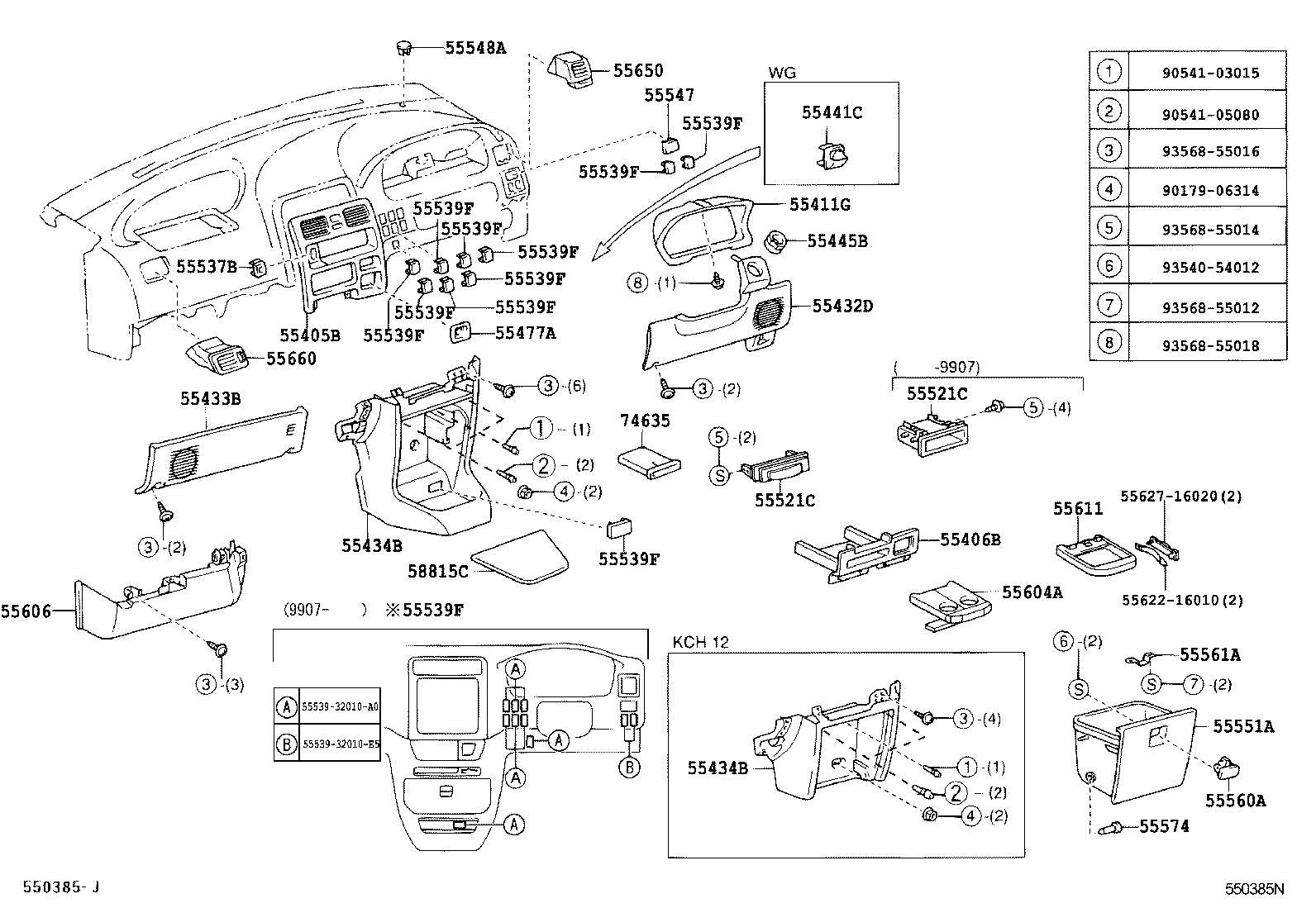

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-26010B0 |
KCH1#,RCH11 DK. BLUE GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-26300B0 |
KCH1#,RCH11 DK.BLUE GRAY,TRIM1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-26050B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-26050B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26070B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26070B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-95D00 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-26020B0 |
KCH1#,RCH11 DK.BLUE GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
VCH1#..G;KCH1#,RCH11 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
VCH1#..G;KCH1#,RCH11 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-26010B0 |
KCH1#,RCH11,VCH1#..DX,G BLUISH GRAY,TRIM1# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-26020B0 |
KCH12 BLUISH GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080B1 |
KCH1#,RCH11..DX,Q DK. BLUE GRAY,TRIM12 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-26010 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-26010 |
KCH1#,RCH11,VCH1# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-26040 |
KCH1#,RCH11,VCH1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-26030B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-26020B0 |
KCH1#,RCH11 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55622-16010 | ||||
| 55627-16020 | ||||
| 90179-06314 | ||||
| 90541-03015 | ||||
| 90541-05080 | ||||
| 93540-54012 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| 93568-55018 | ||||
