KCH10W-PRSQT (1999)

Toyota Granvia/Grand Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )1KZTE

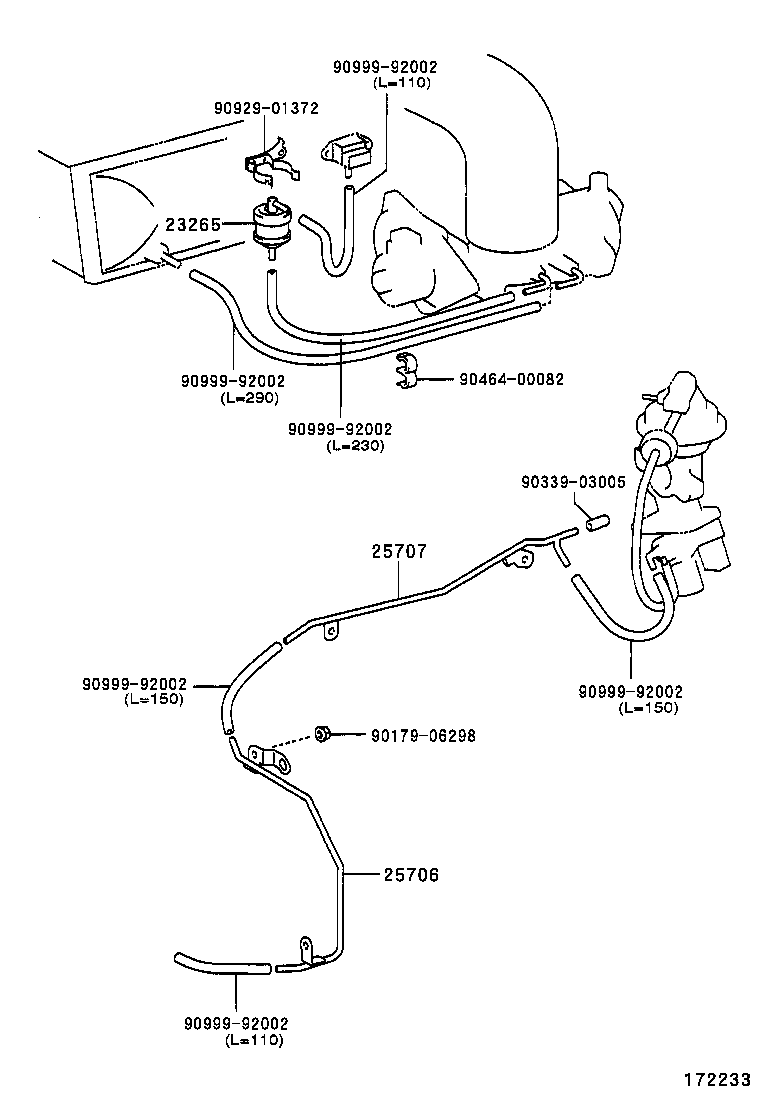

Click highlighted areas on diagram

diagram 23265 25706 25707 9017906298 9033903005 9046400082 9092901372 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1KZTE..KCH1#

 1
90917-11038

1KZTE..KCH1#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67010

1KZTE..KCH1#

 1
25706-67020

1KZTE..KCH1#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67010

1KZTE..KCH1#

 1
25707-67011

1KZTE..KCH1#

 1
Common parts
90179-06298
90339-03005
90464-00082
90929-01372
90999-92002
