KCH10W-PRSGT (2000)

Toyota Granvia/Grand Hiace

Production Apr 2000 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-0501)

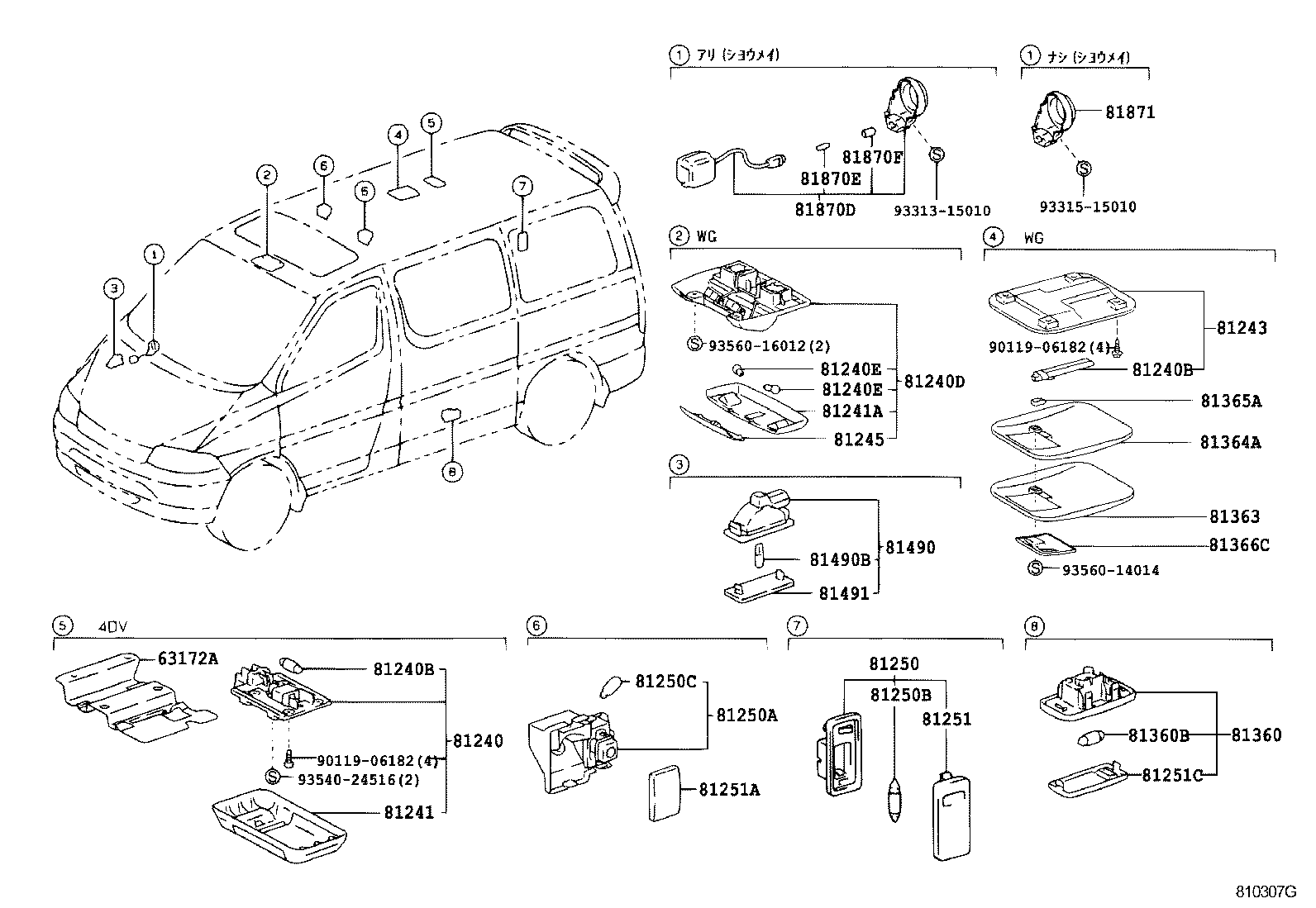

Click highlighted areas on diagram

diagram 63172A 81240 81240B 81240B 81240D 81240E 81240E 81241 81241A 81243 81245 81250 81250A 81250B 81250C 81251 81251A 81251C 81360 81360B 81363 81364A 81365A 81366C 81490 81490B 81491 81870D 81870E 81870F 81871 9011906182 9011906182 9331315010 9331515010 9354024516 9356014014 9356016012
Part # Description Qty Price
81240B - BULB, ROOM LAMP, NO.1
90981-11046

KCH10,16,RCH11,VCH1#

12V 13W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11046

KCH10,16,RCH11,VCH1#

12V 13W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-95J08B0

KCH10,16,RCH11

LT.BLUISH GRAY,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-12020

KCH10,16,RCH11,VCH1#

12V 8W

 2
81240E - BULB, ROOM LAMP, NO.2
90981-12020

KCH10,16,RCH11,VCH1#

12V 8W

 2
81241A - LENS, ROOM LAMP, NO.2
81241-95J08

KCH10,16,RCH11,VCH1#

 1
81243 - BODY, ROOM LAMP, NO.1
81243-26080B0

KCH10,16,RCH11

LT. BLUISH GRAY,TRIM1#

 1
81245 - COVER, ROOM LAMP, NO.2
81245-95J07B0

KCH10,16,RCH11,VCH1#

LT. BLUISH GRAY,TRIM1#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-13020B2

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
81250A - LAMP ASSY, SPOT
81290-26020B0

KCH10,16,RCH11

LT.BLUISH GRAY,TRIM1#,左側

 1
81250-26020B0

KCH10,16,RCH11

LT.BLUISH GRAY,TRIM1#,右側

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11021

KCH10,16,RCH11,VCH1#

12V 5W

 1
81250C - BULB, SPOT LAMP
99132-12050

KCH10,16,RCH11,VCH1#

12V 5W

 2
81251 - LENS, ROOM LAMP, NO.2
81251-12030

KCH10,16,RCH11,VCH1#

 1
81251A - LENS, SPOT LAMP
81251-26020

KCH10,16,RCH11,VCH1#

 2
81360 - LAMP ASSY, STEP OR SPOT
81250-95J05B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
81363 - LENS, ROOM LAMP, OUTER
81363-26010

KCH10,16,RCH11,VCH1#

 1
81364A - LENS, ROOM LAMP, INNER
81364-26010

KCH10,16,RCH11,VCH1#

 1
81365A - KNOB, ROOM LAMP SWITCH
81365-26010

KCH10,16,RCH11,VCH1#

 1
81366C - BASE, ROOM LAMP SWITCH
81366-26010B0

KCH10,16,RCH11

LT. BLUISH GRAY,TRIM1#

 1
81490 - LAMP ASSY, FOOT
81490-26010

KCH1#,VCH1#..G..5D

ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z)

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-26010

KCH10,16,RCH11

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

KCH10,16,RCH11,VCH1#

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

KCH10,16,RCH11

 1
Common parts
90119-06182
93313-15010
93315-15010
93540-24516
93560-14014
93560-16012
