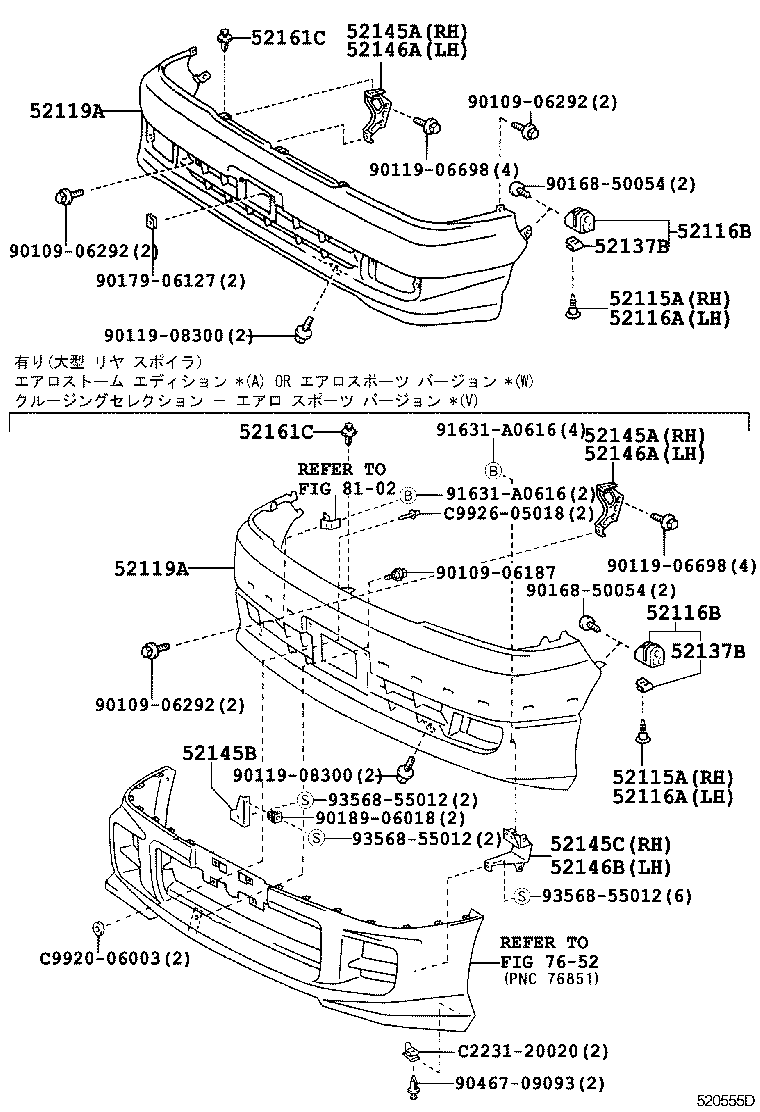

Toyota Granvia/grand hiace KCH10 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26040	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52115-26080	KCH1#,VCH1#,2#	07/1999 - 03/2000	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26040	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52115-26080	KCH1#,VCH1#,2#	07/1999 - 03/2000	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-26080	KCH1#,VCH1#,2#	07/1999 - 03/2000	1
52115-26040	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-26080	KCH1#,VCH1#,2#	07/1999 - 03/2000	1
52115-26040	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52116B - RETAINER, FRONT BUMPER
52116-26050	KCH1#,VCH1#,2#	07/1999 - 03/2000	2
52116B - RETAINER, FRONT BUMPER
52116-26050	KCH1#,VCH1#,2#	07/1999 - 03/2000	2
52119A - COVER, FRONT BUMPER
52119-26170B0	KCH10,16,RCH11..G BL.GRAY ME,182 ,2BA	08/1995 - 08/1996	1
52119-26180H0	KCH10,16,RCH11 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK. TEAL GREEN MC.,2BP	08/1995 - 08/1996	1
52119-26180B0	KCH10,16,RCH11..G ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BL.GRAY ME,182 ,2BA	08/1995 - 08/1996	1
52119-26170H0	KCH10,16,RCH11 DK. TEAL GREEN MC.,2BP	08/1995 - 08/1996	1
52119-26170G0	KCH10,16,RCH11..Q BLACKISH GREEN M,2AZ	08/1995 - 08/1997	1
52119-26180G0	KCH10,16,RCH11..Q ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLACKISH GREEN M,2AZ	08/1995 - 08/1997	1
52119-26380B1	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z),GRAY M.M.,2HZ	08/2001 - 04/2002	1
52119-26380B4	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z),DK.GRAY ME.,2FW	08/2001 - 04/2002	1
52119-26390E0	KCH1#,VCH1#..G..5D L ｴﾃﾞｲｼﾖﾝ *(Y) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BEIGE MC.ME.,2GW	04/2000 - 07/2001	1
52119-26390B3	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK.GRAY ME.,2FW	08/2001 - 04/2002	1
52119-26380G0	KCH1#,VCH1# GRAYISH BREEN M,2FY	07/1999 - 05/2002	1
52119-26380K0	KCH1#,VCH1# DK.GRAYISH PURPLE ME,2CJ	07/1999 - 05/2002	1
52119-26380E0	KCH1#,VCH1#..G..5D L ｴﾃﾞｲｼﾖﾝ *(Y),BEIGE MC.ME.,2GW	04/2000 - 07/2001	1
52119-26390B0	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAY ME.OP.,2BW	07/1999 - 05/2002	1
52119-26380B1	KCH1#,VCH1# GRAY M.M.,2FX	07/1999 - 05/2002	1
52119-26390B1	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAY M.M.,2HZ	08/2001 - 04/2002	1
52119-26380B2	KCH1#,VCH1#..G..5D SILVER ME.,1C0	04/2000 - 05/2002	1
52119-26380B0	KCH1#,VCH1# GRAY ME.OP.,2BW	07/1999 - 05/2002	1
52119-26390B1	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAY M.M.,2FX	07/1999 - 05/2002	1
52119-26390K0	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK.GRAYISH PURPLE ME,2CJ	07/1999 - 05/2002	1
52119-26380B4	KCH1#,VCH1#..QLTD DK.GRAY ME.,2FW	07/1999 - 05/2002	1
52119-26390B2	KCH1#,VCH1#..G..5D ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SILVER ME.,1C0	04/2000 - 05/2002	1
52119-26390B3	KCH1#,VCH1#..QLTD ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK.GRAY ME.,2FW	07/1999 - 05/2002	1
52119-26390G0	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAYISH BREEN M,2FY	07/1999 - 05/2002	1
52119A - COVER, FRONT BUMPER
52119-26170B0	KCH10,16,RCH11..G BL.GRAY ME,182 ,2BA	08/1995 - 08/1996	1
52119-26180H0	KCH10,16,RCH11 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK. TEAL GREEN MC.,2BP	08/1995 - 08/1996	1
52119-26180B0	KCH10,16,RCH11..G ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BL.GRAY ME,182 ,2BA	08/1995 - 08/1996	1
52119-26170H0	KCH10,16,RCH11 DK. TEAL GREEN MC.,2BP	08/1995 - 08/1996	1
52119-26170G0	KCH10,16,RCH11..Q BLACKISH GREEN M,2AZ	08/1995 - 08/1997	1
52119-26180G0	KCH10,16,RCH11..Q ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLACKISH GREEN M,2AZ	08/1995 - 08/1997	1
52119-26380B1	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z),GRAY M.M.,2HZ	08/2001 - 04/2002	1
52119-26380B4	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z),DK.GRAY ME.,2FW	08/2001 - 04/2002	1
52119-26390E0	KCH1#,VCH1#..G..5D L ｴﾃﾞｲｼﾖﾝ *(Y) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BEIGE MC.ME.,2GW	04/2000 - 07/2001	1
52119-26390B3	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK.GRAY ME.,2FW	08/2001 - 04/2002	1
52119-26380G0	KCH1#,VCH1# GRAYISH BREEN M,2FY	07/1999 - 05/2002	1
52119-26380K0	KCH1#,VCH1# DK.GRAYISH PURPLE ME,2CJ	07/1999 - 05/2002	1
52119-26380E0	KCH1#,VCH1#..G..5D L ｴﾃﾞｲｼﾖﾝ *(Y),BEIGE MC.ME.,2GW	04/2000 - 07/2001	1
52119-26390B0	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAY ME.OP.,2BW	07/1999 - 05/2002	1
52119-26380B1	KCH1#,VCH1# GRAY M.M.,2FX	07/1999 - 05/2002	1
52119-26390B1	KCH1#,VCH1#..G..5D ﾌﾟﾗｲﾑｾﾚｸｼﾖﾝ *(Z) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAY M.M.,2HZ	08/2001 - 04/2002	1
52119-26380B2	KCH1#,VCH1#..G..5D SILVER ME.,1C0	04/2000 - 05/2002	1
52119-26380B0	KCH1#,VCH1# GRAY ME.OP.,2BW	07/1999 - 05/2002	1
52119-26390B1	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAY M.M.,2FX	07/1999 - 05/2002	1
52119-26390K0	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK.GRAYISH PURPLE ME,2CJ	07/1999 - 05/2002	1
52119-26380B4	KCH1#,VCH1#..QLTD DK.GRAY ME.,2FW	07/1999 - 05/2002	1
52119-26390B2	KCH1#,VCH1#..G..5D ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SILVER ME.,1C0	04/2000 - 05/2002	1
52119-26390B3	KCH1#,VCH1#..QLTD ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK.GRAY ME.,2FW	07/1999 - 05/2002	1
52119-26390G0	KCH1#,VCH1# ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),GRAYISH BREEN M,2FY	07/1999 - 05/2002	1
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	2
52137B - PLATE, FRONT BUMPER BRACKET, NO.1
52137-26020	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	2
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-26020	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-26020	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-26020	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-26020	KCH1#,RCH11,VCH1#	08/1995 - 07/1999	1
52161C - PIECE, FRONT BUMPER
90467-09143	KCH1#,VCH1#,2#	07/1999 - 02/2000	3
52161-44010C0	KCH1#,VCH1#..5D BLACK,2BW ,2CJ ,2FW ,2FX ,2FY	02/2000 - 03/2000	3
52161C - PIECE, FRONT BUMPER
90467-09143	KCH1#,VCH1#,2#	07/1999 - 02/2000	3
52161-44010C0	KCH1#,VCH1#..5D BLACK,2BW ,2CJ ,2FW ,2FX ,2FY	02/2000 - 03/2000	3
Common parts
90109-06187
90109-06292
90119-06698
90119-08300
90168-50054
90179-06127
90189-06018
90467-09093
91631-A0616
93568-55012
C2231-20020
C9920-06003
C9926-05018
Linked diagrams
7652
8102

KCH10W-PFSQT (1999)

(9907- )
